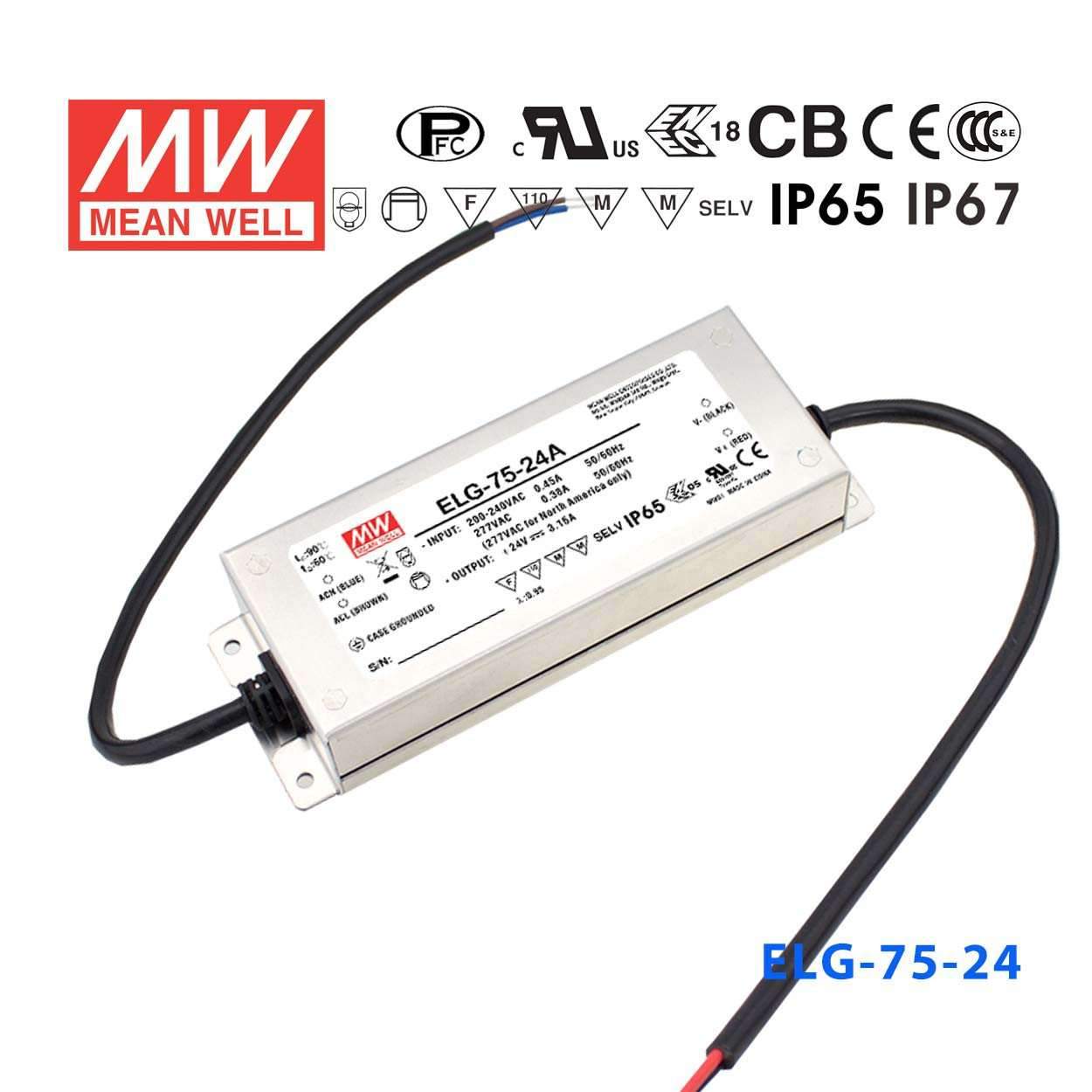

Mean Well ELG-75-24D2 AC-DC Single output LED Driver Mix Mode (CV+C...
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming methods does the ELG-75-24D2 support?
The 'D2' suffix designates support for 0–10V analog and PWM dimming signals. These are common in commercial building automation and lighting control systems, making the ELG-75-24D2 a good fit for projects that use TRIAC-based or 0–10V dimmer switches.
Can I use the ELG-75-24D2 for landscape or garden path lighting outdoors?
Yes. Its IP67 waterproof rating and -40°C to +90°C operating range allow it to be installed in outdoor enclosures subject to rain, condensation, and temperature extremes. At 75W and 24V it can supply several 24V low-voltage landscape fixtures.
How many meters of 24V LED strip can the ELG-75-24D2 power?
The driver delivers 75W at 24V. For a strip rated at 10W/m, that yields up to 7.5 meters; for a high-output strip at 15W/m, the maximum run is about 5 meters. Always verify your strip's watt-per-meter rating and keep the total load within 75W.
Is the ELG-75-24D2 a good choice for museum or gallery track lighting that needs precise dimming?
Yes. The 0–10V input provides smooth, precise analog dimming suitable for gallery and museum environments where flicker-free, consistent output is important. The 75W capacity can handle a small cluster of 24V track or display fixtures.
Can the ELG-75-24D2 power 24V LED modules used in channel letter signs?
Yes. Channel letter signs commonly use 24V LED modules, and the ELG-75-24D2 can supply up to 75W worth of those modules. The IP67 rating also makes it suitable for externally mounted sign power supplies where weather exposure is a concern.
Does the ELG-75-24D2 work on a 277V commercial circuit?
Yes. The 100–305VAC universal input range covers 277V single-phase commercial wiring without any configuration changes, making it convenient for US commercial lighting installations.
