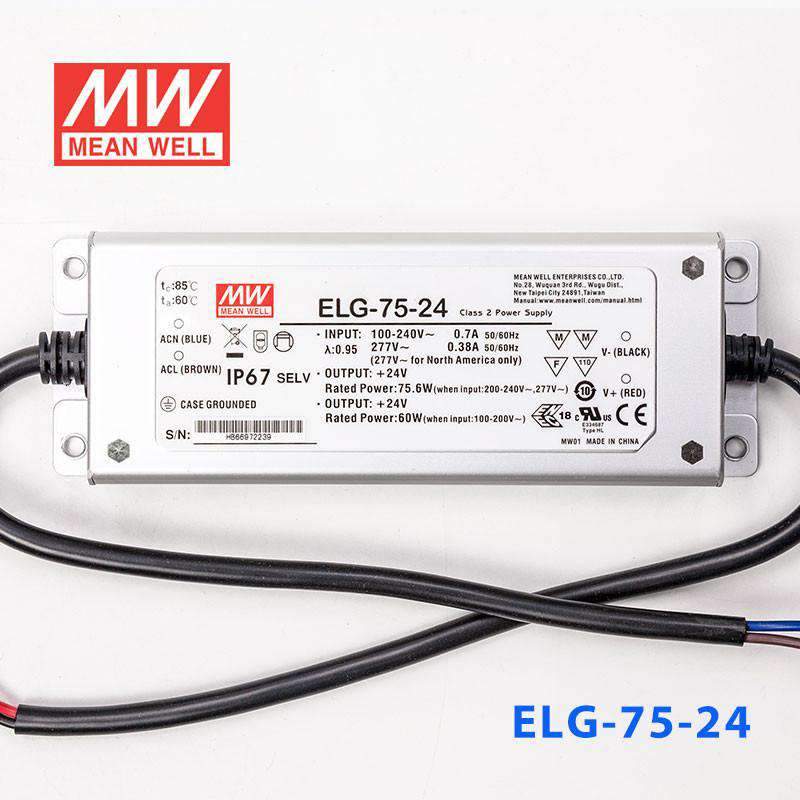

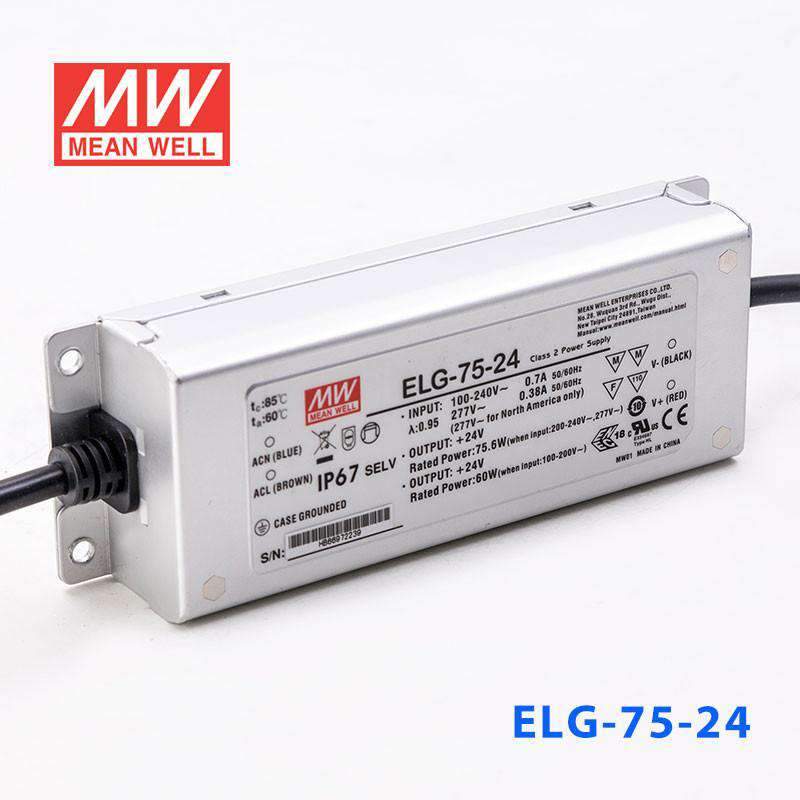

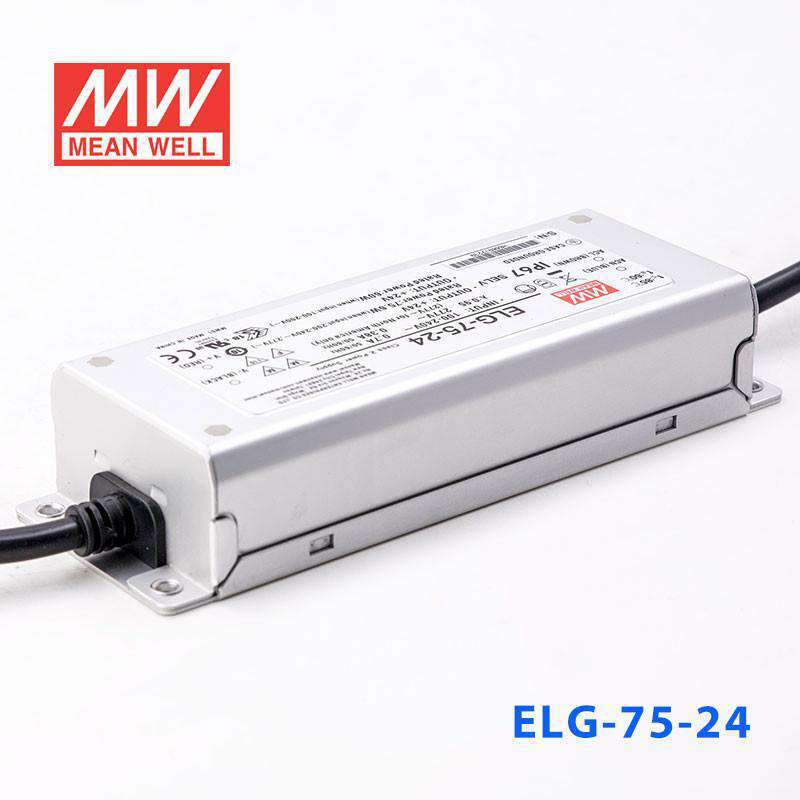

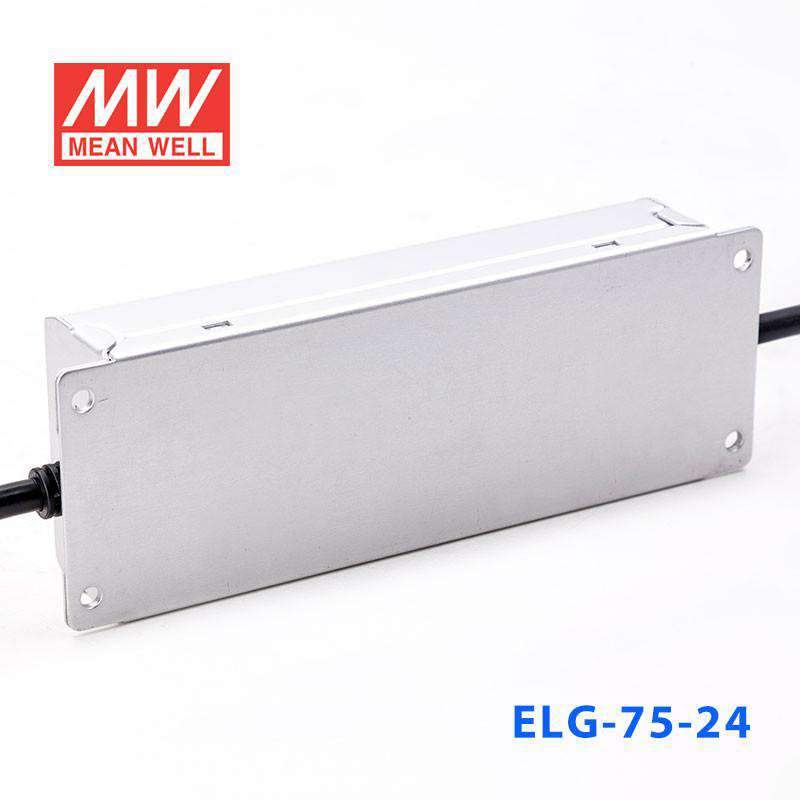

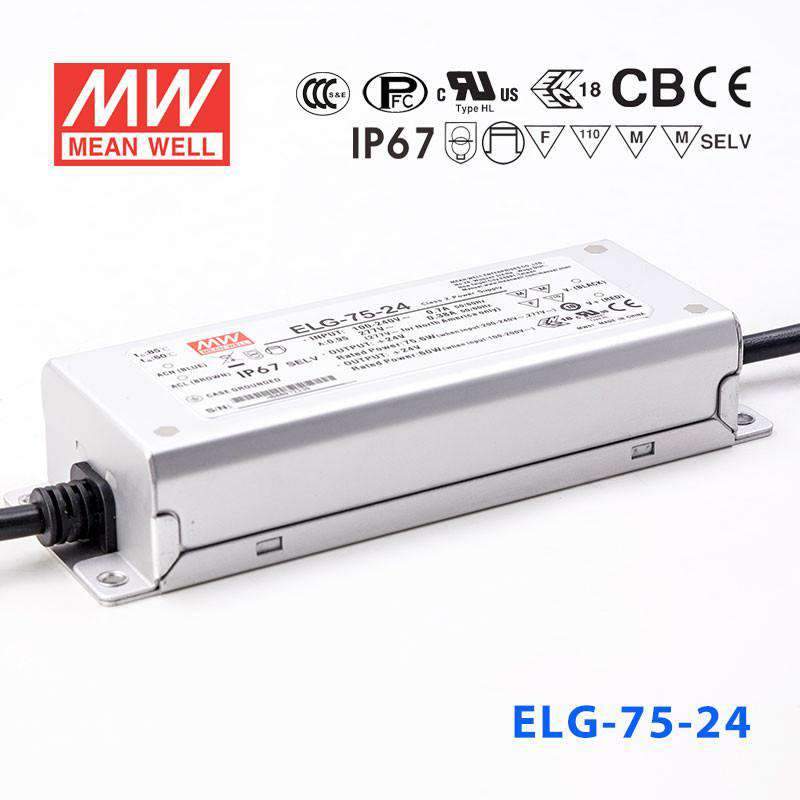

Mean Well ELG-75-24 Power Supply 75W 24V
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-75-24 power 24V LED strip in an outdoor architectural lighting installation?
Yes. The ELG-75-24 is rated IP67, so it withstands rain, condensation, and temporary water immersion. Its 75.6W output at 24V is suited to outdoor facade accent strips, pergola lighting, or illuminated sign boxes where the driver may be mounted in an exposed enclosure.
Is the ELG-75-24 waterproof enough for use in a wet or damp exterior location?
Yes. IP67 protection means the enclosure is completely dust-tight and can withstand immersion in up to 1 m of water for 30 minutes. This covers rain-exposed sign cabinets, landscape fixtures, and exterior-mounted LED luminaires.
How many meters of 24V LED strip can the ELG-75-24 support?
The ELG-75-24 provides 75.6W at 24V. For a 14.4 W/m strip that is approximately 5.25 meters; for a 10 W/m strip, up to 7.5 meters. Divide 75.6W by your strip's rated power per meter and apply a 20% derating margin for sustained operation.
Can the ELG-75-24 be used for 24V LED strip in retail cove or valance lighting?
Yes. The 24V output and 75.6W power rating suit concealed cove and valance lighting runs commonly used in retail and hospitality interiors. The wide AC input range (100–305VAC) accommodates both 120V and 277V branch circuits found in commercial buildings.
Is the ELG-75-24 suitable for 24V LED lighting in a cold-chain or freezer storage environment?
Yes. The operating temperature range of -40°C to +85°C covers freezer and cold-chain temperatures encountered in food-storage facilities. The IP67 metal case tolerates condensation that forms when warm air contacts cold surfaces.
Does the ELG-75-24 operate on both 120V and 240V mains supplies?
Yes. The ELG-75-24 accepts a universal AC input of 100–305VAC, making it compatible with 120V North American circuits, 230V European circuits, and 277V commercial branch circuits without any manual voltage switching.
