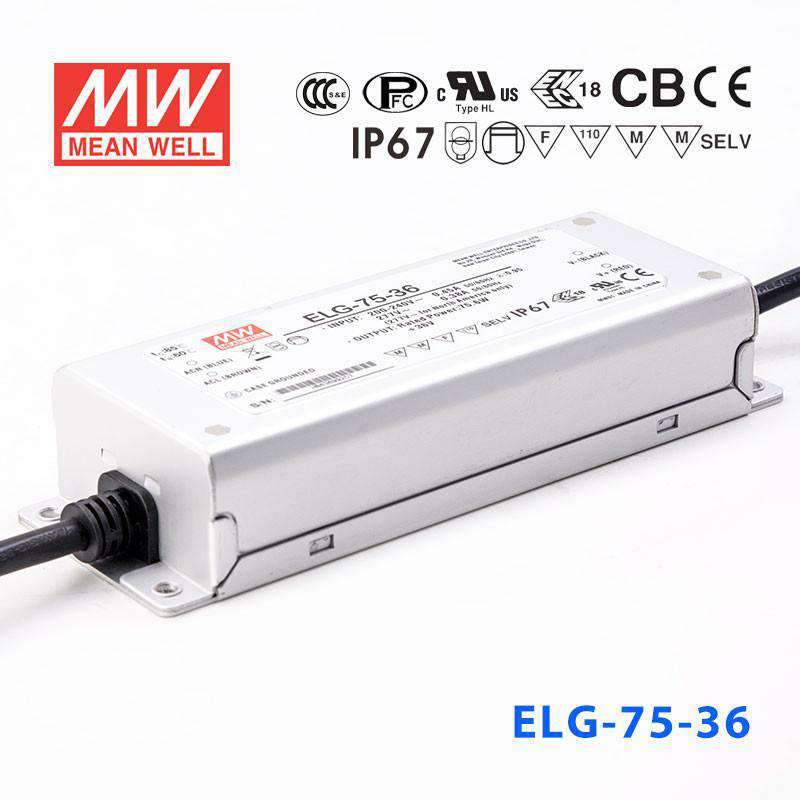

Mean Well ELG-75-36AB Power Supply 75W 36V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-75-36AB Power Supply 75W 36V - Adjustable and Dimmable
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the difference between the ELG-75-36A and the ELG-75-36AB?
Both models have the same electrical ratings — 75.6W, 36V, 2.1A — and include an output trimmer for adjusting voltage and current. The ELG-75-36AB additionally supports 3-in-1 dimming (0–10V, PWM, and resistance), while the ELG-75-36A has only the fixed potentiometer trim with no dynamic dimming input.
Can I install the ELG-75-36AB in an outdoor application that requires dimming?
The ELG-75-36AB is rated IP65, which protects against dust and low-pressure water jets, making it suitable for covered outdoor or weather-protected enclosures. The 3-in-1 dimming interface (0–10V, PWM, resistance) can be connected to an outdoor-rated dimmer controller for dynamic brightness adjustment.
How much 36V LED strip can be connected to the ELG-75-36AB?
The ELG-75-36AB delivers 75.6W at 36V. For strip rated at 10W/m the maximum run is about 7.5 meters; for 14.4W/m strip the limit is approximately 5.2 meters. Always confirm the strip's rated watt-per-meter value to stay within the driver's 75.6W capacity.
Is the ELG-75-36AB a good choice for dimmable LED signage with a 3-in-1 dimmer controller?
Yes. The 'AB' suffix confirms support for 0–10V, PWM, and resistance dimming signals, which are the three interfaces covered by most 3-in-1 dimmer modules on the market. At 36V and 75.6W it can supply a single sign cabinet or a short section of 36V LED modules.
Can the ELG-75-36AB power dimmable 36V LED strip in a retail display with adjustable brightness?
Yes. Retail displays that require adjustable brightness throughout the day are well served by the ELG-75-36AB's 3-in-1 dimming capability. The built-in output trimmer also allows initial calibration during setup.
Does the ELG-75-36AB work on US 277V commercial branch circuits?
Yes. The 100–305VAC universal input covers 277V single-phase circuits without any modification, so the driver can be installed directly on US commercial lighting branch circuits.
