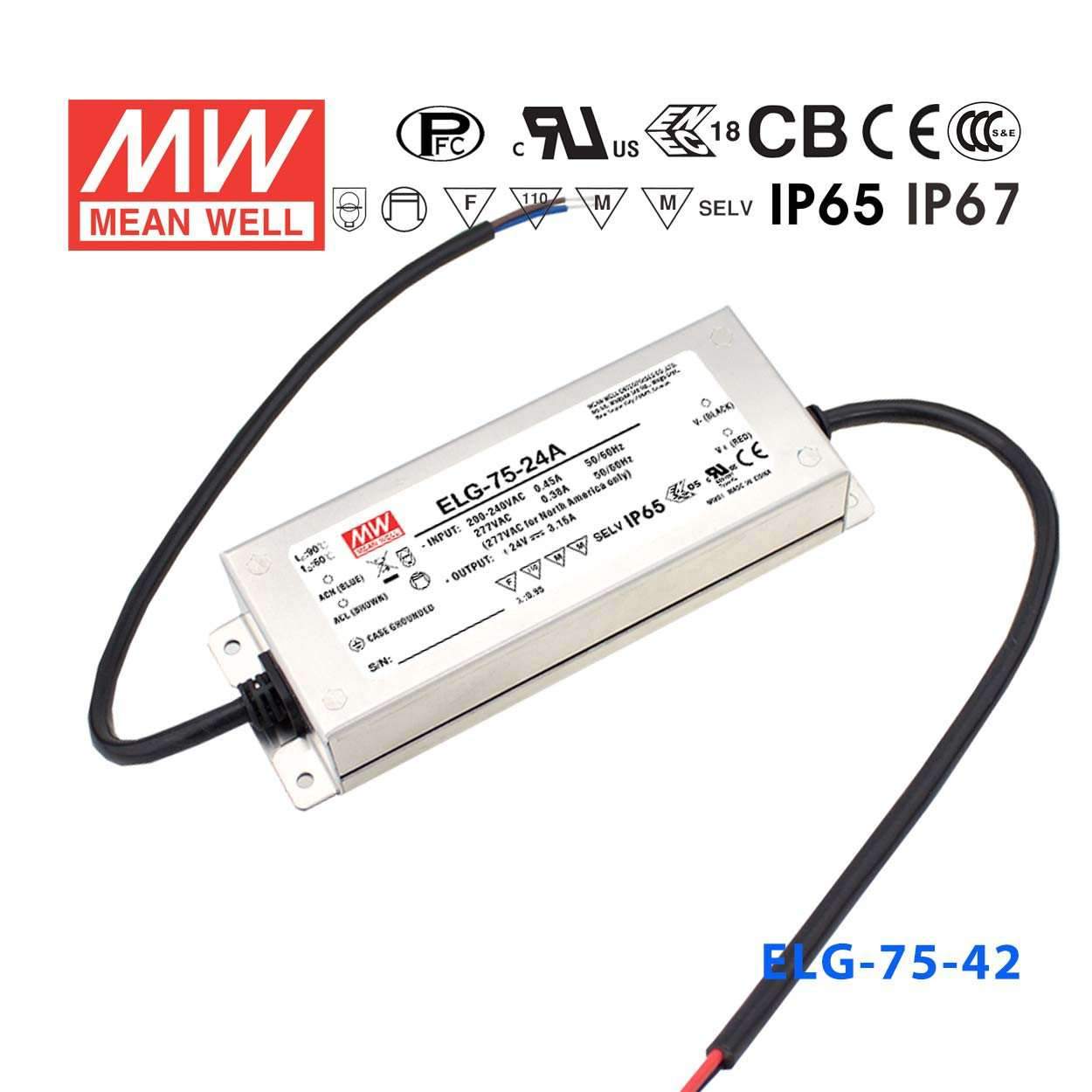

Mean Well ELG-75-42 Power Supply 75W 42V
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage42 Volt
-
Rated Current1.8 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-

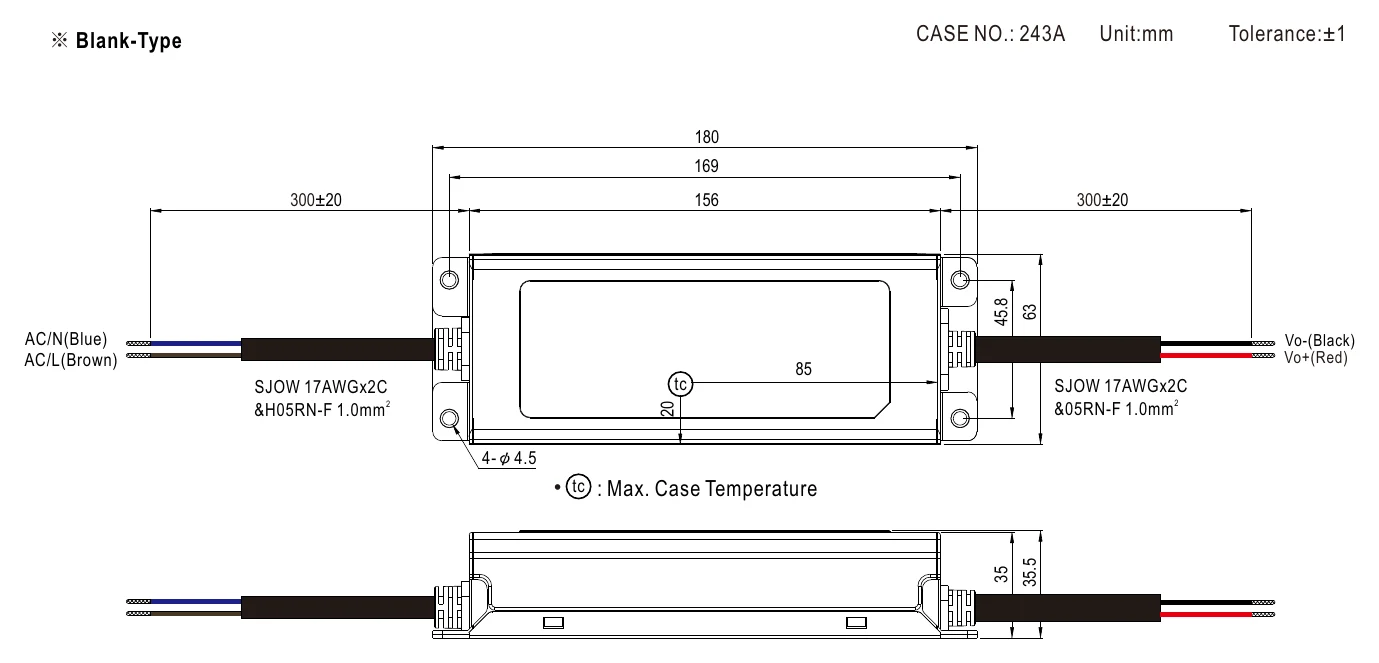

Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-75-42 power 42V LED strips outdoors?
Yes. The ELG-75-42 is rated IP67, making it suitable for outdoor installations where rain and moisture are present. It operates from -40°C to +85°C, covering a wide range of outdoor climates and enclosure conditions.
How many meters of 42V LED strip can the ELG-75-42 support?
The ELG-75-42 delivers 75.6W at 42V. Dividing 75.6W by your strip's rated wattage per meter gives estimated maximum length—for example, a 10 W/m strip allows about 7.5 meters, and a 12 W/m strip about 6.3 meters. Always verify your strip's power per meter and apply a 20% safety derating.
Is the ELG-75-42 suitable for powering LED modules in an outdoor illuminated sign?
Yes. With 75.6W at 42V, IP67 waterproofing, and a wide 100–305VAC input range, the ELG-75-42 is a practical driver for medium-sized outdoor LED sign cabinets. Its metal case provides durable protection in exposed installations.
Can I use the ELG-75-42 for landscape or pathway LED lighting?
Yes. The IP67 rating and -40°C to +85°C operating range make this driver suited to buried or surface-mounted outdoor landscape fixtures using 42V LED modules. Constant-current operation helps maintain consistent brightness across temperature changes.
Does the ELG-75-42 support dimming?
No. The base ELG-75-42 does not include a dimming interface. If dimming is required, the series includes the 'A' variant with output adjustment, the 'B' with 3-in-1 dimming, the 'AB' combining both, the 'D2' with DALI 2, and the 'DA' with DALI. All share the same 75.6W / 42V / 1.8A output.
What input voltage range does the ELG-75-42 accept?
The ELG-75-42 accepts 100–305VAC, covering standard 120V (North America), 230V (Europe), and 277V (US commercial) mains without any manual voltage selection. This universal input simplifies procurement for projects in multiple regions.
