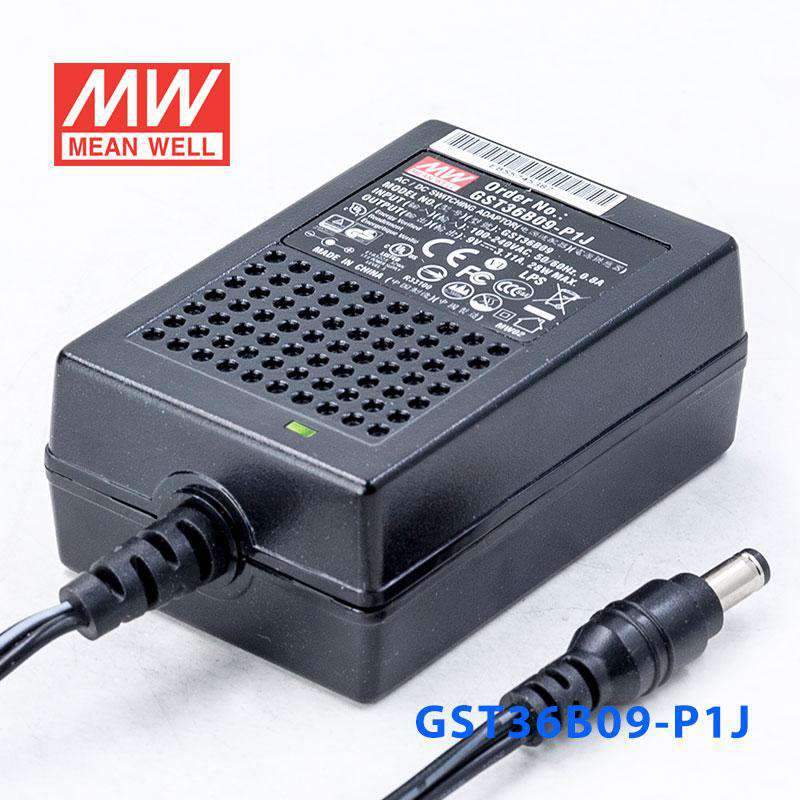

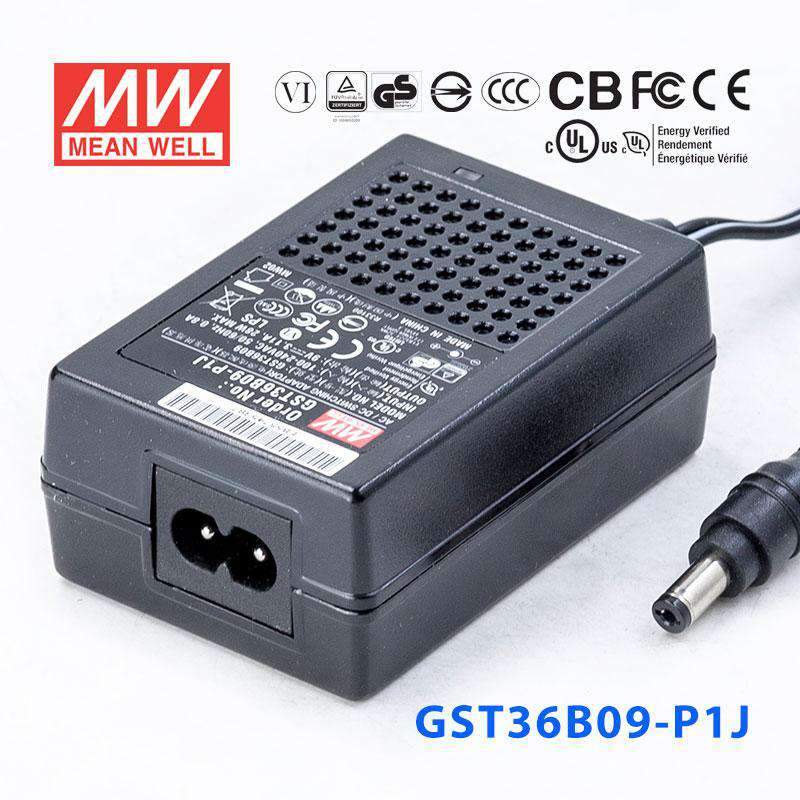

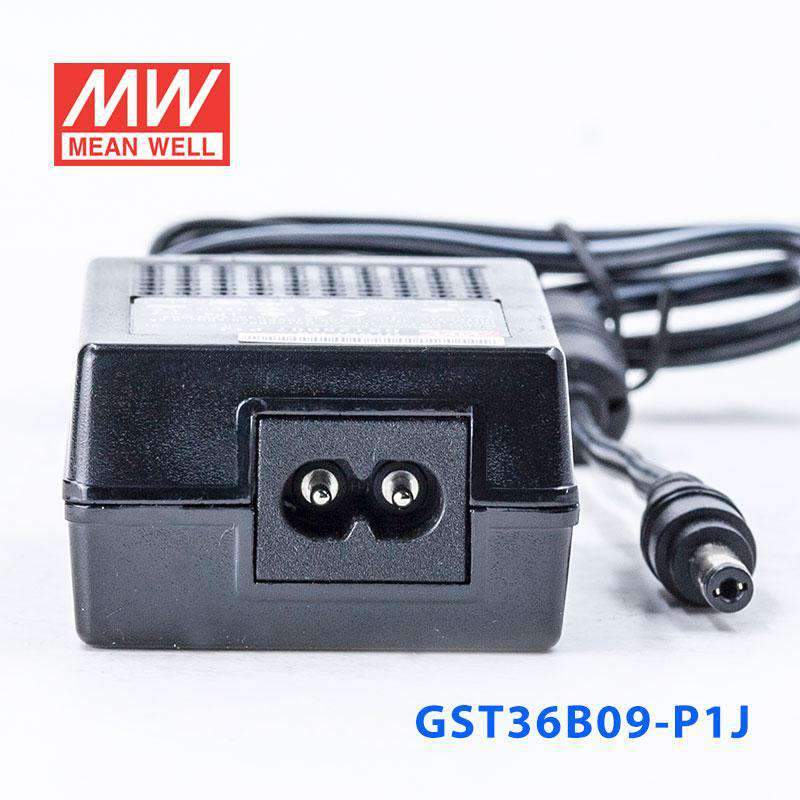

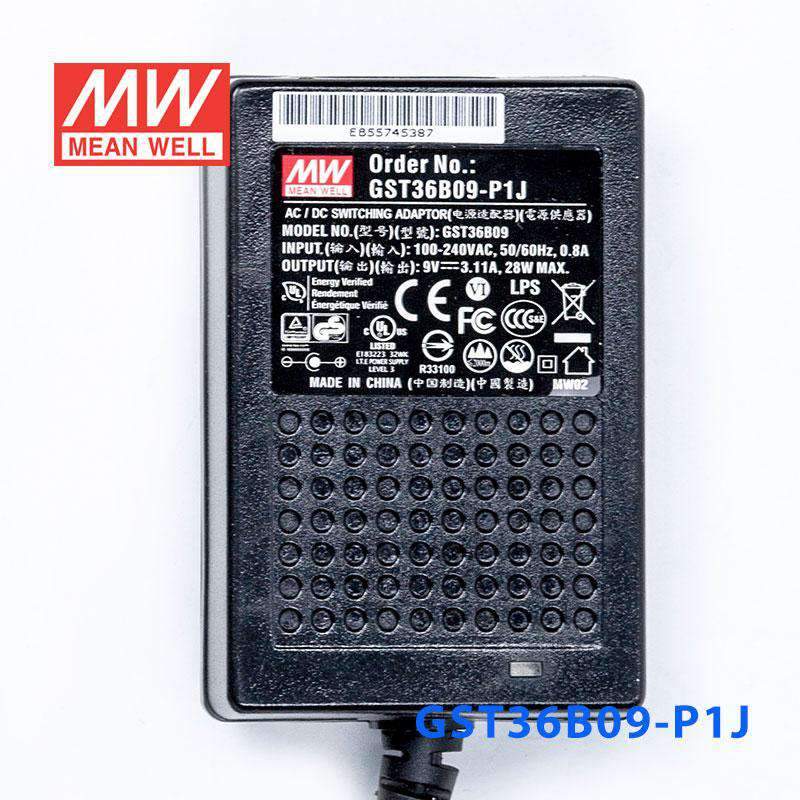

Mean Well GST36B09-P1J Power Supply 28W 9V
The GST36B09 is a 36W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1 ,PSE J60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating28 Watt
-
Output Voltage9 Volt
-
Rated Current3.11 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
Can I use the GST36B09-P1J for a 9V embedded system or controller?
Yes, it can fit embedded systems that require constant-voltage 9V DC input. This model provides 28W total with up to 3.11A output current, so the connected 9V load needs to stay within that range.
Is this model suitable for 9V industrial interface or monitoring devices?
It can be suitable for lower-power industrial interface, monitoring, or control devices designed for 9V constant-voltage input. The 85-264VAC input range is also useful when the AC source varies by site or region.
Would the GST36B09-P1J work for bench instrumentation or electronics development?
Yes, it can be used where a regulated 9V supply is needed for bench electronics, prototypes, or test fixtures. Its 28W output and 3.11A current capacity make it a better match for moderate 9V loads than very small wall adapters.
Can this power supply run compact 9V automation accessories?
It can run compact 9V automation accessories that are specified for constant-voltage operation. The main sizing check is whether the total 9V load stays within 28W and 3.11A.
Can the GST36B09-P1J be used in outdoor or temperature-variable locations?
The specified operating temperature range is -30C to +70C, so it is rated for broad temperature conditions. The provided specs do not list an IP rating, so exposed outdoor use or wet locations should not be assumed.
