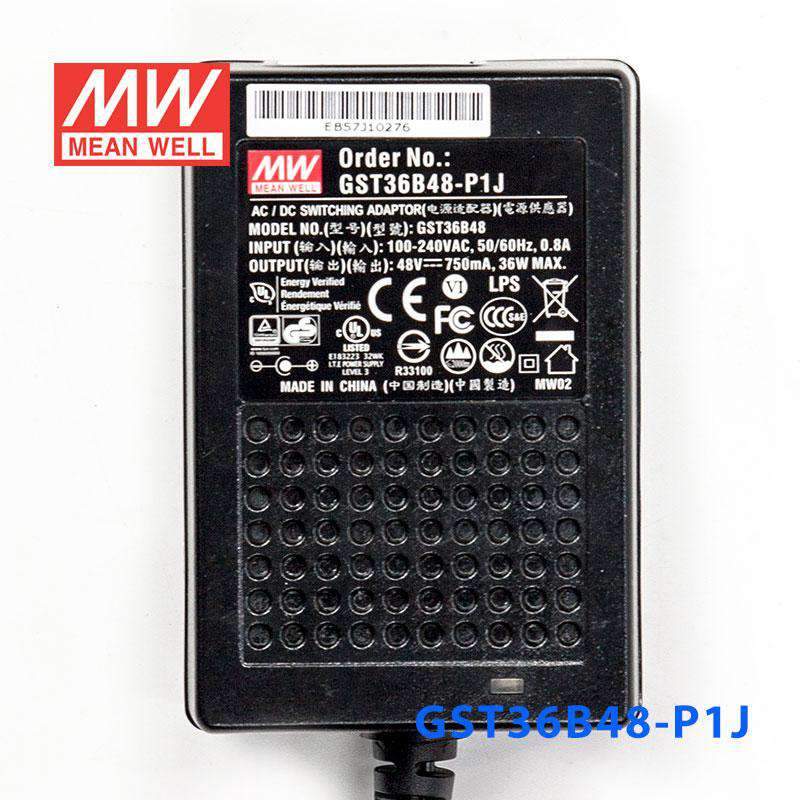

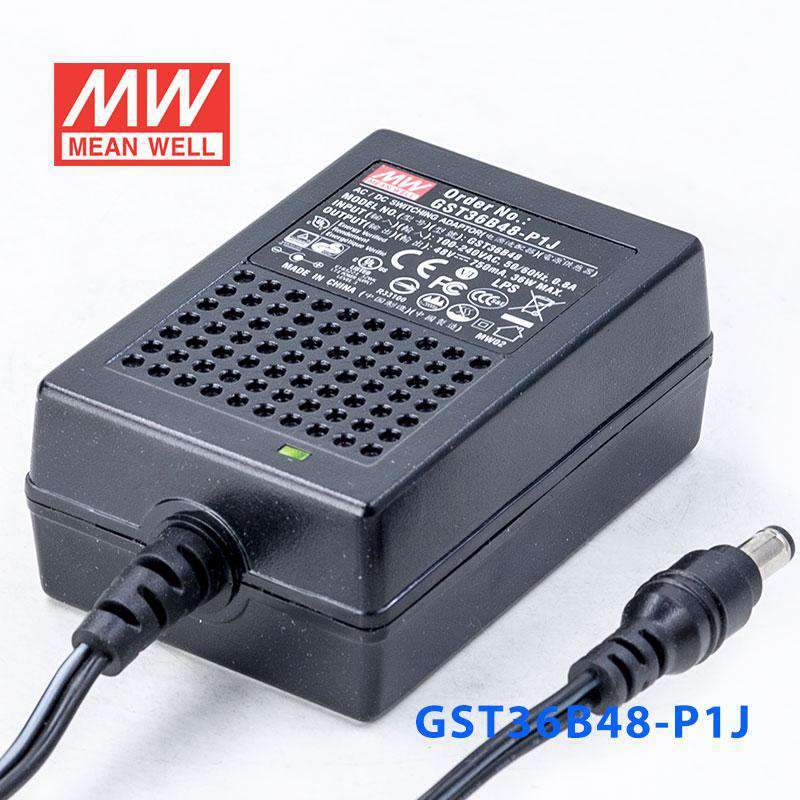

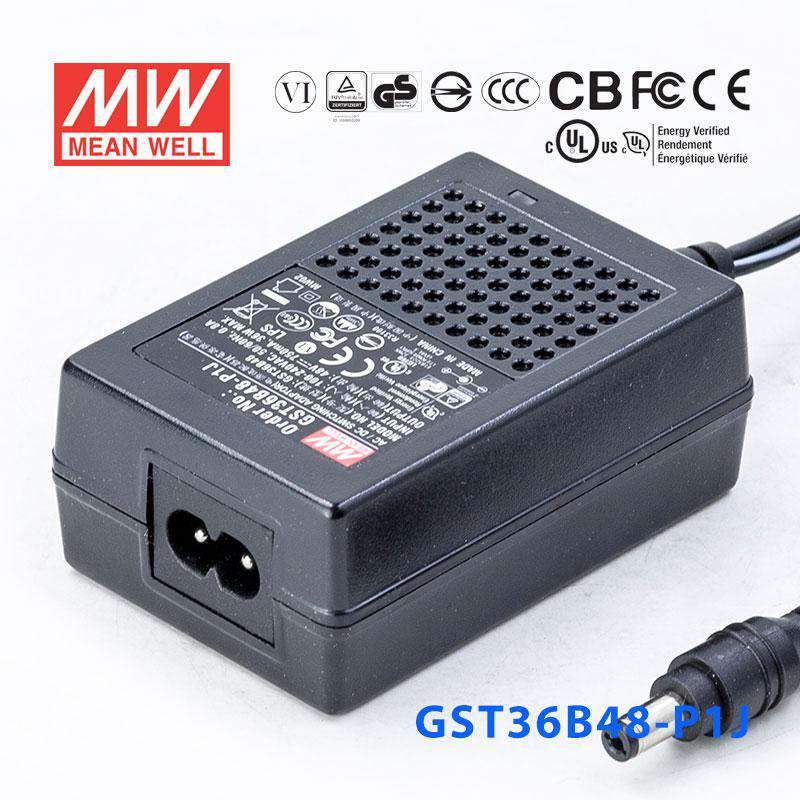

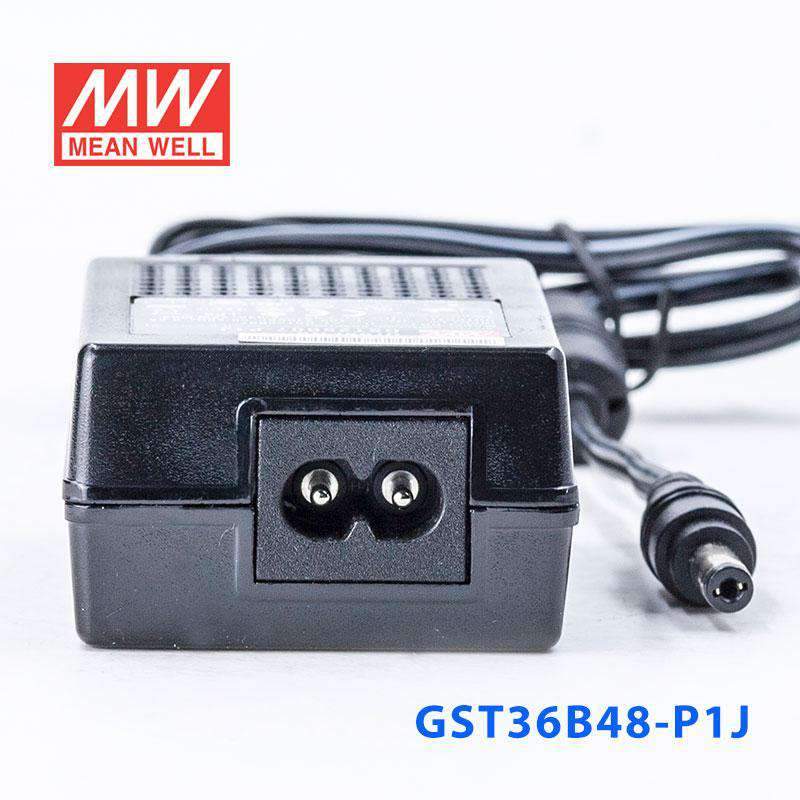

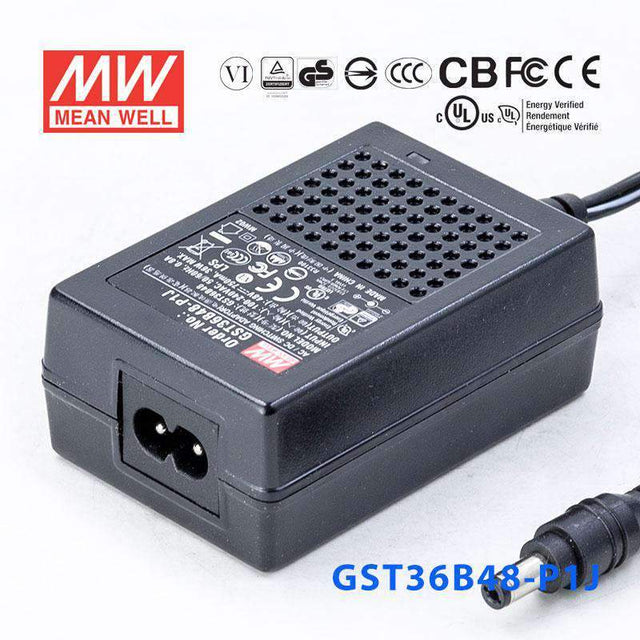

Mean Well GST36B48-P1J Power Supply 36W 48V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.075W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant for A/U type |
| 2 pole USA / EURO plug or IEC320-C14/C8 |
| Class II power (with earth pin) only |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage, clamp by zener diode |
| Withstand voltage | I/P-O/P: 4242VDC |
| Working temperature | -40~+85°C (refer to output derating curve ) |
| Safety standards | UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2468 16AWG |
| Dimension (LxWxH) | 79x 54x 33 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating36 Watt
-
Output Voltage48 Volt
-
Rated Current0.75 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST36B48-P1J for a 48V industrial control load?
Yes, if the equipment requires constant 48V and draws no more than 0.75A. This unit is rated for 36W total output, so it is suited to lower-power 48V control and automation loads within that limit.
Is this power supply appropriate for 48V telecom or network equipment?
It can be appropriate for 48V devices that accept a constant-voltage input and stay within 36W. The maximum output current is 0.75A, so the connected load needs to remain at or below that value.
Can the GST36B48-P1J power a 48V embedded system or OEM module?
Yes, for 48V embedded or OEM equipment that needs a regulated constant-voltage source. The output is 48V at up to 0.75A, with a total power rating of 36W.
Is the GST36B48-P1J a fit for low-power 48V automation devices?
It is designed for constant 48V output and can support low-power automation devices that stay within 0.75A. That makes it more suitable for lighter 48V loads rather than higher-current equipment.
Can this 48V adapter be used in indoor-only or outdoor installations?
The stated operating temperature range is -30°C to +70°C, so temperature tolerance is broad. However, no IP rating is provided in the specs, so outdoor exposure is not defined by the listed data.
