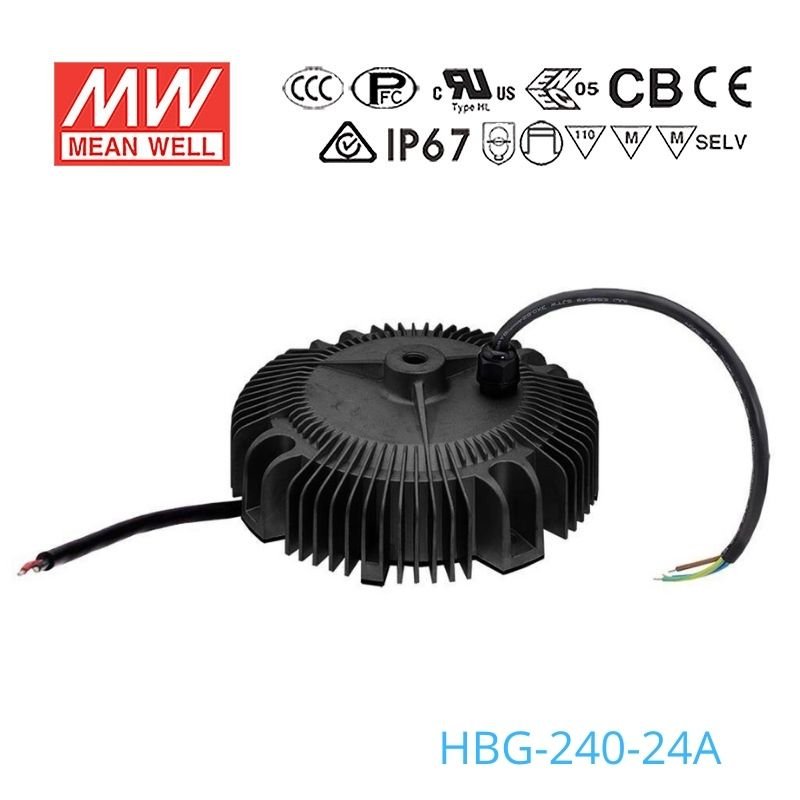

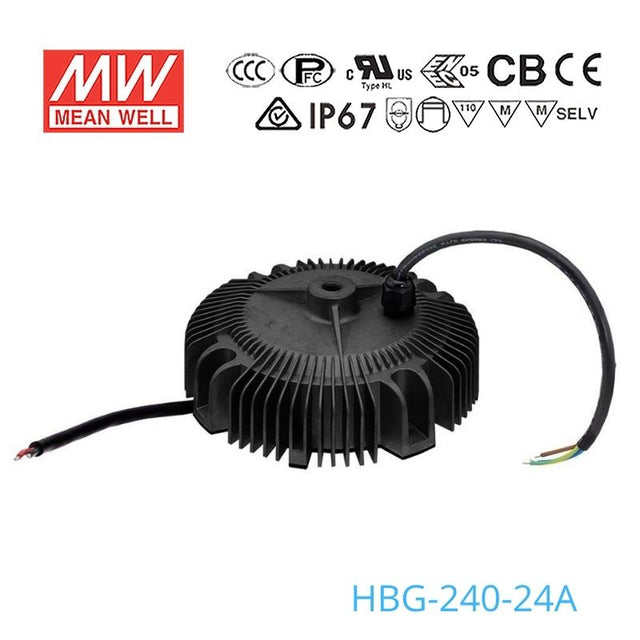

Mean Well HBG-240-24A Power Supply 240W 24V - Adjustable
Description
Description
Features
| Constant Voltage + Constant current mode output |
| Circular plastic housing with class I design |
| Built-in active PFC function |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~431VDC |
| AC inrush current (max.) | Cold start, 75A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+75°C |
| Safety standards | UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | ψ191.5mm x 69mm |
| Packing | 2.1Kg; 8pcs/18.3Kg/2.09CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBG-240-24A for a 24V LED high bay light?
Yes, this model is designed for high or low bay lighting and provides 24V output up to 240W and 10A. It is a constant current LED driver with a 14-24V CC range, so the fixture's electrical requirements need to stay within those limits.
Is the HBG-240-24A suitable for 24V outdoor LED signage or lighting?
It can be used for 24V outdoor signage or lighting where an IP65 water-resistant driver is appropriate. The wide 90-305VAC input range and -40°C to +75°C operating temperature also make it suitable for demanding indoor or outdoor environments within those ratings.
Can this power a 24V LED strip lighting project?
Yes, it can power 24V LED strip lighting as long as the total strip load does not exceed 240W or 10A. This is a good fit for higher-power 24V strip runs, but you should check your strip rated power per meter and total load before choosing it.
How much 24V LED strip can the HBG-240-24A support?
The maximum available output is 240W at 24V, with up to 10A output current. To estimate strip length, divide 240W by your strip's rated power per meter, and make sure the total current stays at or below 10A; check your strip rated power per meter before sizing.
Can the HBG-240-24A be used in wet or temperature-exposed locations?
This driver is rated IP65 water-resistant, so it is intended for environments where protection from dust and water exposure is needed. Its operating temperature range is -40°C to +75°C, which supports use in both very cold and very hot conditions within that range.
How does the HBG-240-24A compare with other 240W models in the HBG series?
Within the 24V 240W group, HBG-240-24, HBG-240-24A, HBG-240-24AB, and HBG-240-24B are all 10A models with a 14-24V CC range, while HBG-240-24DA is also 10A but uses a 16-24V CC range. Other 240W HBG variants change the output setpoint and current: 36V models are 6.7A with a 21-36V CC range, 48V models are 5A with a 28-48V CC range, and 60V models are 4A with a 36-60V CC range.
