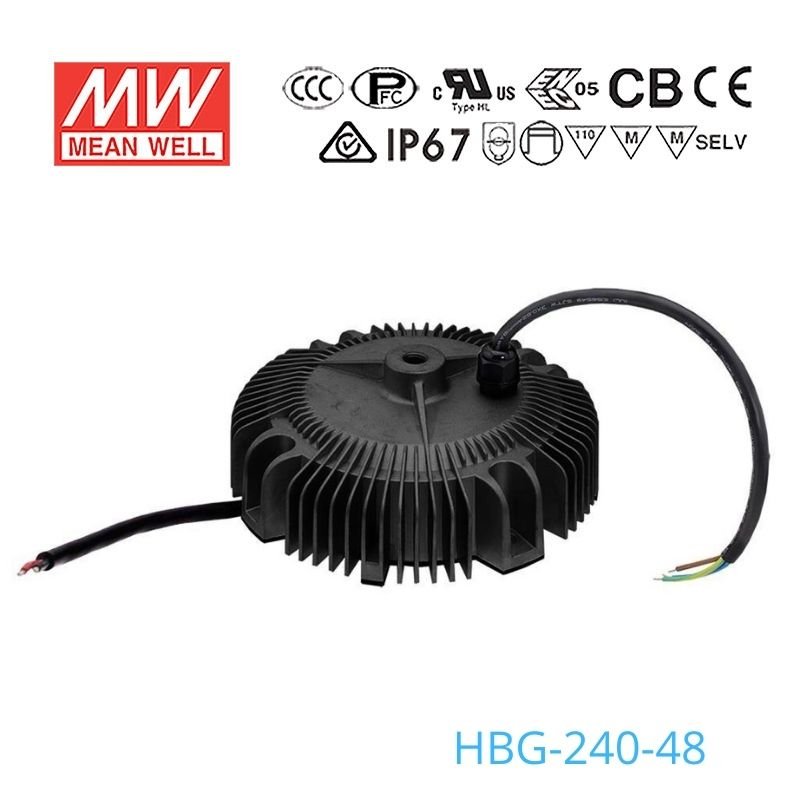

Mean Well HBG-240-48 Power Supply 240W 48V
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-48 for a 48V high bay LED fixture?
Yes, this model is designed for constant current LED loads and is listed for high and low bay light use. It provides up to 240W at 48V with 5A output and a 28-48V constant current range.
Is the HBG-240-48 suitable for outdoor area lighting or wet locations?
Yes, it is rated IP67 waterproof for wet and outdoor environments. Its operating temperature range of -40°C to +75°C also supports exposed or demanding locations.
Can this driver power 48V LED signage lighting?
It can be used when the signage lighting load needs a 48V constant current driver within the 28-48V range. The 240W rating makes it appropriate for higher-power 48V lighting assemblies rather than small loads.
Can the HBG-240-48 be used for 48V LED strip lighting?
Only if the strip system is designed for 48V constant current operation. The maximum load is 240W, so the math is 240W divided by your strip rated power per meter equals the estimated maximum strip length; check your strip rated power per meter before sizing.
What type of 48V lighting project fits this driver best?
This model fits larger 48V constant current lighting loads that need up to 5A and 240W. The circular metal case and high or low bay product positioning point it toward fixture-based lighting and robust signage applications.
How does the HBG-240-48 compare with other HBG 48V options?
The 48V branch includes 96W HBG-100-48 models, 158.4W HBG-160-48 models, 196.8W HBG-200-48 models, and 240W HBG-240-48 models, all using a 28-48V constant current range except the HBG-240-48DA at 33-48V. Across the wider HBG series, sibling output voltages also include 24V, 36V, and 60V.
