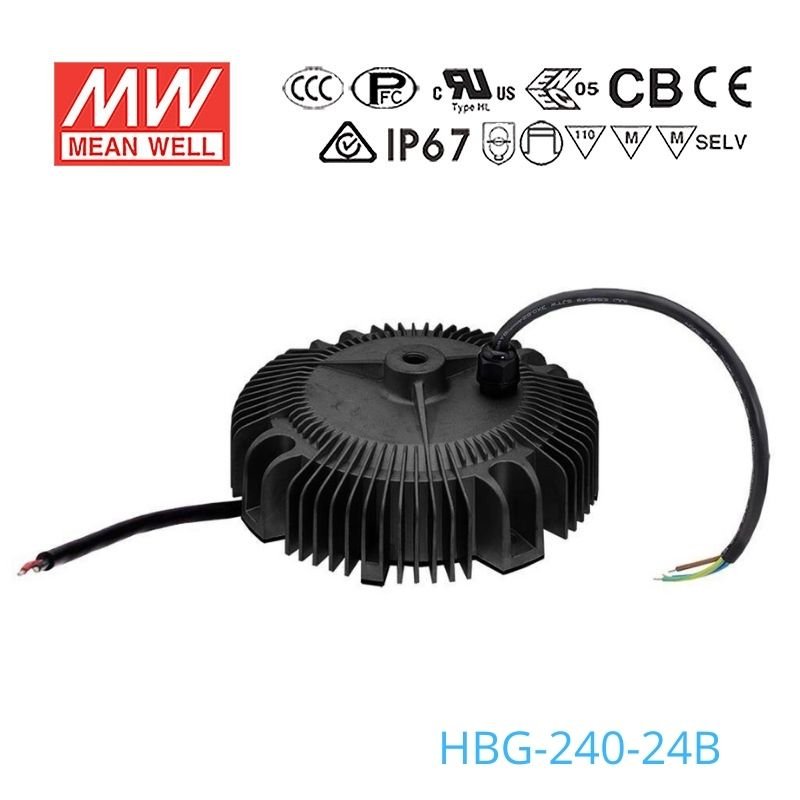

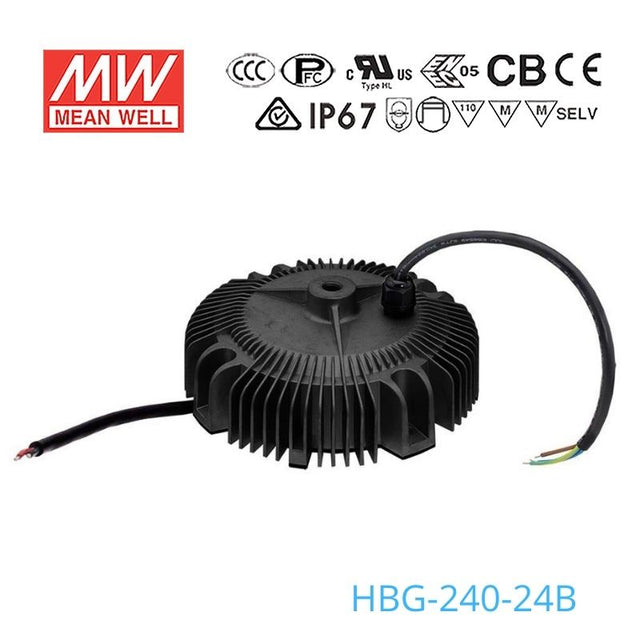

Mean Well HBG-240-24B Power Supply 240W 24V - Dimmable
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-24B for long 24V LED strip runs on an outdoor building outline?
Yes, it is built for 24V output and has up to 240W available at 10A. Its IP67 waterproof rating also makes it a better fit for outdoor lighting locations than indoor-only drivers, as long as your total 24V load stays within 240W.
Is the HBG-240-24B suitable for 24V illuminated signage and channel letter lighting?
It can be a fit for 24V signage loads that need a 24V driver with up to 240W capacity. For larger sign layouts, confirm the combined load does not exceed 10A and 240W.
Can this model be used for wet-location architectural or facade lighting?
Yes, the HBG-240-24B is rated IP67 waterproof and operates from -40°C to +75°C. That makes it suitable for demanding indoor or outdoor lighting environments where moisture and temperature range matter.
How much 24V LED strip can the HBG-240-24B support?
The maximum available output is 240W at 24V, with up to 10A. To estimate strip length, use 240W divided by your strip's rated watts per meter, and check your strip rated power per meter before sizing the run.
Is the HBG-240-24B suitable for outdoor or exposed locations?
This model carries an IP67 waterproof rating, so it is intended for harsher environments than water-resistant indoor drivers. Its operating range of -40°C to +75°C also supports use in very cold or very hot locations.
