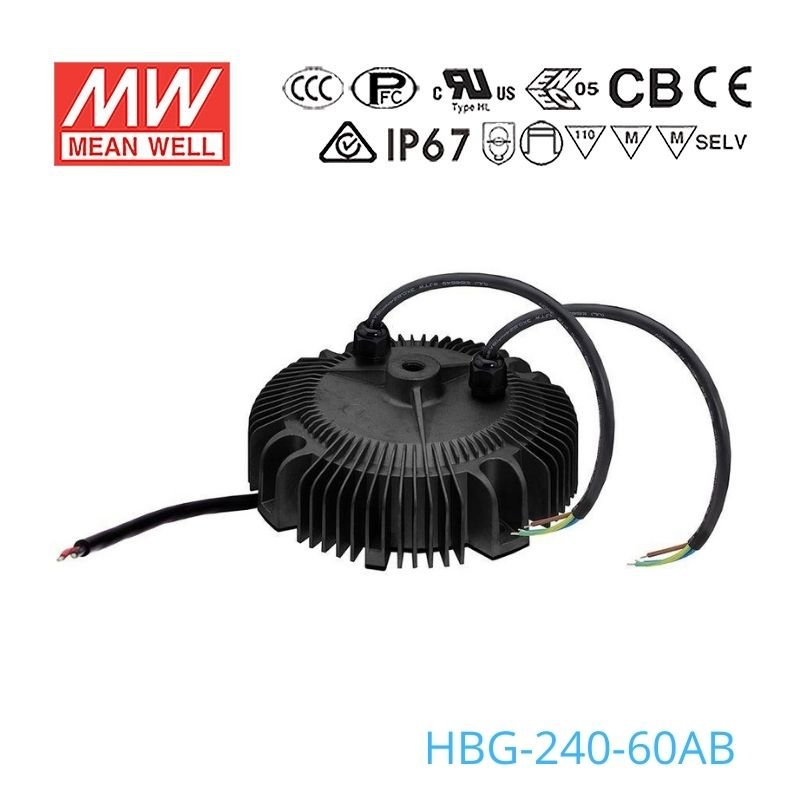

Mean Well HBG-240-60AB Power Supply 240W 60V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HBG-240-60AB Power Supply 240W 60V - Adjustable and Dimmable
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage60 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-60AB for a 60V high bay or low bay light?
Yes, this driver is intended for high and low bay lighting and delivers 240W at 60V with a 36-60V constant-current range. It is appropriate for fixtures designed for constant-current operation in that range and up to 4A output.
Is the HBG-240-60AB suitable for 60V illuminated signage?
It can be used for 60V constant-current signage lighting when the load is within the 36-60V range and does not exceed 240W. Its IP65 water-resistant housing is better suited to protected outdoor or indoor sign applications than fully exposed wet locations.
Can this model be used for 60V industrial or commercial lighting loads?
Yes, for constant-current 60V lighting loads up to 240W, this model fits many industrial or commercial fixture types. The metal case and -40°C to +75°C operating temperature range support demanding operating environments.
How much LED strip can the HBG-240-60AB support?
Estimate length from the 240W maximum output by dividing by the strip power per meter. For example, 240W divided by 8W per meter equals 30 meters, and 240W divided by 16W per meter equals 15 meters; check your strip rated power per meter and verify it is a constant-current 36-60V load.
Is the HBG-240-60AB waterproof enough for exposed outdoor use?
This version is rated IP65 water-resistant, not IP67 waterproof. That means it is a better fit for protected outdoor areas or indoor spaces where resistance to dust and water spray is needed.
How does the HBG-240-60AB compare with the rest of the 240W HBG family?
The 240W HBG family includes 24V models with 14-24V or 16-24V ranges, 36V models with 21-36V or 25-36V ranges, 48V models with 28-48V or 33-48V ranges, and 60V models with 36-60V or 42-60V ranges. The HBG-240-60AB is the 60V, 240W, 4A, IP65 version with a 36-60V constant-current range.
