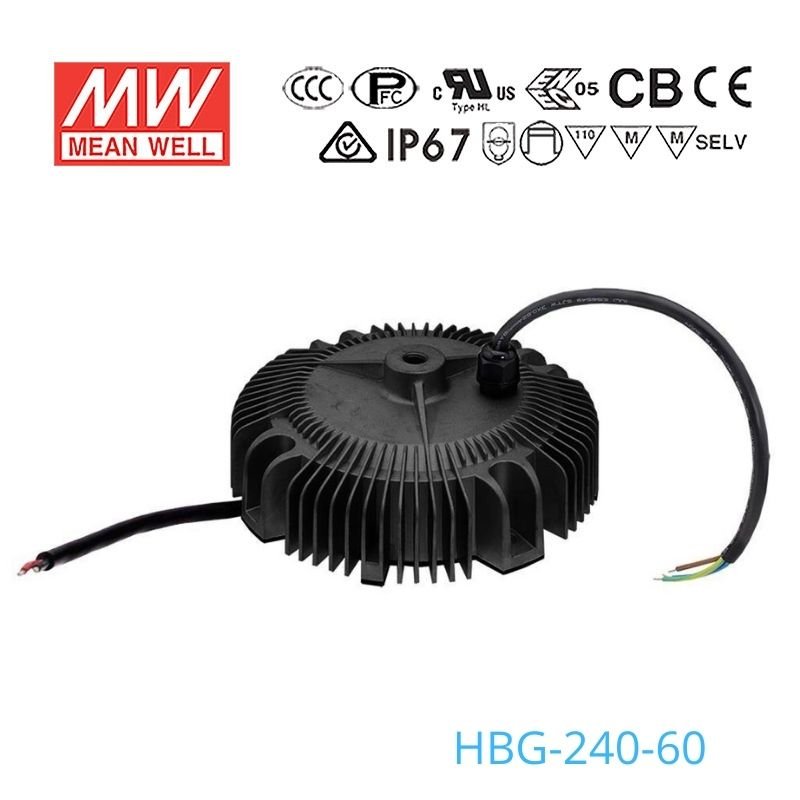

Mean Well HBG-240-60 Power Supply 240W 60V
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage60 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-60 for a 60V LED high bay light?
Yes, this driver is designed for high and low bay lighting and provides 240W at 60V with a 36-60V constant-current range. It is suitable when the fixture is specified for constant-current operation within that range and up to 4A output.
Is this a good fit for 60V outdoor signage lighting?
It can be used for 60V constant-current signage lighting if the lighting load stays within the 36-60V range and 240W maximum. The IP67 waterproof rating supports outdoor and wet-location use.
Can the HBG-240-60 be used for exterior area or flood lighting?
Yes, for 60V constant-current lighting loads up to 240W, this model is appropriate for exterior area or flood-lighting applications. Its -40°C to +75°C operating temperature range and IP67 enclosure support harsh outdoor conditions.
How much 60V LED strip or linear lighting can this driver handle?
For a length estimate, divide the 240W maximum by the strip power per meter. For example, 240W divided by 10W per meter equals 24 meters, and 240W divided by 20W per meter equals 12 meters; check your strip rated power per meter and confirm it is a constant-current 36-60V load.
Is the HBG-240-60 suitable for wet and exposed environments?
Yes, this version is IP67 waterproof, so it is intended for outdoor and wet environments. It is also rated for operation from -40°C to +75°C, which helps in exposed commercial and industrial locations.
How does the HBG-240-60 compare with the 240W HBG 24V, 36V, and 48V versions?
The 240W HBG family spans several voltage windows: 24V models use 14-24V or 16-24V, 36V models use 21-36V or 25-36V, 48V models use 28-48V or 33-48V, and 60V models use 36-60V or 42-60V constant-current ranges. The HBG-240-60 is the 60V, 240W, 4A, IP67 version with a 36-60V range.
