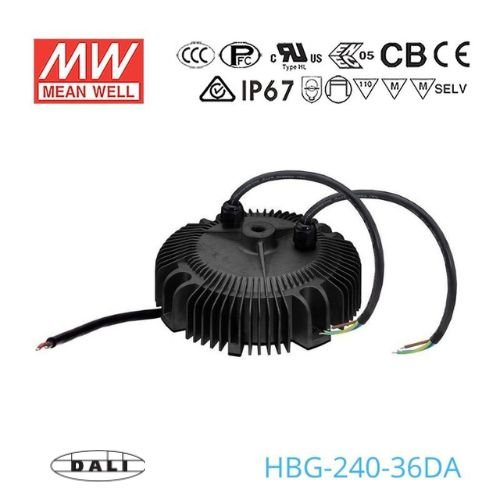

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HBG-240-36DA Power Supply 240W 36V - DALI
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-36DA for a 36V high bay or low bay LED fixture?
Yes, this model is intended for high and low bay light use and provides 36V constant current output. It delivers up to 240W and 6.7A, with a constant current range of 25-36V.
Is the HBG-240-36DA appropriate for outdoor or washdown-area lighting?
Yes, it carries an IP67 waterproof rating, which is suited to wet environments and outdoor exposure. It is also rated for -40°C to +75°C operation, which supports demanding indoor or outdoor conditions.
Can this driver be used for 36V LED signage systems?
It can be used where the signage system requires a 36V constant current driver operating within 25-36V. With 240W output available, it is aimed at larger constant current lighting loads than lower-wattage HBG variants.
Will the HBG-240-36DA work for a long 36V LED strip run?
It can only be considered for strip systems that are designed for 36V constant current operation. The maximum supported load is 240W, so the sizing formula is 240W divided by your strip rated power per meter equals the estimated maximum length; check your strip rated power per meter before sizing.
What kind of lighting load is this 36V DA version best suited for?
It is best suited for higher-power 36V constant current luminaires that fall inside the 25-36V range and need up to 6.7A. The 240W rating and metal case place it in the larger fixture class of the HBG series.
How does the HBG-240-36DA differ from other HBG family models?
In the 36V branch of the series, the main power steps are 97.2W, 158.4W, 198W, and 240W. Most 36V siblings use a 21-36V constant current range, while this HBG-240-36DA uses a narrower 25-36V range; the broader HBG family also includes 24V, 48V, and 60V versions.
