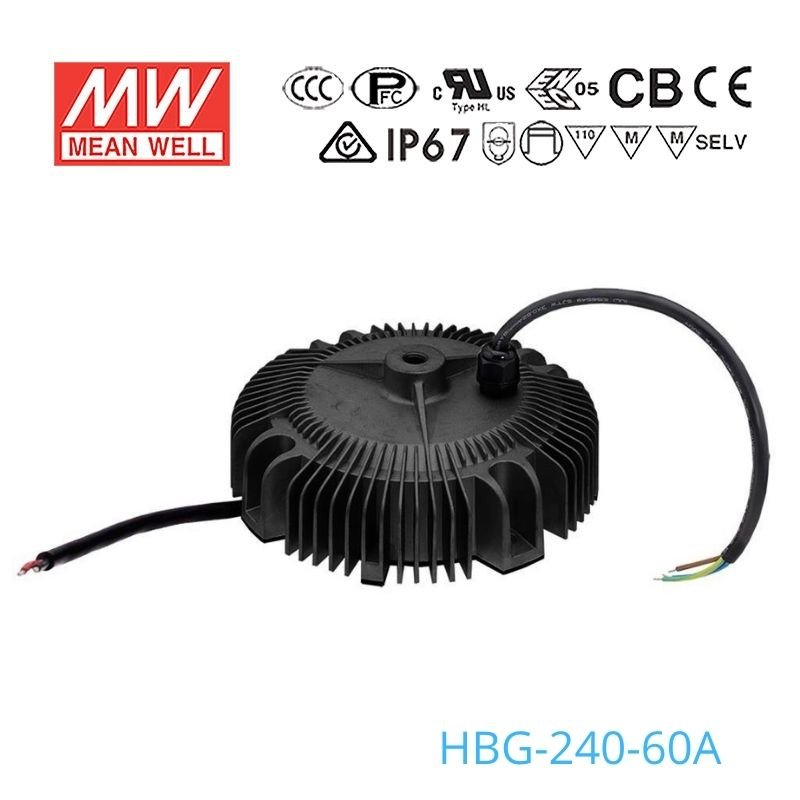

Mean Well HBG-240-60A Power Supply 240W 60V - Adjustable

circular shape, for high/low bay light, metal case for 100W+
$78.41 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Constant Voltage + Constant current mode output
Circular plastic housing with class I design
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 90~305VAC   127~431VDC
AC inrush current (max.) Cold start, 75A at 230VAC
DC adjustment range 65%~100% rated current
Over current protection 95 ~ 108%; Constant current limiting, recovers automatically after fault condition is removed
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -40~+75°C
Safety standards UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved
EMC standards EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection SJTW 18AWG/SVT 18AWG
Dimension (DxH) ψ191.5mm x 69mm
Packing 2.1Kg; 8pcs/18.3Kg/2.09CUFT

Specifications

  • Brand
    Mean Well
  • Series
    HBG Series
  • Power Rating
    240 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Dimming Control
    Built-in Potentiometer
  • Standards Met
    CB,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~75°C
  • Warranty
    5 Year
  • Length
    7.54 in
  • Width
    7.54 in
  • Height
    2.72 in
  • Weight
    4.63 lb

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

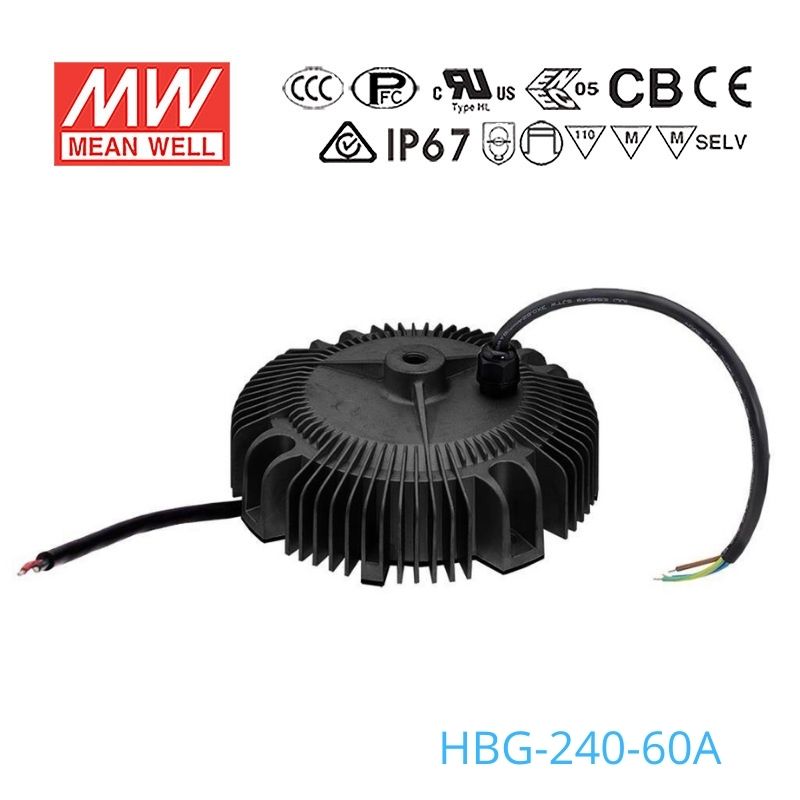

Mean Well HBG-240-60A Power Supply 240W 60V - Adjustable
