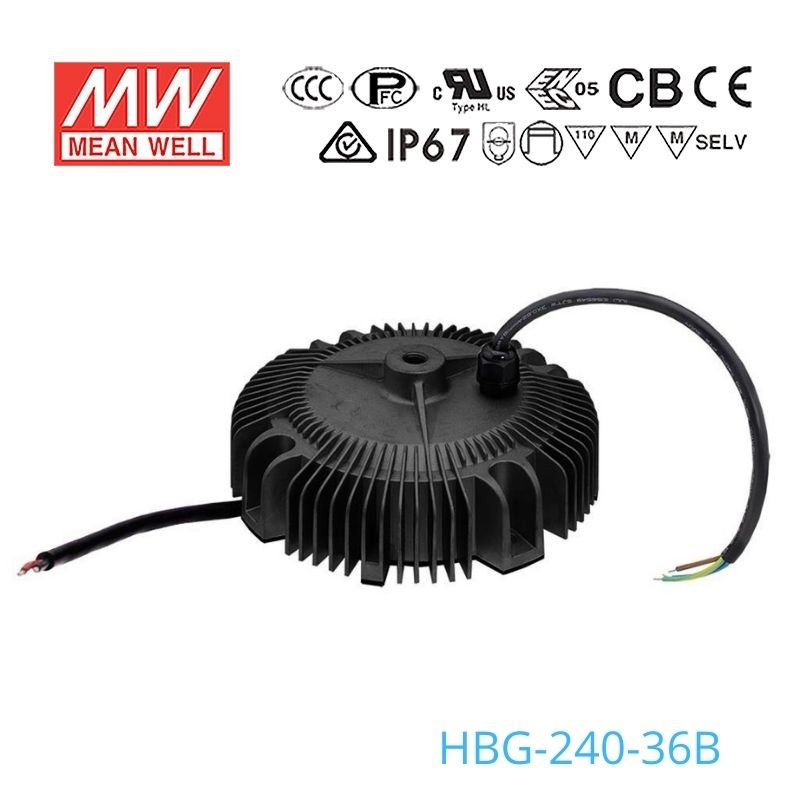

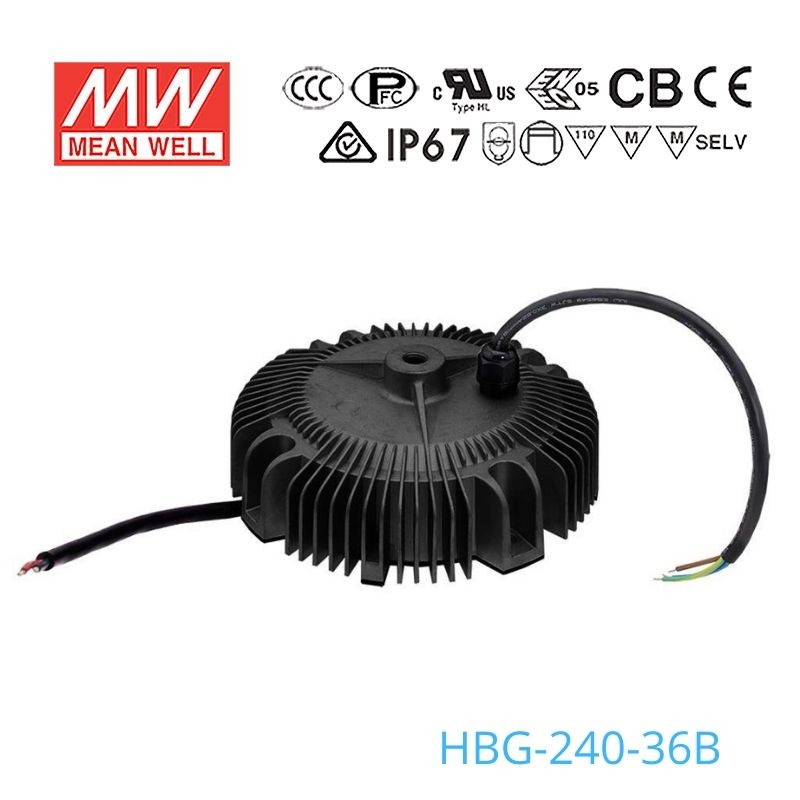

Mean Well HBG-240-36B Power Supply 240W 36V - Dimmable
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-36B for a 36V high bay LED light?
Yes, this model is built for 36V constant current LED loads and is specifically noted for high and low bay light use. It delivers up to 240W with 6.7A output and works across a 21-36V constant current range.
Is the HBG-240-36B suitable for outdoor commercial lighting?
Yes, the housing is rated IP67 waterproof, so it is intended for wet and outdoor environments. It also has an operating temperature range of -40°C to +75°C, which suits demanding site conditions.
Can this driver be used for 36V LED signage lighting?
It can be used where the signage lighting system requires a 36V constant current driver within the 21-36V range. The 240W capacity gives more headroom than smaller HBG models for higher-power signage assemblies.
Can I use the HBG-240-36B for a large 36V LED strip lighting run?
Only if the strip system is designed for a 36V constant current driver. The maximum load is 240W, so the sizing math is 240W divided by your strip rated power per meter equals the maximum estimated length; check your strip rated power per meter before sizing.
What kinds of 36V lighting projects is this model best matched to?
This driver is best matched to higher-power 36V constant current lighting loads that need up to 240W and 6.7A. Its circular metal case and stated high or low bay focus make it a better fit for fixture-based lighting than for small low-power loads.
How does the HBG-240-36B compare with other HBG series options?
Within the same family, 36V versions include 97.2W HBG-100-36 models, 158.4W HBG-160-36 models, 198W HBG-200-36 models, and 240W HBG-240-36 models, all with 21-36V constant current ranges except the HBG-240-36DA at 25-36V. Other sibling voltages in the series are 24V, 48V, and 60V, with power classes including 96W, 156W, 158.4W, 196.8W, 198W, and 240W.
