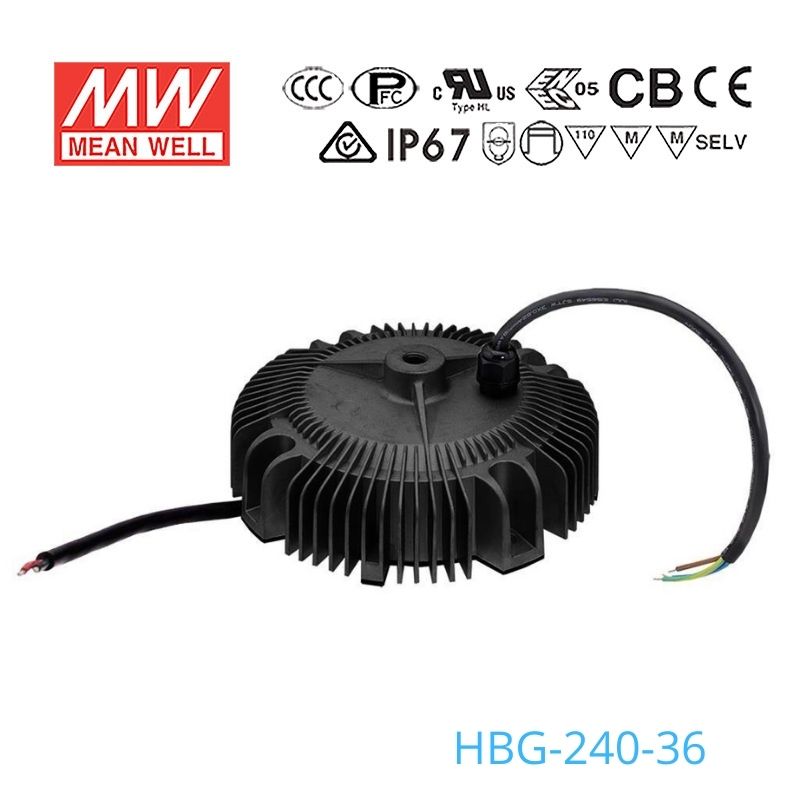

Mean Well HBG-240-36 Power Supply 240W 36V
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-36 for a 36V LED strip or linear lighting system?
Yes, if your lighting load is designed for 36V, this driver provides 36V output with up to 240W total power. Its 6.7A output capacity makes it more suitable for larger 36V lighting runs than lower-power drivers.
Is the HBG-240-36 suitable for 36V signage lighting in outdoor conditions?
It can be used for 36V sign lighting loads that need up to 240W. The IP67 waterproof rating also makes it appropriate for outdoor or wet-location lighting projects.
Can this model power a high bay or low bay LED fixture?
Yes, the HBG series is specified for high or low bay light use, and this version delivers 240W at 36V. The circular shape and metal case for 100W+ applications also match that type of fixture design.
How do I estimate the maximum 36V LED strip length for the HBG-240-36?
Use the formula 240W divided by your strip's rated watts per meter. This model can deliver up to 240W at 36V and 6.7A, but you should check your strip rated power per meter before deciding the total run length.
Is the HBG-240-36 rated for wet and harsh environments?
Yes, it is IP67 waterproof and operates from -40°C to +75°C. That makes it suitable for exposed lighting locations where moisture, dust, and temperature range are part of the environment.
