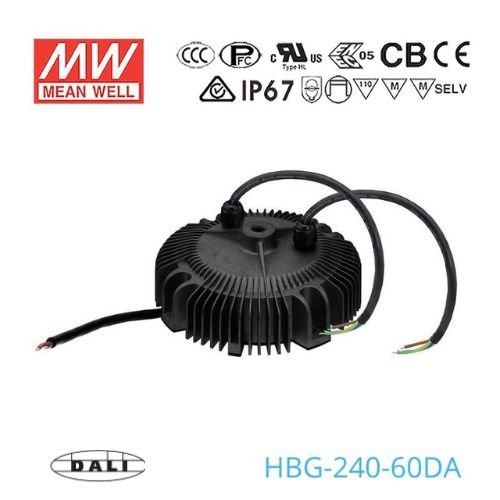

Mean Well HBG-240-60DA Power Supply 240W 60V - DALI
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage60 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-60DA for a 60V high bay LED light with DALI control?
Yes, this model is intended for constant-current lighting and is listed for high and low bay light use. It provides 240W at 60V with 4A output, and its constant-current range is 42-60V, so the fixture needs to match that electrical range.
Is the HBG-240-60DA a good fit for commercial low bay fixtures that need dimming control?
It can be a fit where the fixture requires a constant-current driver in the 42-60V range and the project uses DALI control. The unit is rated for 240W output and uses a metal case for 100W+ applications, which aligns with higher-power lighting fixtures.
Can this driver be used in outdoor architectural or area lighting?
Yes, the IP67 waterproof rating supports outdoor or wet-location lighting applications when the complete fixture is also rated for that environment. Its operating temperature range of -40°C to +75°C also suits exposed installations with large temperature swings.
Can I use the HBG-240-60DA for a constant-current signage or linear lighting system?
Yes, if the lighting load is a constant-current product operating between 42V and 60V and drawing no more than 4A or 240W. Because this model is constant current, it should only be paired with loads designed for that operating mode.
How do I estimate the maximum LED lighting length this driver can support?
The driver can supply up to 240W total. For a lighting product rated in watts per meter, maximum length = 240W divided by the product's rated power per meter, and you should check your strip rated power per meter and confirm the load is compatible with 42-60V constant current operation.
Is the HBG-240-60DA suitable for wet, dusty, or harsh environments?
It is designed for harsh environments with an IP67 waterproof rating and a metal case. The specified operating temperature range is -40°C to +75°C, which supports both cold-weather and high-temperature use.
What are the main differences between the HBG-240-60DA and other 240W HBG models?
The 240W HBG family includes 24V models at 10A with 14-24V or 16-24V range, 36V models at 6.7A with 21-36V or 25-36V range, 48V models at 5A with 28-48V or 33-48V range, and 60V models at 4A. In the 60V group, HBG-240-60, HBG-240-60A, HBG-240-60AB, HBG-240-60B, HBG-240P-60A, and HBG-240P-60B use a 36-60V constant-current range, while the HBG-240-60DA uses a narrower 42-60V range.
