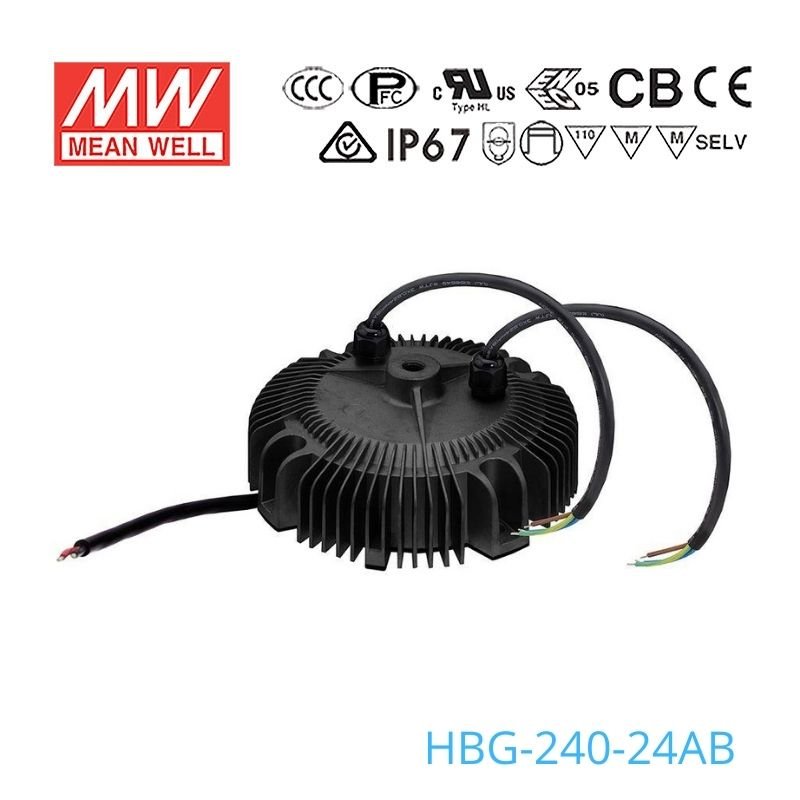

Mean Well HBG-240-24AB Power Supply 240W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HBG-240-24AB Power Supply 240W 24V - Adjustable and Dimmable
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-240-24AB for 24V LED strip lighting?
Yes, this model is designed for 24V output and can supply up to 240W and 10A, which fits many 24V LED strip lighting systems. For strip projects, the key check is that the total strip load stays within 240W and matches the 24V output. Because it is rated IP65, it can also suit strip lighting in locations where water resistance matters.
Is the HBG-240-24AB suitable for outdoor LED signage or sign lighting?
It can be a fit for outdoor LED signage that uses a 24V driver and stays within the 240W, 10A output limit. The IP65 water-resistant rating supports use in wet or dusty environments, and the operating temperature range is -40°C to +75°C. You still need to confirm the sign load matches the 24V output and does not exceed 240W.
Can this LED driver be used for high bay or low bay lighting?
Yes, this series is identified for high bay and low bay light use, and this model provides 240W at 24V with a circular shape suited to that style of fixture. It operates in constant current mode with a 14-24V CC voltage range, so the fixture needs to be compatible with that output range. The metal case is also consistent with the series design for 100W+ models.
Can I use the HBG-240-24AB in large 24V lighting systems that need dimming and output adjustment?
Yes, this model is identified as adjustable and dimmable, so it can be considered for 24V lighting systems where those functions are required. Its output is 24V, 10A, and 240W, which makes it suitable for higher-power 24V LED loads within that limit. Check that the fixture or lighting load is designed for a constant current driver with a 14-24V CC range.
How much 24V LED strip can this power supply run?
The maximum load is 240W, so the sizing formula is 240W divided by your strip rated power per meter to estimate the maximum strip length. This model outputs 24V and up to 10A, so both the strip voltage and total wattage must stay within those limits. Always check your strip rated power per meter before calculating the final length.
Is the HBG-240-24AB okay for wet, dusty, or cold outdoor environments?
It is built for harsher conditions than indoor-only drivers because it is rated IP65 water-resistant. The specified operating temperature range is -40°C to +75°C, which supports use in very cold and very hot environments. As with any outdoor product, suitability depends on the rest of the system also matching the environmental conditions.
How does the HBG-240-24AB compare with other 24V 240W HBG series models?
Within the related 24V, 240W family, the listed sibling models are HBG-240-24, HBG-240-24A, HBG-240-24B, and HBG-240-24DA. The HBG-240-24, HBG-240-24A, and HBG-240-24B are listed at 24V, 10A, 240W, with a 14-24V CC range, while the HBG-240-24DA is listed at 24V, 10A, 240W, with a 16-24V CC range. This means the main factual difference shown here is the constant current voltage range on the DA version.
