Mean Well HBG-240-36AB Power Supply 240W 36V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours

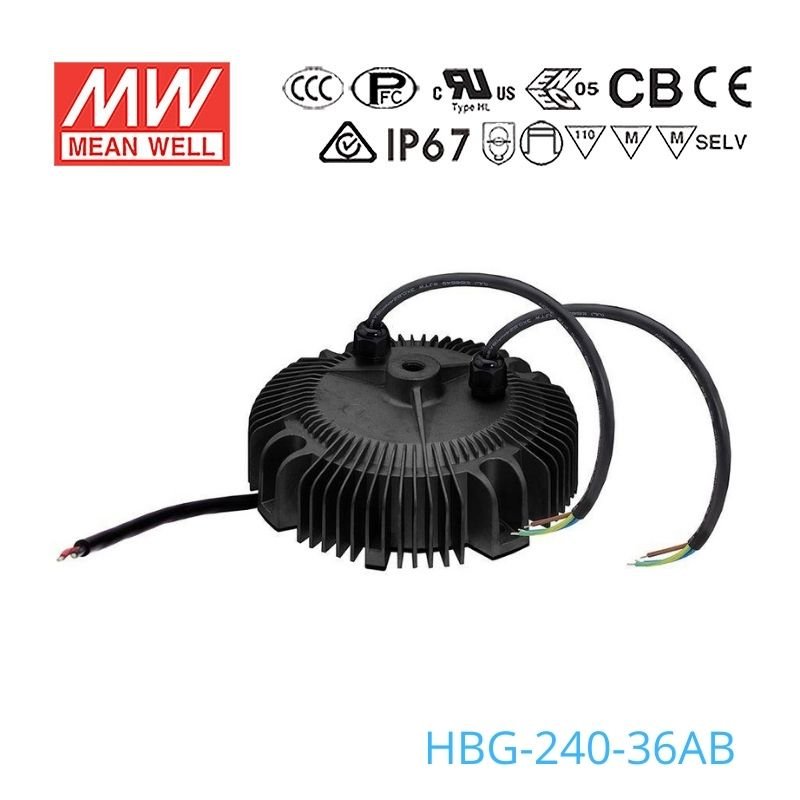

Mean Well HBG-240-36AB Power Supply 240W 36V - Adjustable and Dimmable
The HBG-240 is a 240W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.63 lb
::specification::
Frequently Asked Questions
Can I use the HBG-240-36AB for a 36V lighting project that needs both adjustment and dimming?
Yes, this version is identified as adjustable and dimmable, while still delivering 36V output up to 240W and 6.7A. It fits 36V lighting systems that need that feature set without changing the core power rating.
Is the HBG-240-36AB suitable for 36V architectural lighting or illuminated displays?
It can be a fit for 36V lighting loads in displays or architectural lighting where up to 240W is required. As with any 36V load, verify the total demand stays within 6.7A and 240W.
Can this model be used in high bay or low bay LED lighting?
Yes, the HBG series is specified for high or low bay light applications. This model provides 240W at 36V and uses the same circular, metal-case format intended for 100W+ lighting products.
What is the maximum 36V LED strip length for the HBG-240-36AB?
Estimate it by dividing 240W by your strip's rated watts per meter. This driver offers up to 240W at 36V with 6.7A output, and you should check your strip rated power per meter before setting the final length.
Is the HBG-240-36AB meant for fully exposed wet locations?
This model is IP65 water-resistant, so it is better suited to dust-prone or splash-prone locations than fully waterproof exposure. It also supports a wide operating range of -40°C to +75°C for demanding environments.
