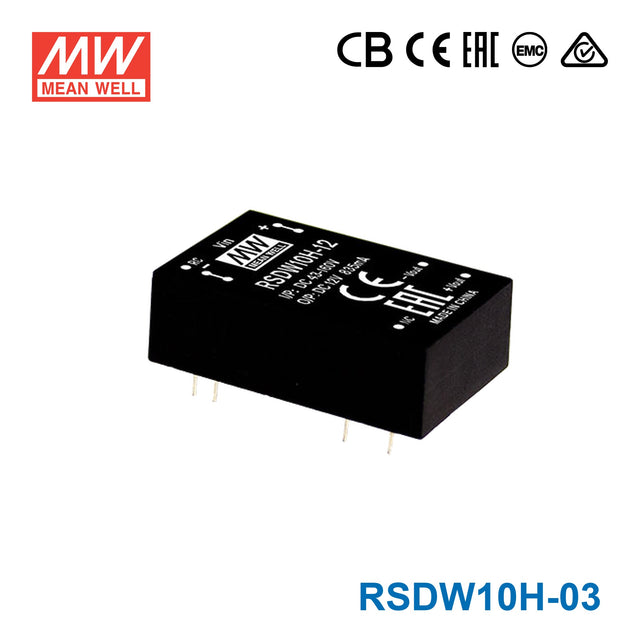

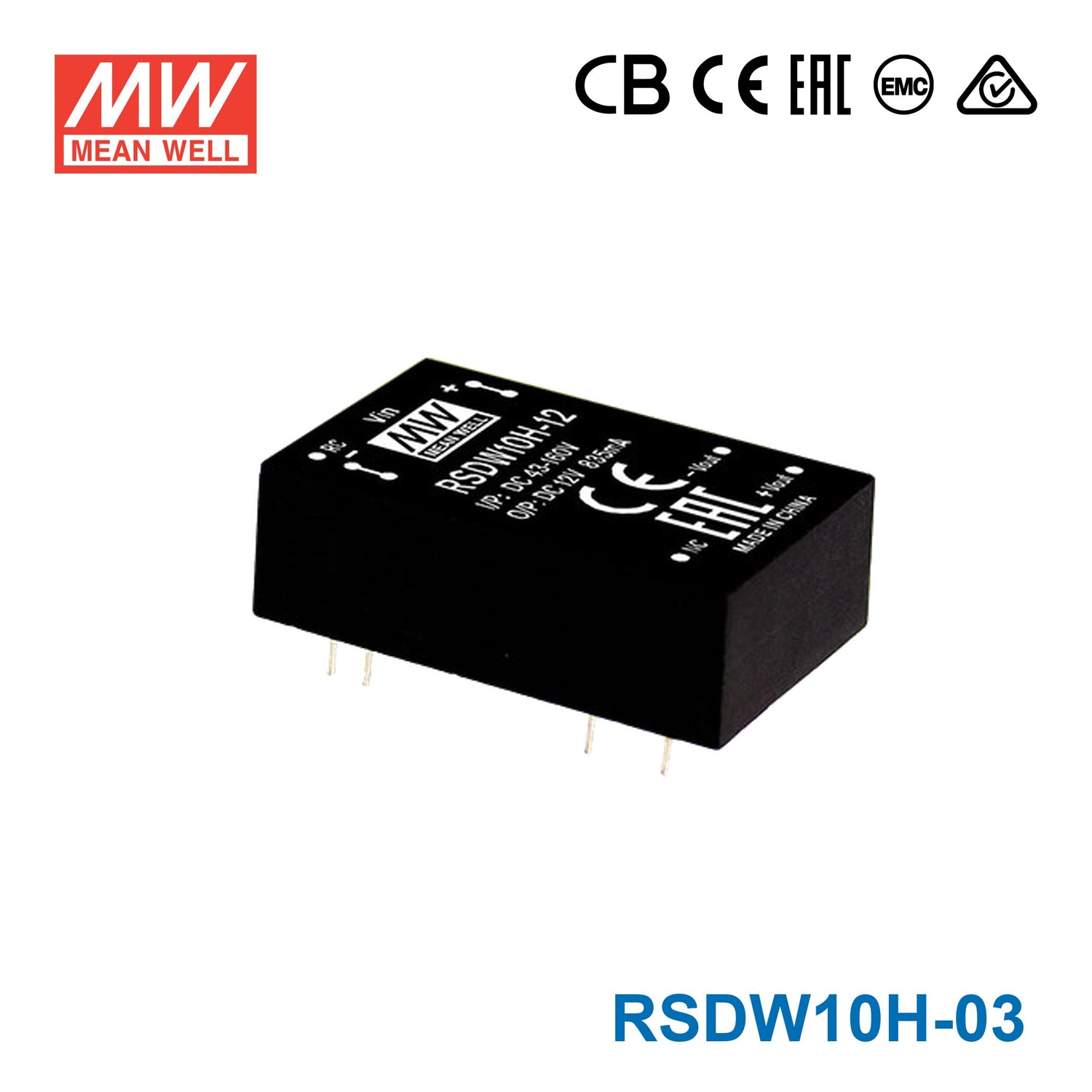

Mean Well RSDW10H-03 DC-DC Converter - 10W - 43~160V in 3.3V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSDW10H-03 DC-DC Converter - 10W - 43~160V in 3.3V out
Description
Description
Features
| Compliance with EN50155 railway standard |
| DIP 24 package with standard pinout |
| 4:1 wide input range |
| Wide operating temperature range -40~+85°C |
| No minimum load required |
| Fully encapsulated |
| Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage |
| 3KVDC I/O isolation |
| Remote ON/OFF control |
| 3 years warranty |
General Specification
| Voltage Accuracy | ±1% |
| Overload Protection | 120~180% rated output power |
| Efficiency | 88% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 31.8*20.3*12.7mm |
| Potting material | Non-conductive black plastic |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating10 Watt
-
Output Voltage3.3 Volt
-
Rated Current2.5 Ampere
-
Input Voltage43V~160V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RSDW10H-03 for a 3.3V embedded processor, FPGA, or logic rail?
Yes, it is a constant-voltage converter with a 3.3V output rated at 2.5A and 10W. That aligns with applications that need a regulated 3.3V rail within those output limits.
Is the RSDW10H-03 suitable for industrial or rail electronics running from a higher input range?
It is built for a 43-160VAC input range and provides 3.3V output on the secondary side. The listed EN50155 and EN45545 compliance also makes it relevant for railway-related electronic subsystems.
Would this model work for compact automation or communications boards that need isolated 3.3V power?
Yes, the converter provides 4000VDC isolation in a 31.8 x 20.3 x 10.2 mm package. Its 1U low-profile, half-encapsulated construction supports dense board-level or enclosure-level designs.
Can the RSDW10H-03 handle wide ambient temperatures, and is it rated for outdoor exposure?
Its operating range is -40°C to +85°C, so it is specified for broad temperature conditions. No IP rating is listed, so the provided data does not establish exposed outdoor or sealed-enclosure performance.
What changes across the RSDW10H series besides the part number?
The RSDW10H siblings share the same 10W platform but have different outputs. RSDW10H-03 is 3.3V at 2.5A, RSDW10H-05 is 5V at 2A, RSDW10H-12 is 12V at 835A, and RSDW10H-15 is 15V at 666A.
