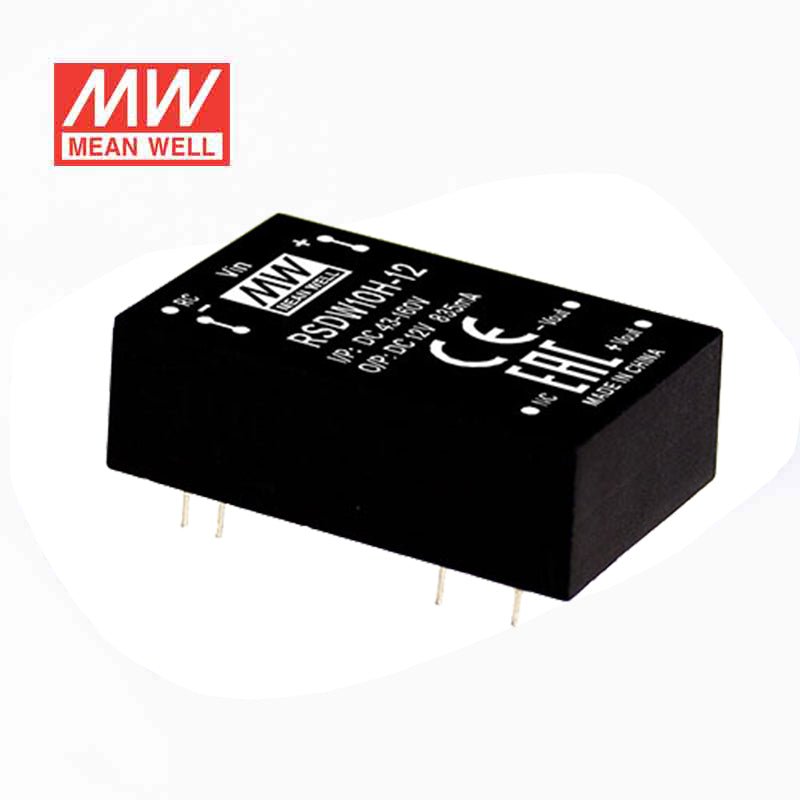

Mean Well RSDW10H-12 DC-DC Converter - 10W - 43~160V in 12V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSDW10H-12 DC-DC Converter - 10W - 43~160V in 12V out
Description
Description
Features
| Compliance with EN50155 railway standard |
| DIP 24 package with standard pinout |
| 4:1 wide input range |
| Wide operating temperature range -40~+85°C |
| No minimum load required |
| Fully encapsulated |
| Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage |
| 3KVDC I/O isolation |
| Remote ON/OFF control |
| 3 years warranty |
General Specification
| Voltage Accuracy | ±1% |
| Overload Protection | 120~180% rated output power |
| Efficiency | 88% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 31.8*20.3*12.7mm |
| Potting material | Non-conductive black plastic |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating10 Watt
-
Output Voltage12 Volt
-
Rated Current0.83 Ampere
-
Input Voltage43V~160V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RSDW10H-12 to power a 12V controller or embedded board from a high-voltage DC source?
This model is a constant-voltage DC-DC converter with a 12V output and 10W power rating, so it fits 12V control electronics that stay within that 10W limit. Its 43-160VAC input range also makes it relevant where the available source sits within that wide input window.
Is the RSDW10H-12 suitable for railway or rolling stock electronics?
The listed features include compliance with EN50155 and EN45545 railway standards, which makes it appropriate for railway-related electronic power conversion where those standards matter. It also has 4000VDC isolation and operates from -40°C to +85°C, supporting use in demanding transport environments.
Can this 12V converter be used for industrial monitoring or automation devices?
Yes, it is a constant-voltage 12V converter rated at 10W, which aligns with many low-power industrial monitoring and automation loads that require a regulated 12V rail. The half-encapsulated, 1U low-profile design can also help where space is limited.
Is the RSDW10H-12 a fit for compact embedded systems in space-constrained equipment?
Its 31.8 × 20.3 × 10.2 mm size, 0.016 kg weight, and 1U low-profile construction make it suited to compact embedded designs where board space and height are constrained. The 10W output keeps it in the low-power embedded and control category rather than higher-load 12V systems.
What is the difference between the RSDW10H-12 and other RSDW10H models?
Within the listed siblings, the RSDW10H-03 is 10W with 3.3V output at 2.5A, the RSDW10H-05 is 10W with 5V output at 2A, and the RSDW10H-15 is 10W with 15V output at 666A. The RSDW10H-12 version is the 12V option at 10W with 835A output current.
Can the RSDW10H-12 be used outdoors or in harsh temperature conditions?
The operating temperature range is -40°C to +85°C, so the temperature rating supports harsh hot and cold conditions. No IP rating is listed in the provided specs, so these specs do not present it as an outdoor or waterproof converter.
