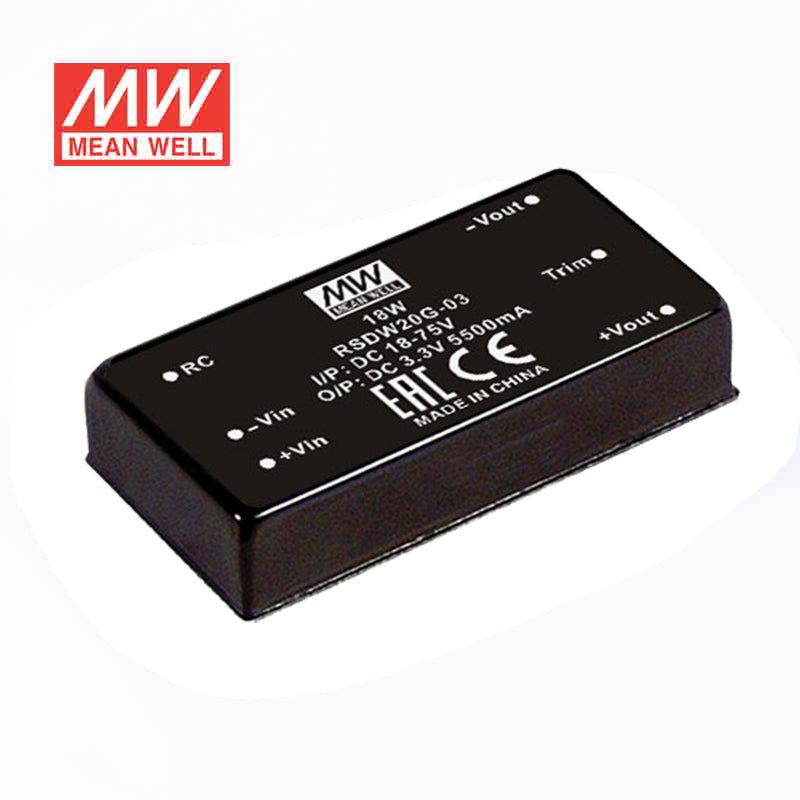

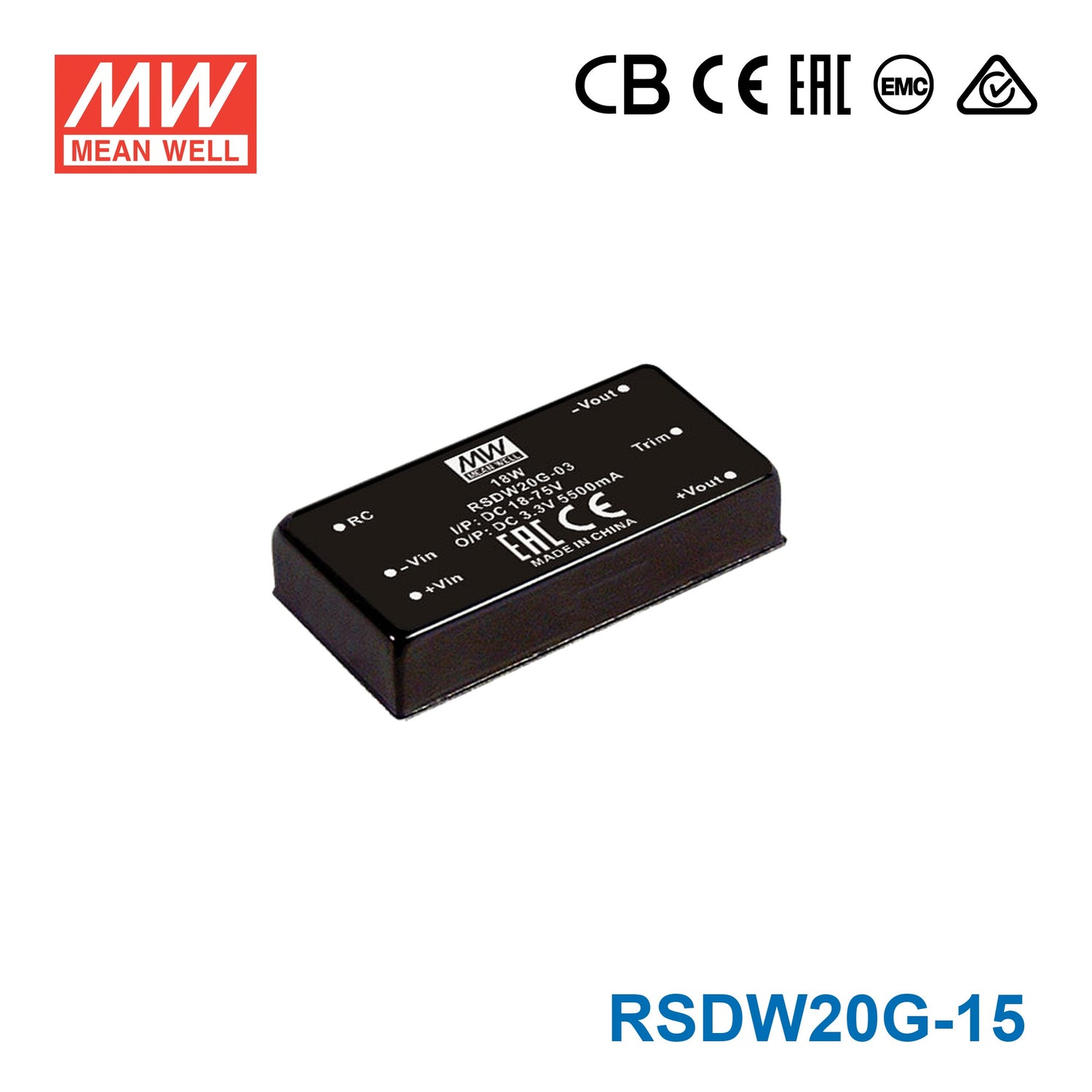

Mean Well RSDW20G-15 DC-DC Converter - 20W - 18~75V in 15V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSDW20G-15 DC-DC Converter - 20W - 18~75V in 15V out
Description
Description
Features
| Compliance with EN50155 railway standard |
| DIP 2" x 1" package with standard pinout |
| 4:1 wide input range |
| Wide operating temperature range -40~+85°C |
| No minimum load required |
| Fully encapsulated |
| Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage |
| 1.5KVDC, 3KVDC I/O isolation by models |
| Remote ON/OFF control |
| 3 years warranty |
General Specification
| Voltage Accuracy | ±1.5% |
| Overload Protection | 110~160% rated output power |
| Efficiency | 90% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 50.8*25.4*10.2mm |
| Potting material | Non-conductive black plastic |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage18V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.4 in
-
Weight0.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RSDW20G-15 for a 15V automation or embedded load?
Yes, this model provides a constant 15V output rated for up to 1.33A and 20W. It is appropriate for 15V automation, embedded, or industrial electronics that require a regulated 15V supply within those limits.
Is the RSDW20G-15 suitable for systems that need 15V from an 18-75VAC source?
Yes, that is the intended conversion range for this unit. It accepts 18-75VAC input and converts it to a constant 15V output, making it suitable for equipment designed around that input window and a 15V rail.
Can this converter be used in railway-related 15V electronics?
Yes, the listed features include compliance with EN50155 and EN45545 railway standards, which is relevant for rail and transit electronics. Its 4000VDC isolation and -40°C to +85°C operating temperature also support use in demanding electrical environments.
Is the RSDW20G-15 appropriate for low-profile industrial assemblies?
It can be, because the converter uses a 1U low-profile, half-encapsulated design and measures 50.8 × 25.4 × 10.2 mm. Those mechanical specs help when integrating isolated 15V power into compact control or embedded hardware.
How does the RSDW20G-15 differ from the other RSDW20G output options?
All listed RSDW20G models share the same 20W power class, but their outputs are different. The RSDW20G-03 is 3.3V at 5.5A, the RSDW20G-05 is 5V at 4A, the RSDW20G-12 is 12V at 1.67A, and the RSDW20G-15 is 15V at 1.33A.
Is the RSDW20G-15 rated for outdoor conditions or only for temperature extremes?
The provided specifications define an operating temperature range of -40°C to +85°C. They do not include an IP rating, so moisture and dust protection for exposed outdoor use are not specified here.
