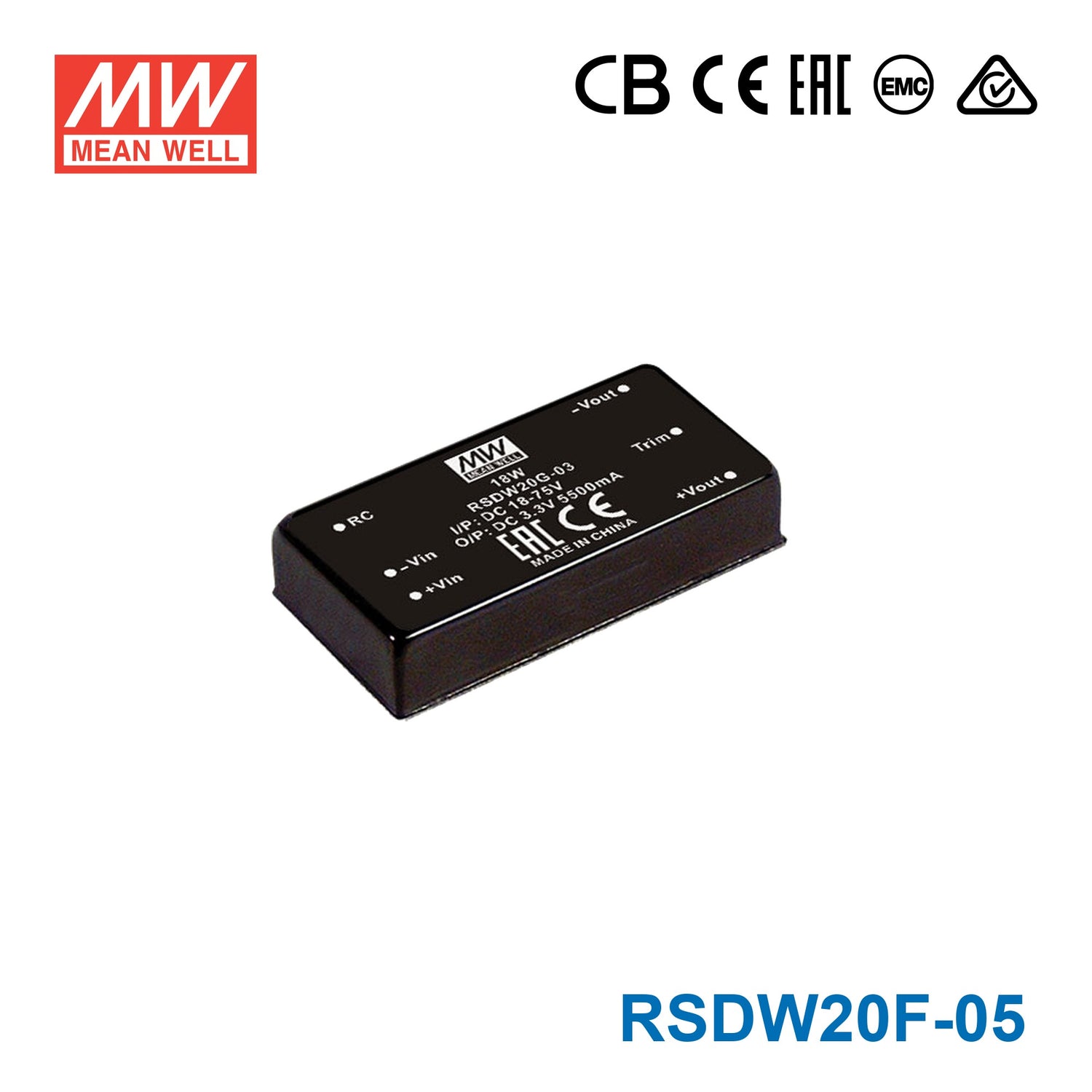

Mean Well RSDW20F-05 DC-DC Converter - 20W - 9~36V in 5V out

compliance with EN50155 and EN45545 railway standards, 2:1 or 4:1 wide input range, isolation 4000VDC, 1U low profile, half encapsulated
SKU:
RSDW20F-05

$36.67 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Compliance with EN50155 railway standard
DIP 2" x 1" package with standard pinout
4:1 wide input range
Wide operating temperature range -40~+85°C
No minimum load required
Fully encapsulated
Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage
1.5KVDC, 3KVDC I/O isolation by models
Remote ON/OFF control
3 years warranty

General Specification

Voltage Accuracy ±1.5%
Overload Protection 110~160% rated output power
Efficiency 90%
Short circuit protection Continuous, automatic recovery
Working temperature -40°C to +85°C
EMC Compliance to EN55032 class A, EN61000-4-2,3,4,5,6
Temp. Coefficient 0.03% / ℃ (0 ~ 71℃)
Dimension (LxWxH) (mm) 50.8*25.4*10.2mm
Potting material Non-conductive black plastic

Specifications

  • Brand
    Mean Well
  • Series
    RSD Series
  • Power Rating
    20 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    9V~36V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,EMC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.4 in
  • Weight
    0.08 lb

File Downloads

::specification::
