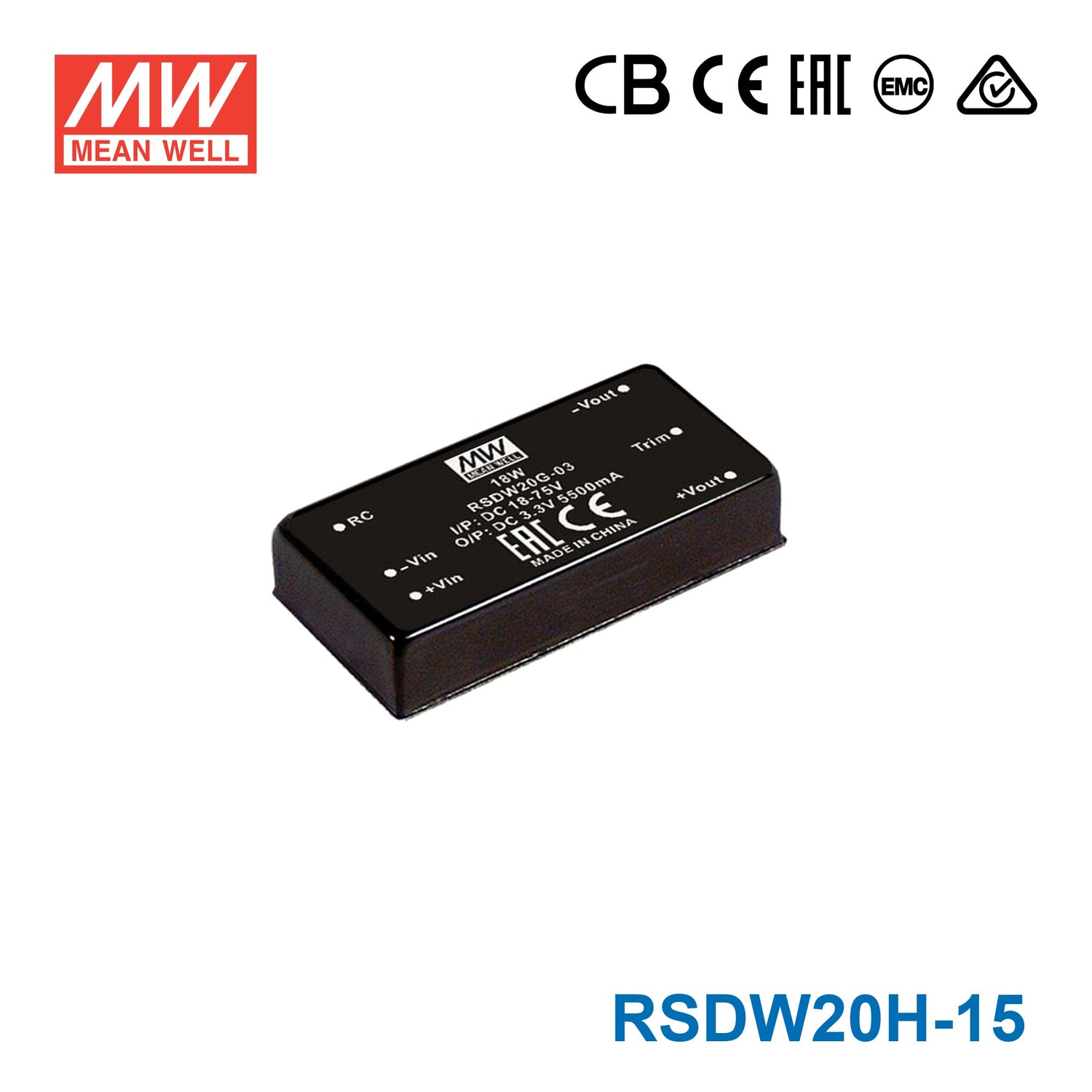

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well RSDW20H-15 DC-DC Converter - 20W - 43~160V in 15V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSDW20H-15 DC-DC Converter - 20W - 43~160V in 15V out
Description
Description
Features
| Compliance with EN50155 railway standard |
| DIP 2" x 1" package with standard pinout |
| 4:1 wide input range |
| Wide operating temperature range -40~+85°C |
| No minimum load required |
| Fully encapsulated |
| Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage |
| 1.5KVDC, 3KVDC I/O isolation by models |
| Remote ON/OFF control |
| 3 years warranty |
General Specification
| Voltage Accuracy | ±1.5% |
| Overload Protection | 110~160% rated output power |
| Efficiency | 90% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 50.8*25.4*10.2mm |
| Potting material | Non-conductive black plastic |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage43V~160V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.4 in
-
Weight0.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RSDW20H-15 to supply 15V instrumentation or analog control circuits?
Yes, when the equipment needs a regulated 15V output and the load stays within 1.33A and 20W. This unit is a constant-voltage converter designed for applications using a 43-160VAC input source.
Is this model suitable for 15V industrial communication or interface modules?
It can be used for 15V communication or interface modules as long as the required current does not exceed 1.33A and total power remains within 20W. The 4000VDC isolation may also be relevant where isolation is required by the system design.
Can the RSDW20H-15 power compact embedded or automation loads where space is tight?
It is often a practical fit for compact equipment because it delivers 15V at up to 1.33A in a 50.8 × 25.4 × 10.2 mm package. The listed 1U low-profile and half-encapsulated construction also align with space-constrained designs.
How does this converter handle cold or high-heat environments?
The specified operating range is -40°C to +85°C, so it is intended for use across a wide temperature span within those limits. Since no IP rating is listed, environmental exposure protection has to come from the surrounding enclosure.
How does the RSDW20H-15 differ from the 5V and 12V versions?
All three RSDW20H versions share 20W power, 43-160VAC input, 50.8 × 25.4 × 10.2 mm dimensions, 0.035 kg weight, and -40°C to +85°C operating range. The output ratings are different: the -05 is 5V at 4A, the -12 is 12V at 1.67A, and the -15 is 15V at 1.33A.
