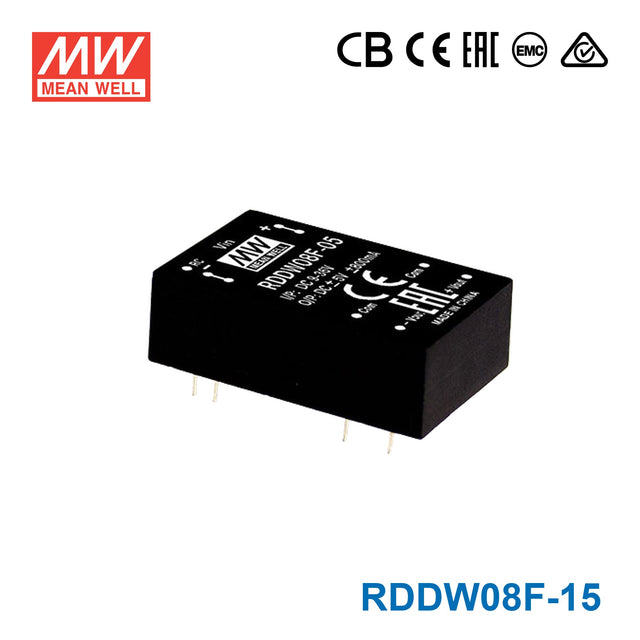

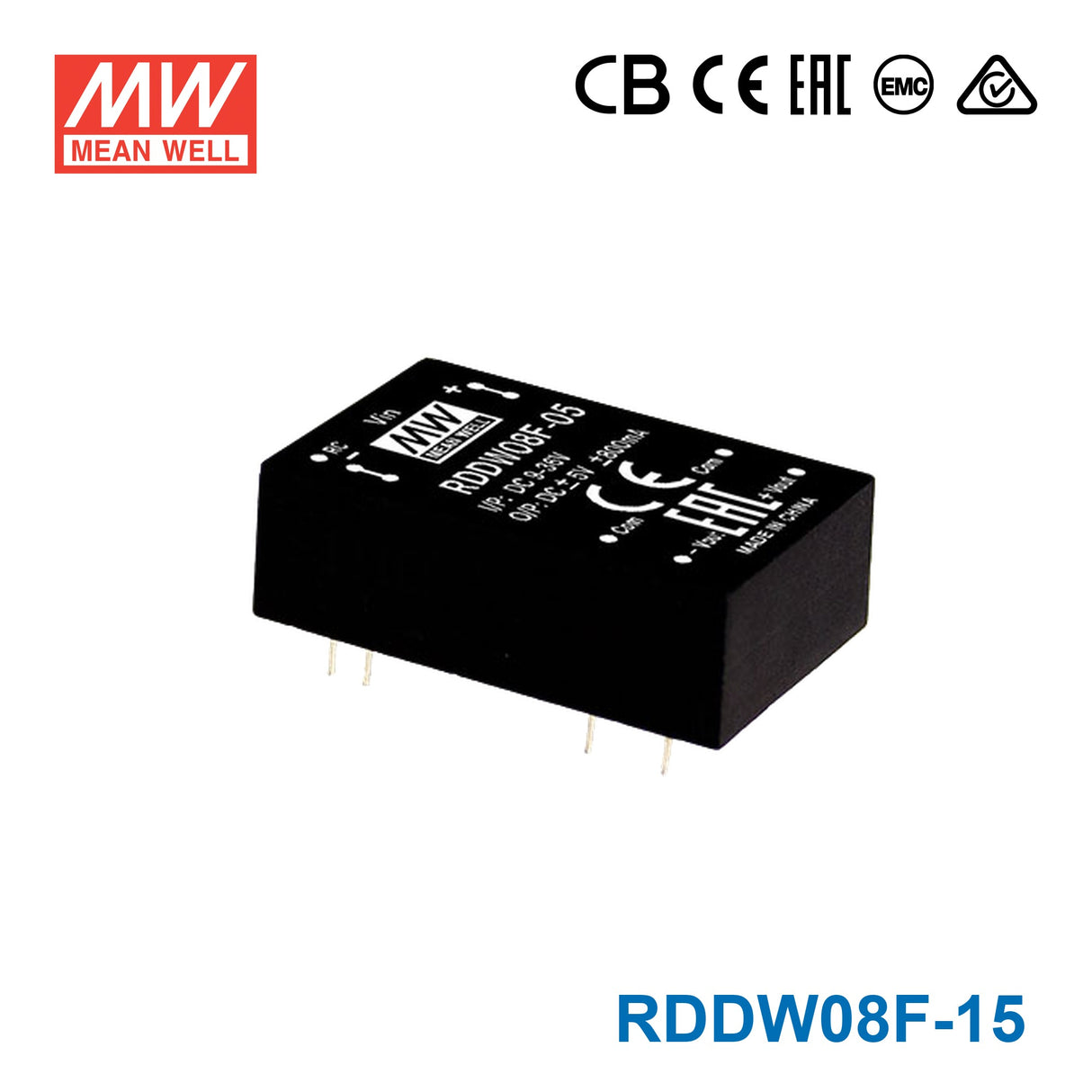

Mean Well RDDW08F-15 DC-DC Converter - 8W - 3~36V in ±15V out 256mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RDDW08F-15 DC-DC Converter - 8W - 3~36V in ±15V out 256mA
The RDDW08F is a 8W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating8 Watt
-
Output Voltage15 Volt
-
Rated Current0.25 Ampere
-
Input Voltage3V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the RDDW08F-15 for ±15V analog or instrumentation circuitry?
Yes, this converter is aimed at low-power constant voltage applications that need a ±15V output from a 3-36 input range. With an 8W rating, it is better suited to analog, instrumentation, or signal-interface sections than to larger 15V loads.
Is the RDDW08F-15 suitable for compact embedded electronics that need ±15V support power?
Its 31.8 × 20.3 × 10.2 mm size and 0.0184 kg weight make it practical for compact embedded assemblies. The 8W output class fits support-power duties where space is limited and the load is modest.
Can the RDDW08F-15 be used where the input source varies across low-voltage systems?
The converter accepts a 3-36 input range, which gives it flexibility across a broad span of low-voltage source conditions. That is useful when the same design needs to accommodate different upstream supply levels while keeping a constant ±15V output.
Would the RDDW08F-15 fit industrial signal-processing or interface modules?
It can fit industrial signal-processing or interface modules that need ±15V at low power. The 8W limit keeps it in the support-power category, so it is best matched to electronics modules rather than larger field or motion devices.
What are the main differences between the RDDW08F-15 and its sibling models?
All listed RDDW08F versions are 8W units with the same 3-36 input range, 31.8 × 20.3 × 10.2 mm dimensions, and 0.0184 kg weight. The difference is the output specification: RDDW08F-05 is 5V and 800A, RDDW08F-12 is 12V and 333A, and RDDW08F-15 is 15V and 256A.
Is the RDDW08F-15 rated for outdoor use or extreme temperatures?
The operating temperature range is -40°C to +85°C, which supports demanding temperature conditions in industrial or embedded equipment. No IP rating is provided, so the supplied specs do not define it as suitable for outdoor exposure.
