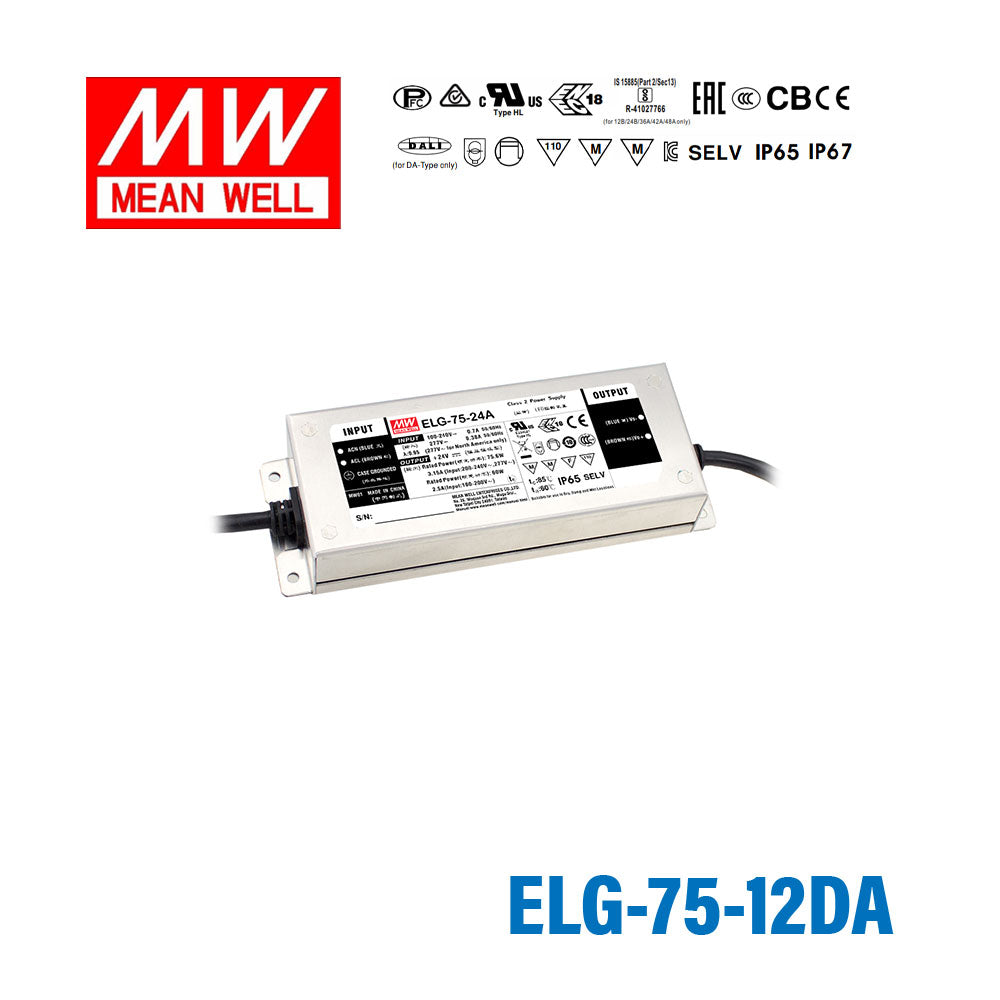

Mean Well ELG-75-12DA Power Supply 60W 12V - DALI
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the ELG-75-12DA be used with a DALI lighting control system in a commercial building?
Yes. The DA suffix indicates this driver includes a DALI interface, which is directly compatible with DALI bus controllers, building management systems, and smart lighting panels used in commercial and institutional buildings for centralized dimming and scene control.
Is the ELG-75-12DA suitable for outdoor LED strip or signage applications?
Yes. The ELG-75-12DA carries an IP67 waterproof rating, so it can be installed in outdoor sign boxes, landscape enclosures, or any location exposed to rain and moisture. Its operating range of -40°C to +85°C covers typical outdoor temperature swings.
Can the ELG-75-12DA drive 12V LED strip used in retail display lighting with dimming control?
Yes. This driver suits retail display and shelf-edge LED strip at 12V. With DALI dimming, lighting levels can be adjusted centrally from a retail control system to set scene brightness, highlight products, or comply with energy-management schedules—all without manual dimmer switches.
How many meters of 12V LED strip can the ELG-75-12DA support?
The ELG-75-12DA delivers 60W at 12V. For a 10 W/m strip that is up to 6 meters; for a 6 W/m strip, up to 10 meters. Divide 60W by your strip's rated power per meter and apply a 20% derating margin for long-term reliability.
Is this driver appropriate for museum or gallery LED accent lighting that requires precise dimming?
Yes. DALI dimming provides smooth, flicker-free control suitable for fine-art and artefact lighting in galleries and museums where light levels must be carefully managed. The IP67 metal case also ensures reliable operation in climate-controlled rooms with condensation risk near cold walls.
Can the ELG-75-12DA be installed in an unenclosed outdoor location or direct rain exposure?
Yes. IP67 protection means the ELG-75-12DA is rated for temporary immersion in water up to 1 m depth for 30 minutes, and it tolerates sustained rain and splashing. The -40°C to +85°C operating range ensures reliable performance in all outdoor climates.
