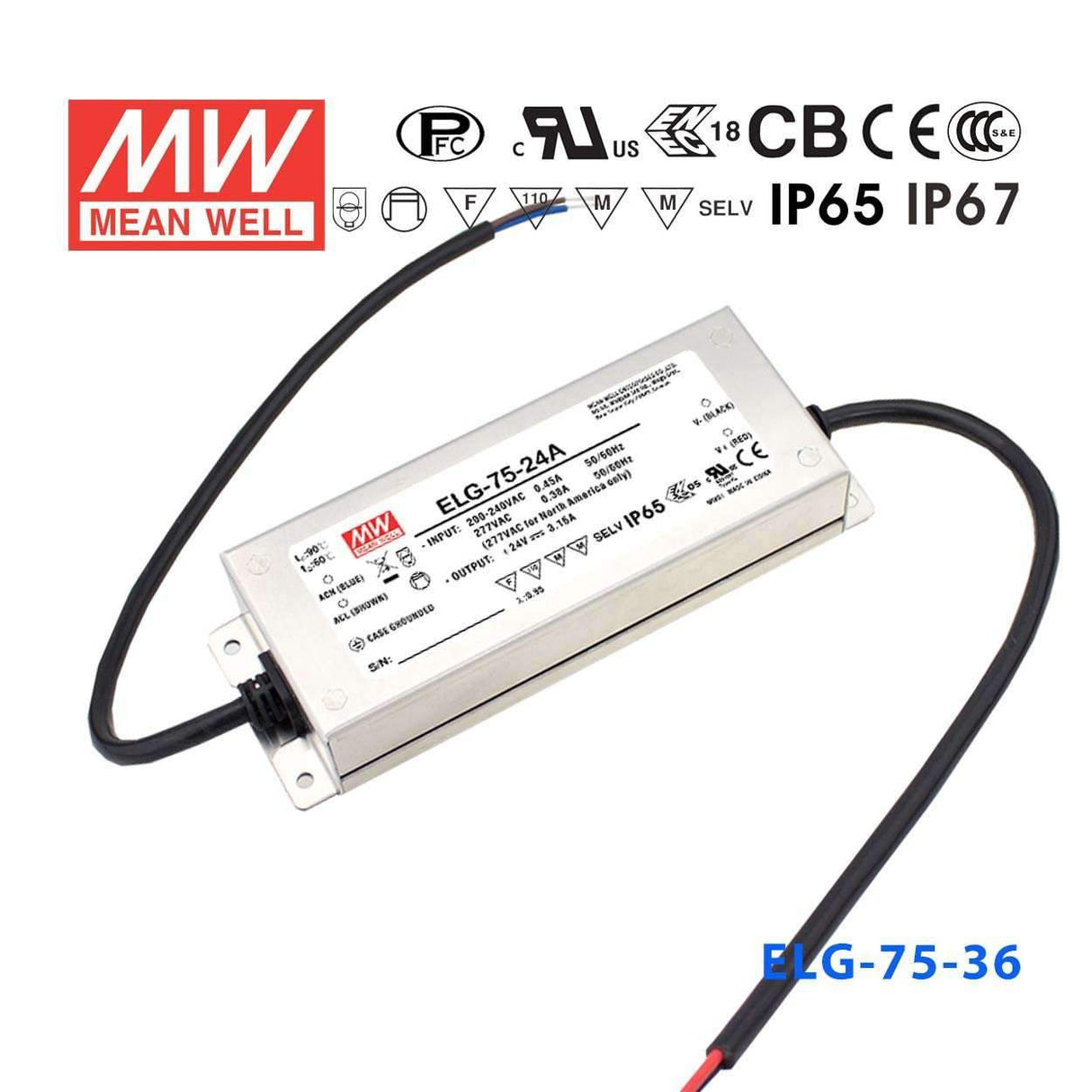

Mean Well ELG-75-36D2 AC-DC Single output LED Driver (CC) with PFC
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-75-36D2 be used to drive LED modules in a recessed commercial downlight?
Yes. The ELG-75-36D2 delivers 75W at 36V constant current at 2.1mA, which suits LED downlight modules specified for that voltage. The DALI-2 dimming interface also allows integration into a centralized lighting control system for the space.
Is the ELG-75-36D2 compatible with a DALI-2 smart lighting controller?
Yes, the 'D2' suffix denotes DALI-2 support, enabling addressable digital dimming over a shared DALI bus. This driver is appropriate for projects where individual zone control and automated scene management are required.
Can I install the ELG-75-36D2 in an outdoor or damp location?
The ELG-75-36D2 carries an IP67 rating, indicating dust-tight protection and the ability to withstand temporary immersion. With an operating temperature range of -40°C to +90°C, it is suitable for outdoor enclosures or damp indoor areas such as parking structures.
Can the ELG-75-36D2 drive a series string of LED signage modules?
This driver operates at constant current mode, and its 36V output at 2.1mA is suited to smaller LED signage modules or arrays where each module's forward voltage is close to 36V. Ensure the LED load's forward voltage requirement aligns with the driver's output voltage.
How does the ELG-75-36D2 compare to the ELG-75-36DA in terms of dimming?
The ELG-75-36D2 uses DALI-2, the newer digital dimming standard with improved device type definitions and backward compatibility. The ELG-75-36DA uses the original DALI protocol. Both models are rated at 75W and share the same form factor and IP67 rating.
What input voltages does the ELG-75-36D2 support?
The driver accepts 100–305VAC, covering standard 120V North American and 230V European mains without modification. This universal input range makes it deployable across multiple regions using the same hardware.
