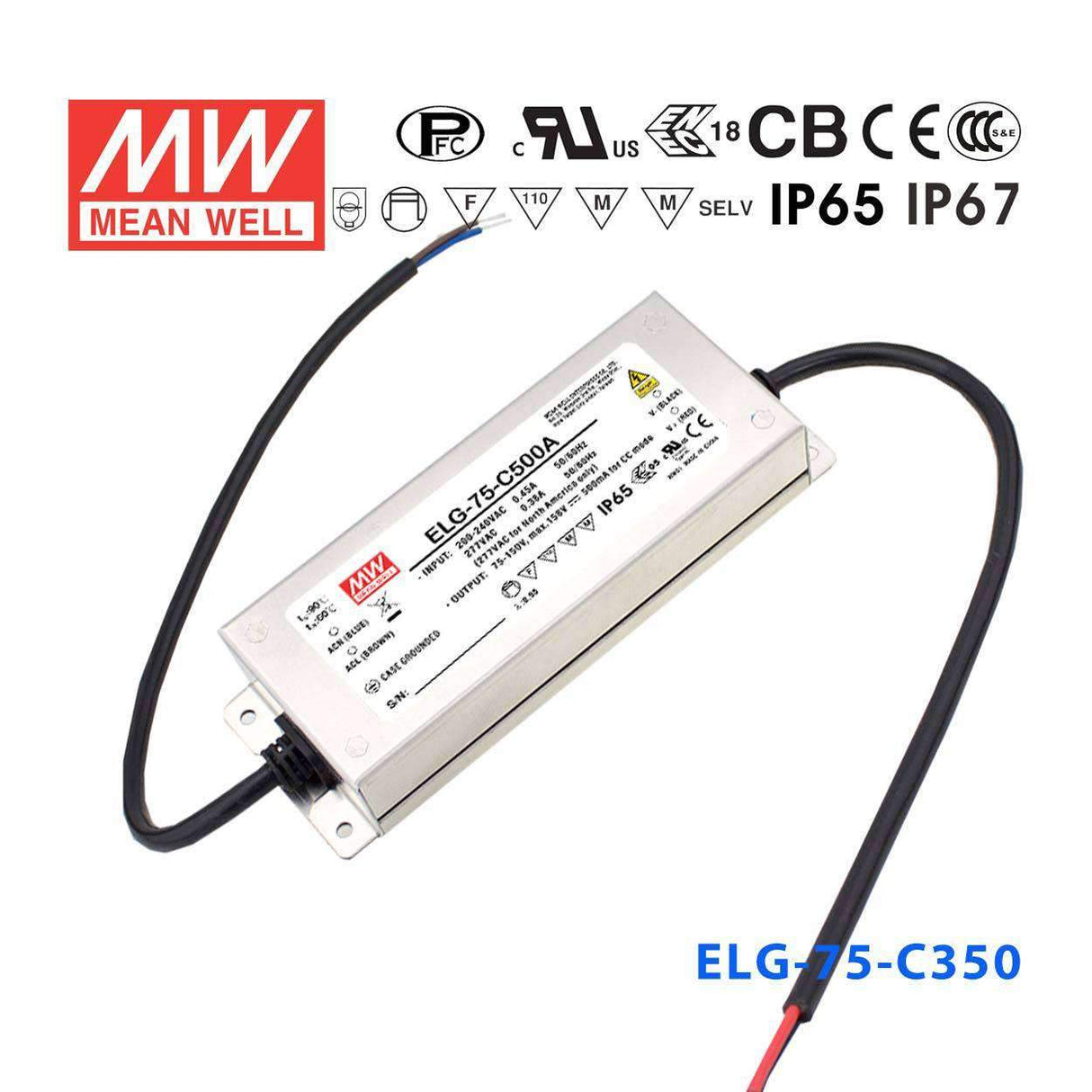

Mean Well ELG-75-C350D2 AC-DC Single output LED Driver Constant Current Mode with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-75-C350D2 AC-DC Single output LED Driver Constant Cur...
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75 Watt
-
Output Voltage214 Volt
-
Rated Current0.35 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can I use the ELG-75-C350D2 to power LED downlights with a 0–10V dimming control system?
Yes. The D2-suffix indicates this driver supports 0–10V dimming (as well as PWM and resistance dimming). This makes it directly compatible with standard 0–10V lighting control systems widely used in commercial downlight installations. The constant current output of 350mA and 75W power rating suit a range of LED downlight modules.
Is the ELG-75-C350D2 suitable for outdoor LED signage in variable weather conditions?
Yes. The ELG-75-C350D2 carries an IP67 waterproof rating and operates from -40°C to +80°C, making it appropriate for outdoor signage enclosures exposed to rain, humidity, and temperature extremes. Its wide input range of 100–305VAC supports international mains supplies.
Can this driver be used in a cold-room or freezer LED lighting application?
Yes. The -40°C lower operating temperature limit means the ELG-75-C350D2 functions reliably in freezer and cold-room environments. The IP67-rated sealed metal case prevents moisture and condensation from reaching internal components.
How many LEDs can I connect to the ELG-75-C350D2 in series?
The CC voltage range for the ELG-75-C350D2 is 100–305V, which is broader than some other variants in this family. The actual number of LEDs depends on the forward voltage of each LED you are using; the combined string forward voltage must fall within 100–305V. Divide that window by your LED's forward voltage to determine the feasible series count.
What certifications does the ELG-75-C350D2 hold?
The ELG-75-C350D2 is certified to BSMI, CB, CE, EAC, and UL standards. These certifications cover key markets including North America, Europe, and Taiwan, though the certification set is smaller than on the B and DA variants.
What is the physical size of the ELG-75-C350D2 and how does it fit in a standard driver compartment?
The ELG-75-C350D2 measures 199.0 × 63.0 × 35.5 mm and weighs 0.85 kg. It is slightly longer than some siblings in the ELG-75 family, so verify that the target luminaire or enclosure can accommodate the 199 mm length before specifying this model.
How does the ELG-75-C350D2 differ from the ELG-75-C350B and ELG-75-C350DA?
All three are 75W, 350mA constant current drivers, but they differ in dimming interface and CC voltage range. The ELG-75-C350D2 uses a 0–10V / PWM / resistance (D2) interface and has a CC range of 100–305V. The ELG-75-C350B uses a three-in-one dimming interface with a CC range of 107–214V. The ELG-75-C350DA uses a DALI interface with a CC range of 107–214V. Choose based on your control system and required voltage headroom.
