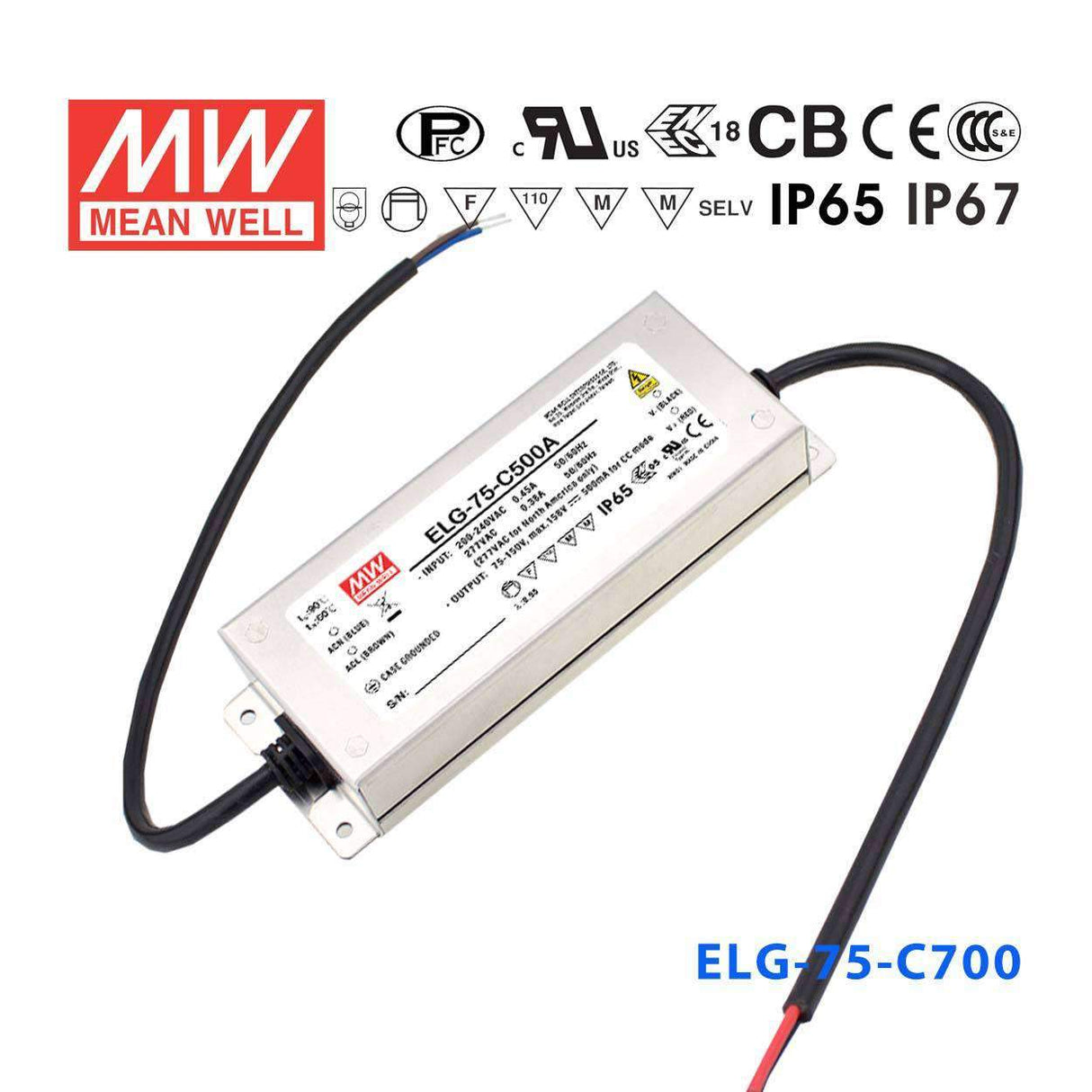

Mean Well ELG-75-C700D2 AC-DC Single output LED Driver Constant Current Mode with PFC
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-75-C700D2 AC-DC Single output LED Driver Constant Cur...
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75 Watt
-
Output Voltage107 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-75-C700D2 be used to drive LED downlights with PWM dimming in a D4i or DALI-2 compatible system?
The ELG-75-C700D2 uses the D2 suffix, which designates Mean Well's built-in PWM dimming function via a signal wire, not a DALI protocol. It is not natively DALI-2 compatible; for DALI control, the ELG-75-C700DA should be used instead. The D2 is suited to systems using a 0–10V or PWM dimming signal.
Is the ELG-75-C700D2 waterproof enough for an outdoor luminaire that may be exposed to rain?
Yes. The ELG-75-C700D2 carries an IP67 waterproof rating, providing protection against temporary immersion and dust. It is rated for operation from -40°C to +80°C, making it suitable for outdoor luminaires exposed to rain and a wide range of ambient temperatures.
Can the ELG-75-C700D2 power LED modules in a dimmable architectural wall-wash fixture?
Yes. At 75W and 700mA constant current, the ELG-75-C700D2 can drive LED modules in a dimmable wall-wash fixture. The output voltage is 107V, and the driver accepts a PWM or 0–10V dimming signal to vary brightness.
What LED configurations are compatible with the ELG-75-C700D2?
LED loads requiring 700mA constant current and a combined forward voltage up to 107V dc are compatible with this driver. The number of individual LEDs that can be connected in series depends on each LED's forward voltage specification.
Can the ELG-75-C700D2 be used for LED signage modules that require a dimmable constant current driver?
Yes. The ELG-75-C700D2 provides 700mA constant current at up to 75W with built-in D2 PWM dimming, which is compatible with LED signage modules that accept a dimming signal input. Its IP67 rating also makes it suitable for signage enclosures that may experience condensation.
How does the ELG-75-C700D2 compare to the ELG-75-C700B and ELG-75-C700DA in dimming method?
The ELG-75-C700D2 uses Mean Well's proprietary D2 built-in dimming via a two-wire signal (PWM or analog). The ELG-75-C700B supports external PWM or analog dimming via a dedicated dimming wire. The ELG-75-C700DA uses DALI digital protocol. All three output 700mA at approximately 75W constant current.
