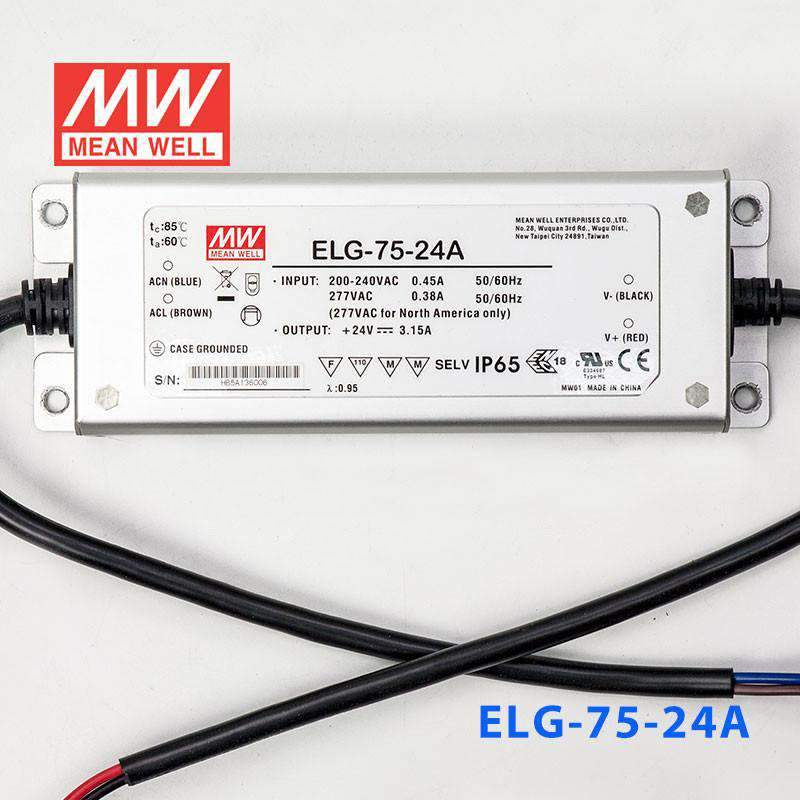

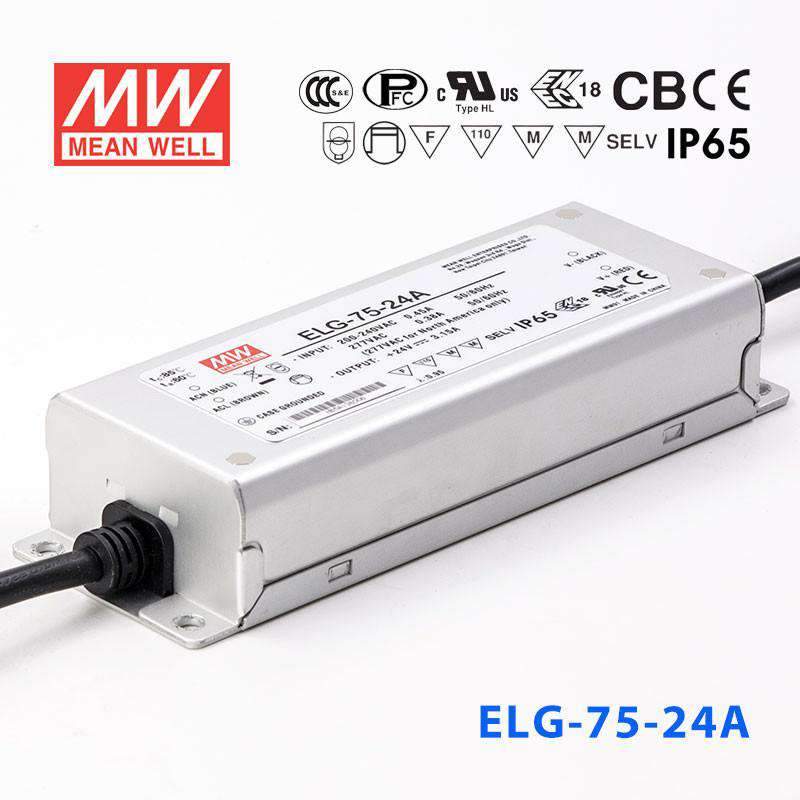

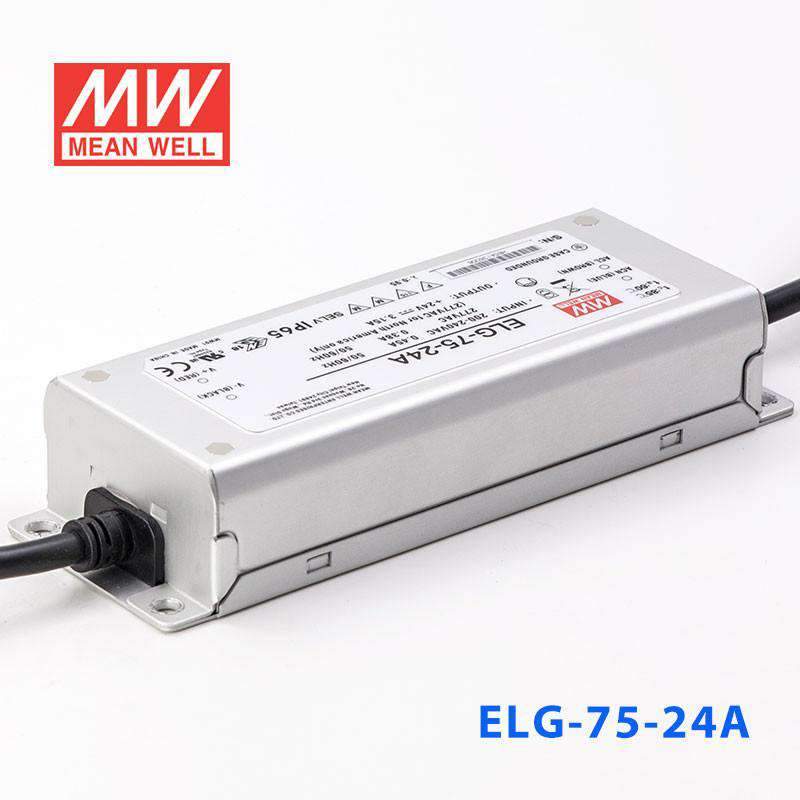

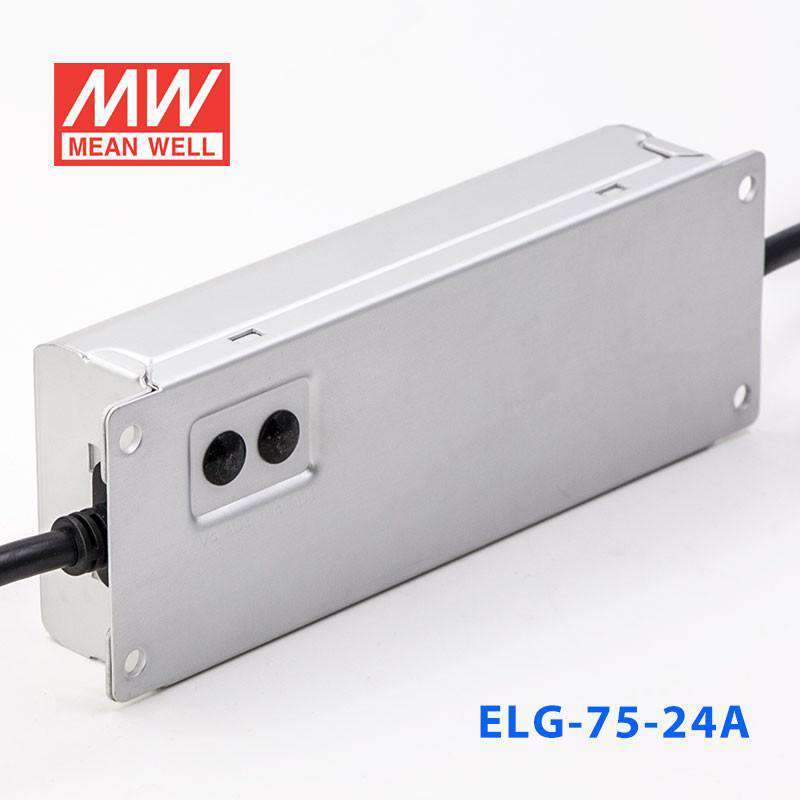

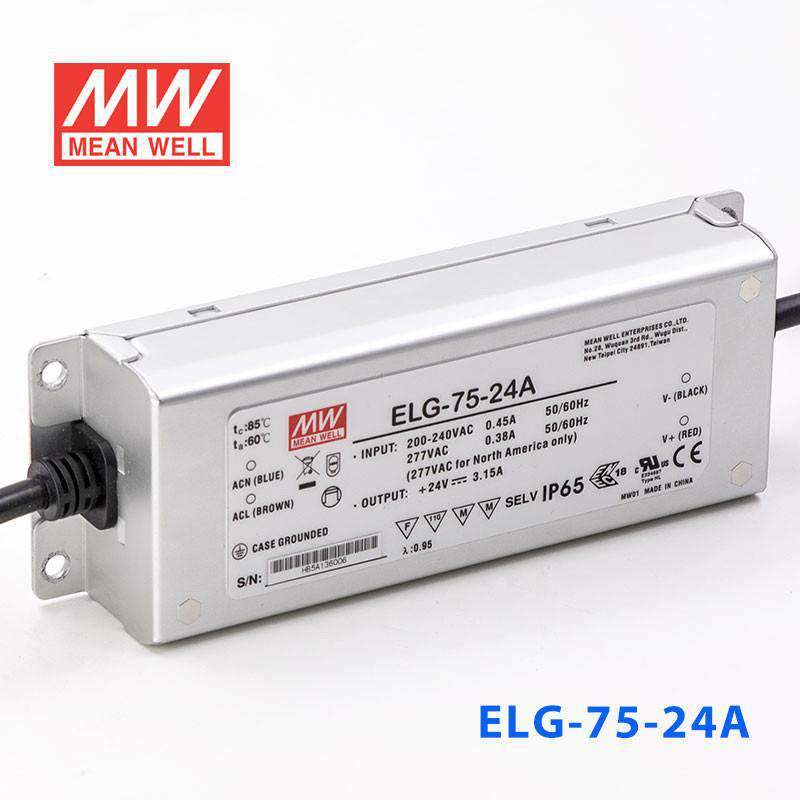

Mean Well ELG-75-24A Power Supply 75W 24V - Adjustable
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 91% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 50 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 180x63x35.5 |
| Packing | 16pcs / 13.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.15 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-75-24A be used to power 24V LED strip with adjustable output voltage?
Yes. The A suffix indicates this driver includes a built-in potentiometer for trimming the output voltage, allowing fine adjustment within the 12–24V CC voltage range. This is useful when strip voltage needs to be tuned to compensate for voltage drop over longer runs.
Is the ELG-75-24A suitable for outdoor LED strip or sign lighting?
The ELG-75-24A is rated IP65, providing complete dust protection and resistance to low-pressure water jets from any direction. This covers covered outdoor locations, sign enclosures with ventilation gaps, and sheltered facades, but it is not rated for direct rain immersion.
How many meters of 24V LED strip can the ELG-75-24A support?
The ELG-75-24A delivers 75.6W at 24V. For a 10 W/m strip that is up to 7.5 meters; for a 14.4 W/m strip, approximately 5.25 meters. Divide 75.6W by your strip's rated power per meter and leave a 20% safety margin to avoid thermal overload.
Can the ELG-75-24A be used for retail shelf or display-case LED strip lighting that requires adjustable brightness?
Yes. The output voltage trimmer on the A variant allows the installer to fine-tune strip brightness at commissioning, which is useful in retail environments where consistent lux levels across multiple display sections are required without adding an external dimmer.
Is the ELG-75-24A appropriate for 24V LED strip in cove or indirect architectural lighting?
Yes. The 75.6W output at 24V suits cove and indirect lighting runs in commercial interiors. The IP65 metal case handles the humidity that can accumulate in tight ceiling cavities, and the wide 100–305VAC input works on both 120V and 277V branch circuits.
Can the ELG-75-24A operate in a warm attic or enclosed luminaire housing that exceeds normal ambient temperatures?
The ELG-75-24A is rated to operate up to +85°C case temperature. In confined or poorly ventilated housings where ambient temperatures are elevated, ensure adequate airflow to stay within this limit, as sustained overtemperature will activate thermal protection and reduce driver lifespan.
