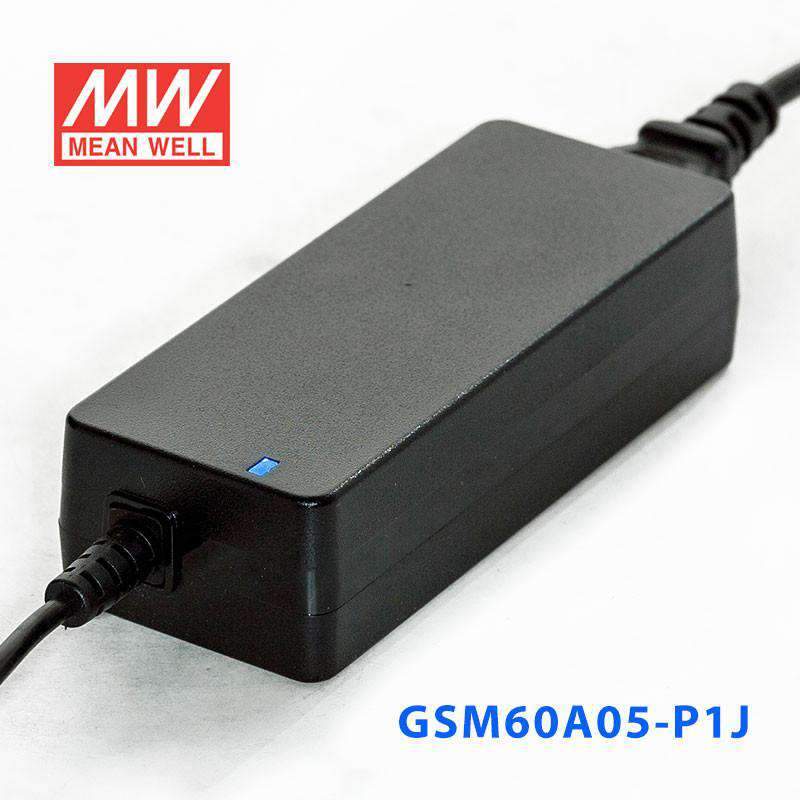

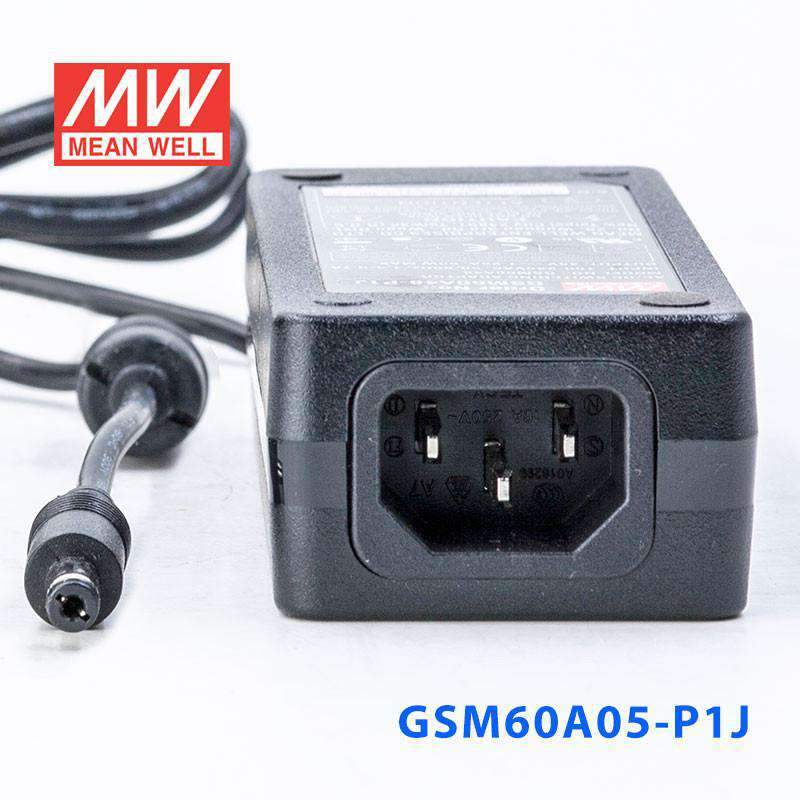

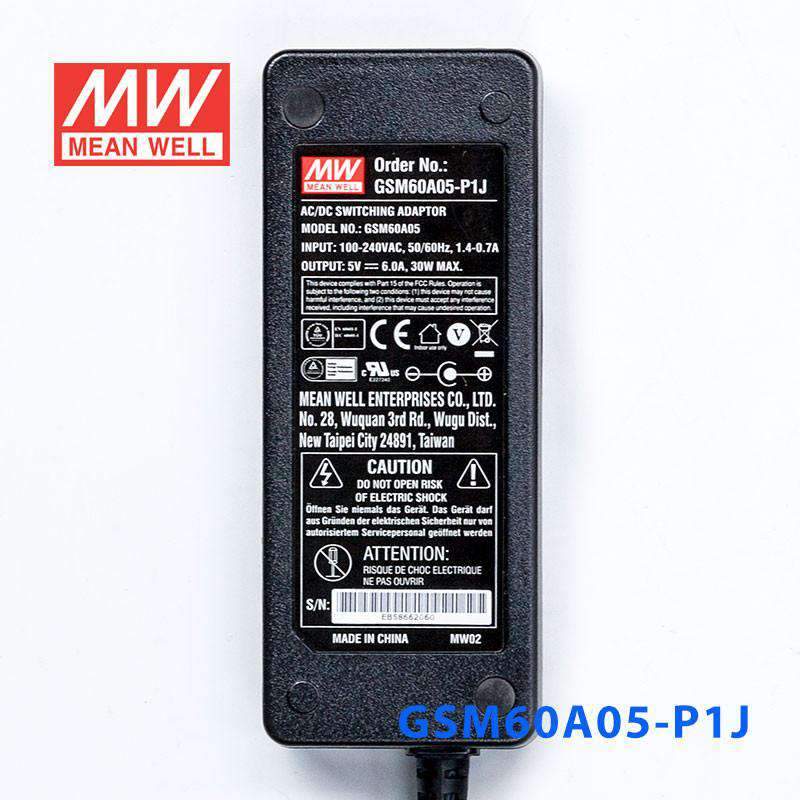

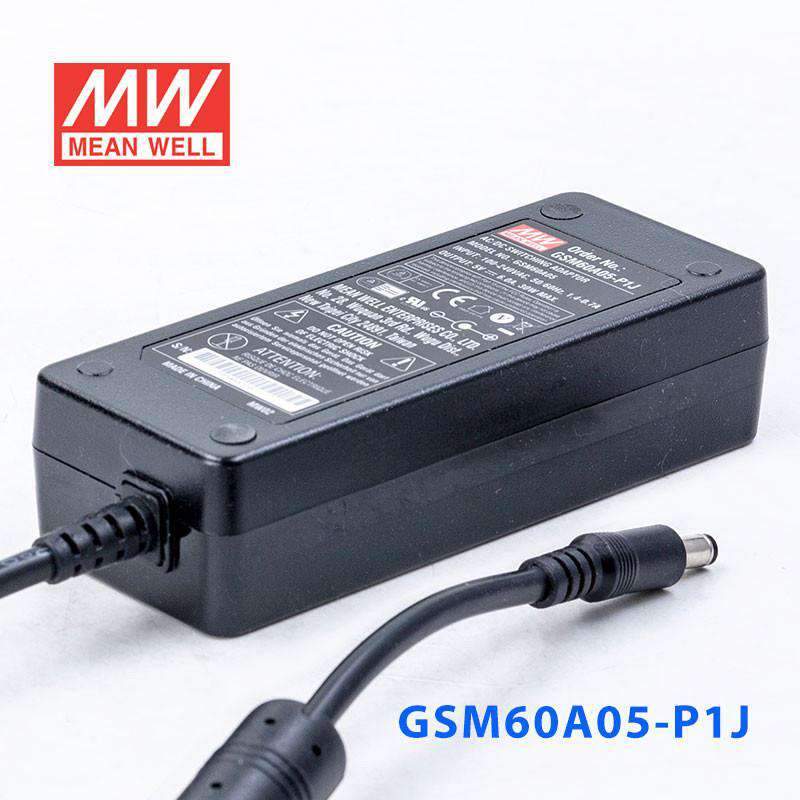

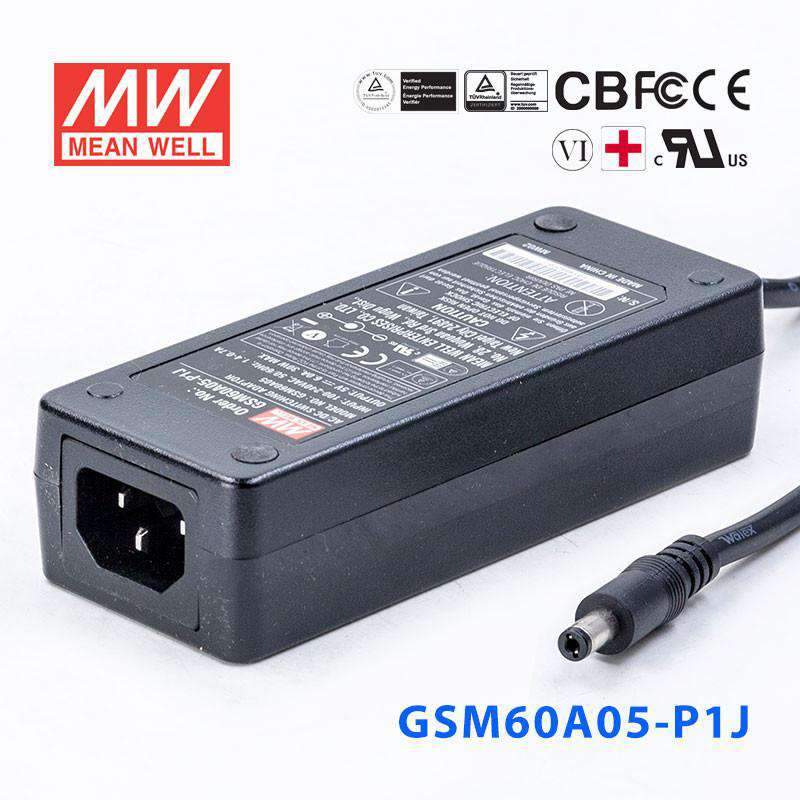

Mean Well GSM60A05-P1J Power Supply 30W 5V
The GSM60A05 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the GSM60A05-P1J for a 5V single-board computer or embedded controller?
Yes, if the device requires constant voltage 5V DC and draws no more than 6A. This model is rated for 30W total output, so it suits higher-current 5V embedded loads within that limit.
Is this 5V power supply suitable for USB-powered industrial electronics or hubs?
It can be suitable for 5V industrial electronics that need a stable constant voltage source. The available output is 5V at up to 6A, with a total rating of 30W.
Can the GSM60A05-P1J power logic-level control boards or development hardware from AC input?
Yes, it accepts 80-264VAC input and converts that to a constant voltage 5V output. It is appropriate for control boards or development hardware that need 5V DC and remain within 30W and 6A.
Would this model work for 5V industrial peripherals with higher current demand?
This version is better suited to 5V peripherals that need more current than many lower-current supplies can provide, because it delivers up to 6A. The total power still needs to stay within the 30W rating.
Is the GSM60A05-P1J meant for indoor or outdoor environments?
The specified operating temperature range is -30°C to +70°C. The provided specs do not show an IP rating, so indoor or outdoor exposure suitability cannot be confirmed from this data alone.
