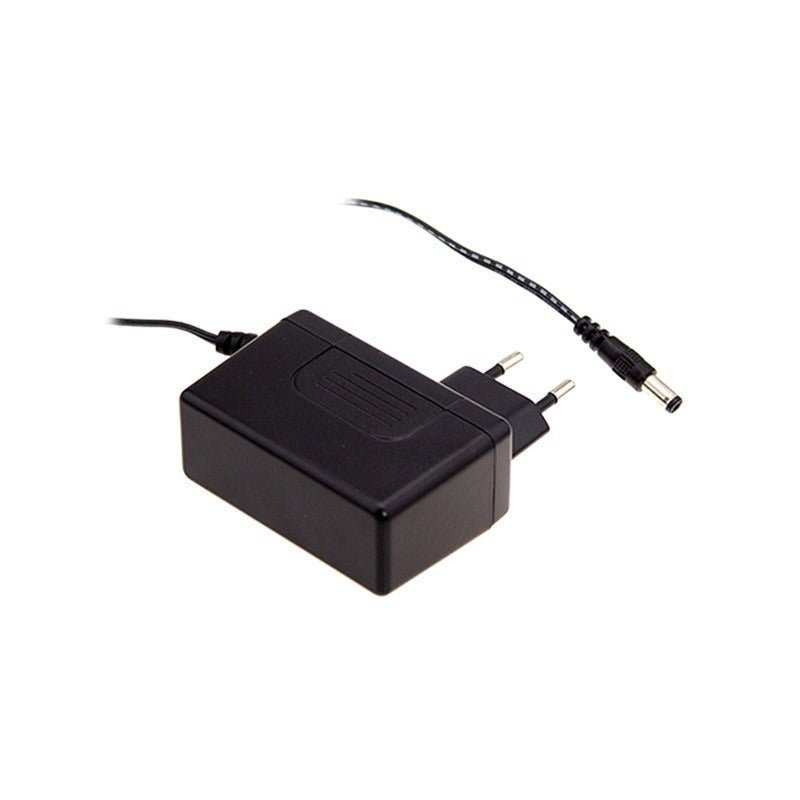

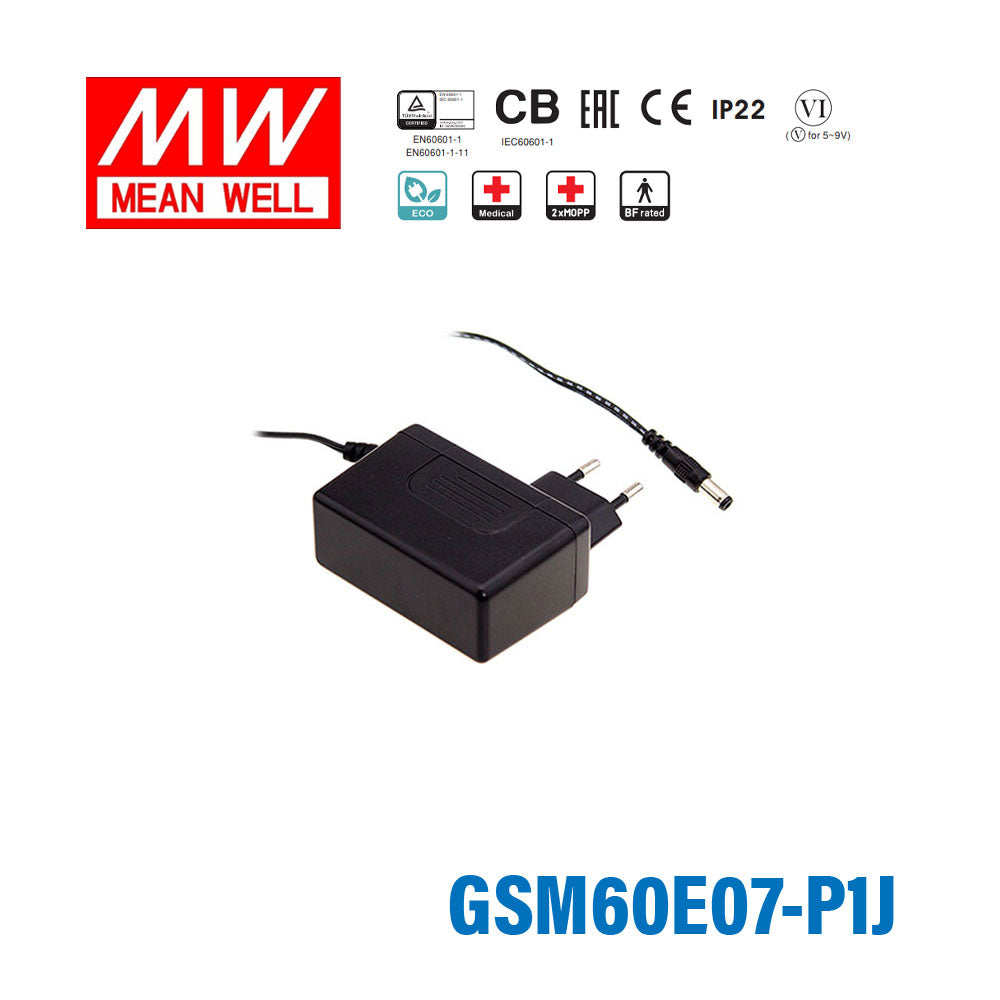

Mean Well GSM60E07-P1J Power Supply 40W 7.5V 6A
Overview
GSM60E07-P1J is the 7.5V output model of this series: rated current 6A, typical efficiency 85%.
GSM60E is a 60W ultra slim wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. GSM60E is a class Ⅱ power unit (no FG) equipped with the standard 2-Pin European plug, accepting the input range from 80VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various types of medical electronic devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 90% and the extremely low no-load power consumption below 0.15W, GSM60E is compliant with EU ErP and meet CoC version 5 (5~9V for Level Ⅴ). The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electrical hazards.
Features
- Ultra slim, compact size
- Medical safety approved (2 x MOPP) according to BS EN/EN60601-1/BS EN/EN60601-1-11
- Extremely Low leakage current
- 2 pole EURO plug, Class Ⅱ power unit
- No load power consumption <0.15W
- Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
- -30~+70℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM60E07
- DC VOLTAGENote.2
- 7.5V
- RATED CURRENT
- 6A
- CURRENT RANGE
- 0 ~ 6A
- RATED POWER (max.)
- 45W
- RIPPLE & NOISE (max.)Note.3
- 100mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATIONNote.6
- ±5.0%
- SETUP, RISE, HOLD UP TIME
- 1000ms, 100ms, 10ms/230VAC 1000ms, 100ms, 10ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 85%
- AC CURRENT
- 1.5A / 115VAC 0.8A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 50A / 115VAC 100A / 230VAC
- LEAKAGE CURRENT(max.)
- Touch current < 100μA/264VAC
PROTECTION
- OVERLOAD
- 105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
- ISOLATION LEVEL
- Pimary - Secondary: 2 x MOPP
- WITHSTAND VOLTAGE
- I/P-O/P:5656VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11) Class B Radiated emission BS EN/EN55011 (CISPR11) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/ EN55011, BS EN/ EN60601-1-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~6GHz) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Line-Line,1KV ineterconnect Lines at 100KHz rate Surge susceptibility BS EN/EN61000-4-5 Level 3, 2KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 8hours / day
- MTBF
- 400Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 75.5*32*47.5mm (L*W*H)
- PACKING
- 200g ; 60pcs / 13kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; other type available by customer requested
- CABLE
- See page 4~5 ; other type available by customer requested
Certifications & ratings
- IP level
- IP22
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 10% to 100% rated load.
- 7.Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
- Sleep apnea devices
Downloads
FAQ
Can I use the GSM60E07-P1J for 7.5V embedded electronics or industrial control boards?
Yes, if the equipment is designed for a constant 7.5V DC input. This model provides up to 6A with a maximum output of 45W, so the load must stay within those limits.
Is this 7.5V model suitable for low-voltage automation devices or specialty controllers?
It can be suitable for 7.5V automation or control hardware that requires constant-voltage power. The electrical limits to check are 7.5V output, 6A maximum current, and 45W maximum power.
Will the GSM60E07-P1J work for bench testing or evaluation of 7.5V devices?
It can be used for bench or evaluation setups when the target device needs regulated 7.5V DC. The 80-264VAC input range also makes it usable across a wide range of AC input conditions.
How can I tell if my 7.5V equipment is a good match for this power supply?
Your equipment should specify 7.5V DC input and operate with a constant-voltage source. Its current draw must not exceed 6A, and total power must remain within the 45W rating.
Is the GSM60E07-P1J suitable for indoor-only use, or can it handle wider environmental conditions?
The temperature rating is -30°C to +70°C, with load derating at higher temperatures per the derating curve. It is rated IP22, so outdoor, wet, or washdown use is not supported by the spec sheet.
