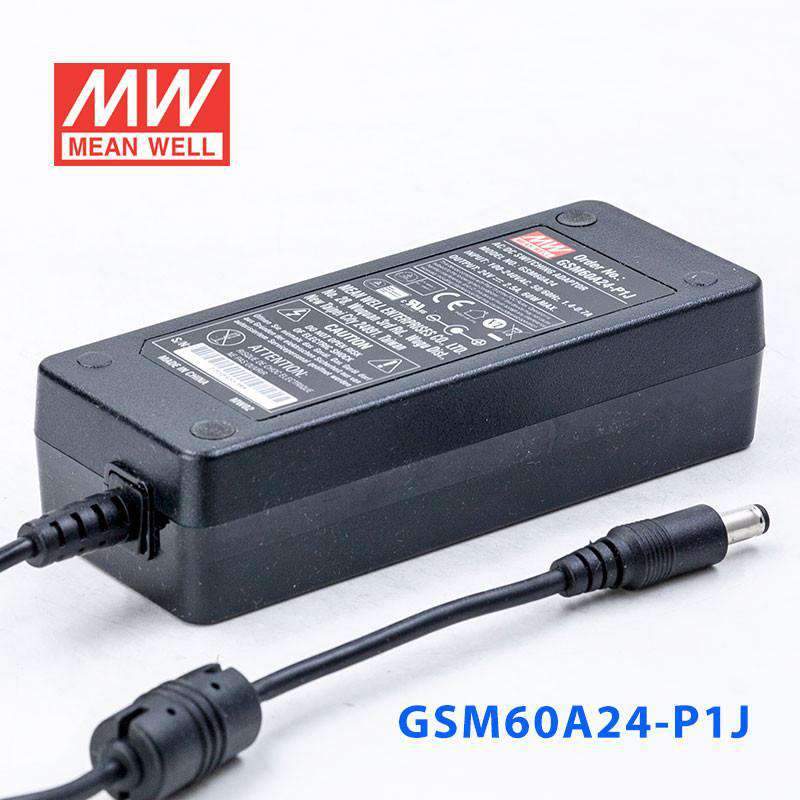

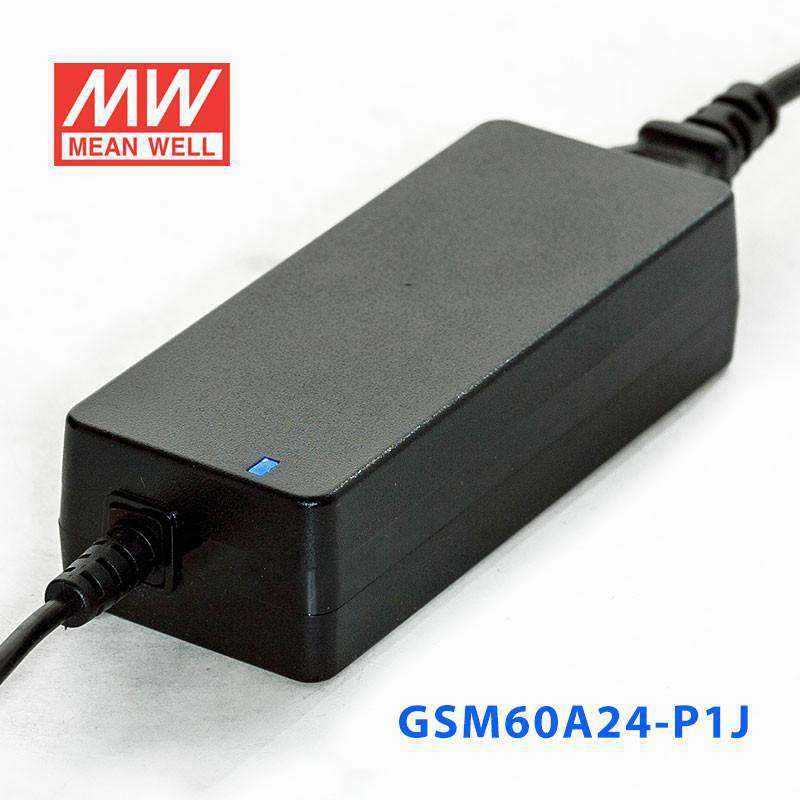

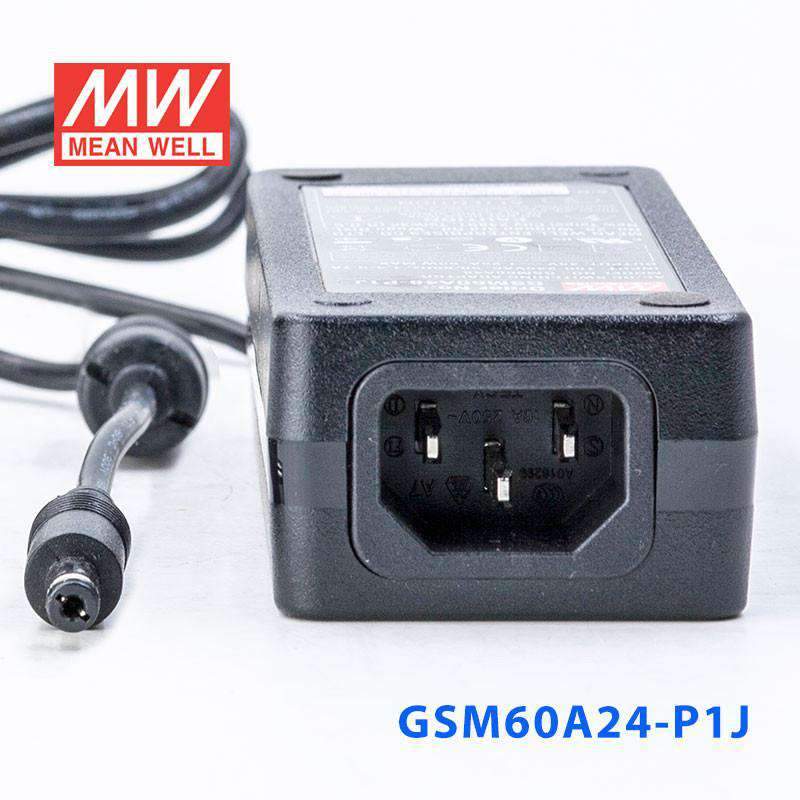

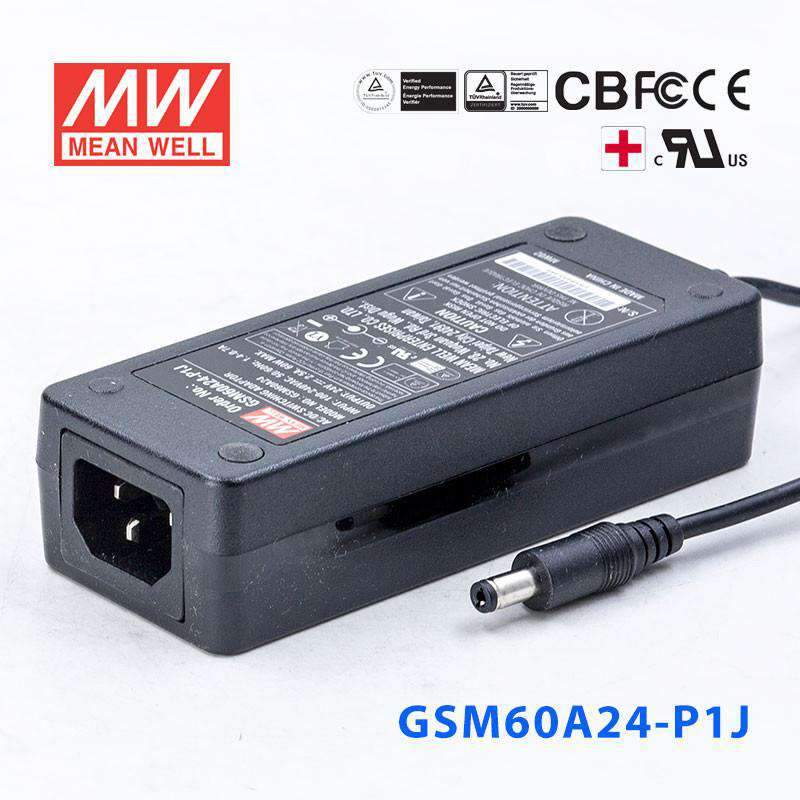

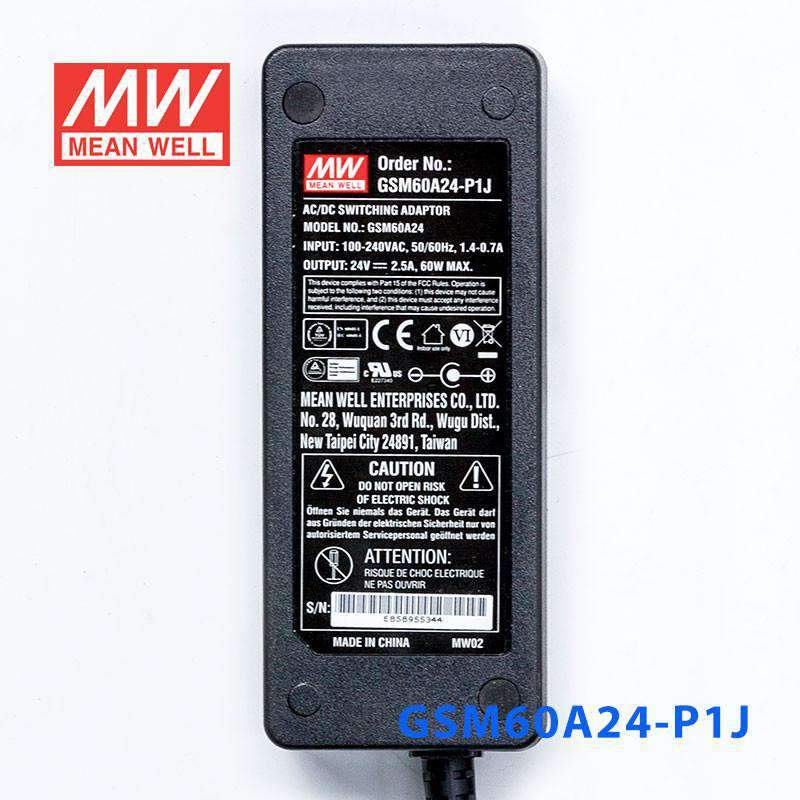

Mean Well GSM60A24-P1J Power Supply 60W 24V
The GSM60A24 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
What output does the Mean Well GSM60A24-P1J provide?
This model is a 60W AC/DC desktop power supply with a regulated 24V DC output. Its rated output current is 2.5A, making it suitable for equipment that requires 24V DC within that power range.
Is the GSM60A24-P1J suitable for medical applications?
Yes. The GSM60A24-P1J is medical safety approved and specifies 2 x MOPP isolation between primary and secondary. It also has very low leakage current of less than 50uA, which is an important consideration for medical environments.
What input voltage range does this power supply support?
This model accepts a universal AC input range of 80 to 264VAC, and it also supports 120 to 370VDC input. That wide range makes it suitable for use across many regional mains power systems without needing a different version for standard input voltage differences.
What DC plug does the GSM60A24-P1J use?
The standard DC plug for this model is the P1J type, specified as 2.1 mm x 5.5 mm x 11 mm with center positive polarity. Buyers should confirm that their equipment matches this plug format before purchase.
What protections are built into the GSM60A24-P1J?
This power supply includes short circuit, overload, over voltage, and over temperature protection. The overload protection operates in hiccup mode with auto-recovery, helping protect both the supply and the connected load during abnormal conditions.
Is this model designed for energy-efficient operation?
Yes. The GSM60A24-P1J offers efficiency up to 91.5% and has no-load power consumption below 0.1W. Those specifications make it a good fit for buyers who want to reduce standby power use in always-available equipment.
What operating environment is this power supply rated for?
The product description specifies a working temperature range of -30°C to +60°C, with reference to the output derating curve at higher temperatures. It is housed in a fully enclosed plastic case and includes approvals and EMC standards that support use in professional equipment environments.
