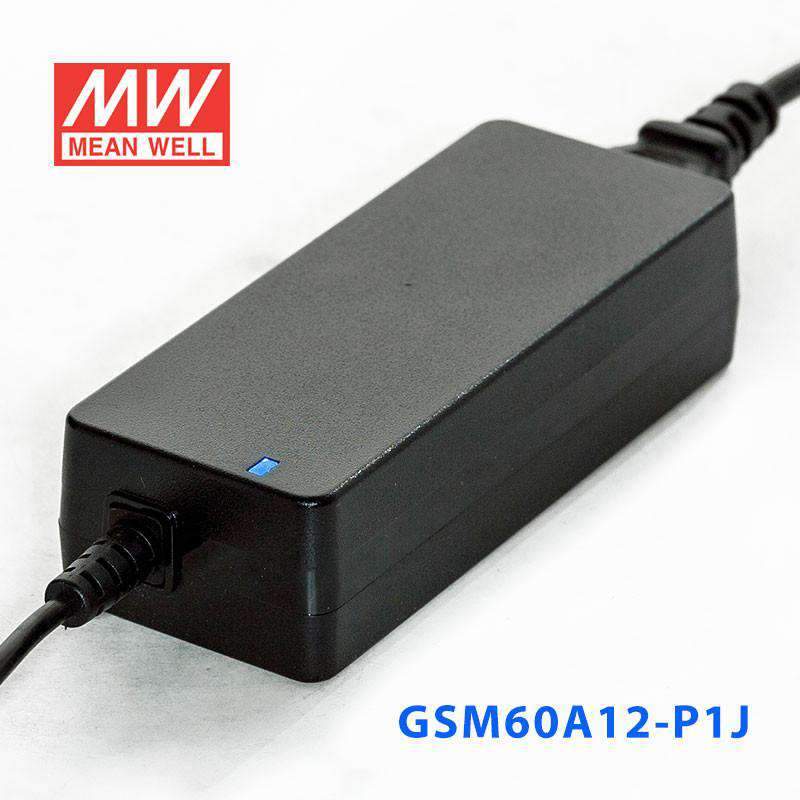

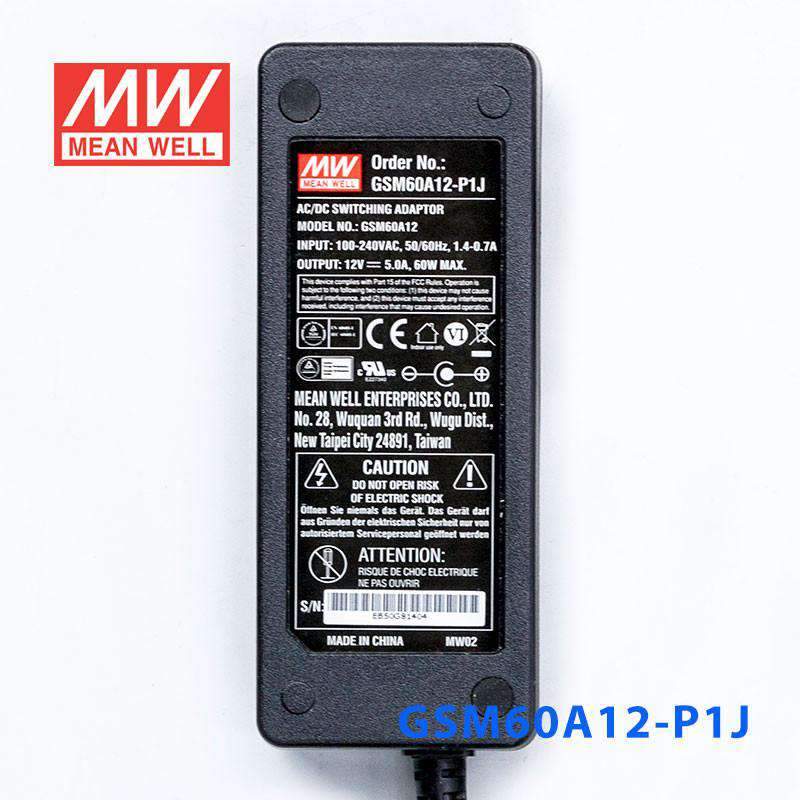

Mean Well GSM60A12-P1J Power Supply 60W 12V
The GSM60A12 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well GSM60A12-P1J?

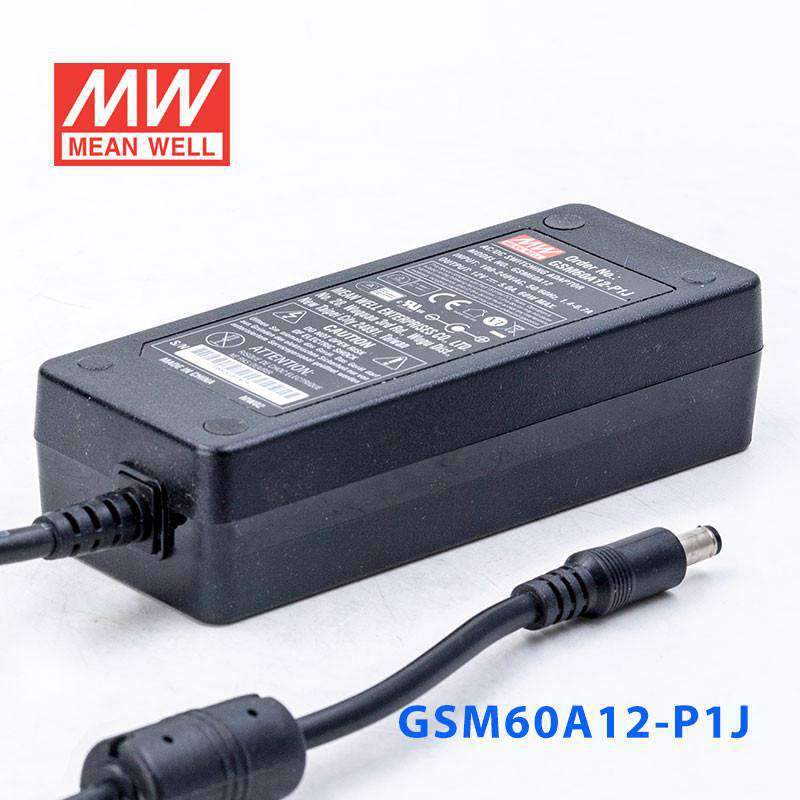

This model is a 60W AC/DC power supply with a 12V DC output and a rated current of 5A. It is designed as a desktop-style external adaptor. The standard DC plug is the P1J type, specified as 2.1ø x 5.5ø x 11mm.
Is the GSM60A12-P1J suitable for medical applications?
Yes, this model is medical safety approved and is specified with 2 x MOPP isolation between primary and secondary. The listed safety approvals include ANSI/AAMI ES60601-1, ES60601-1-11, and TUV EN60601/60601-1-11. Its low leakage current of less than 50uA also supports medical-use requirements.
What input voltage range does the GSM60A12-P1J support?

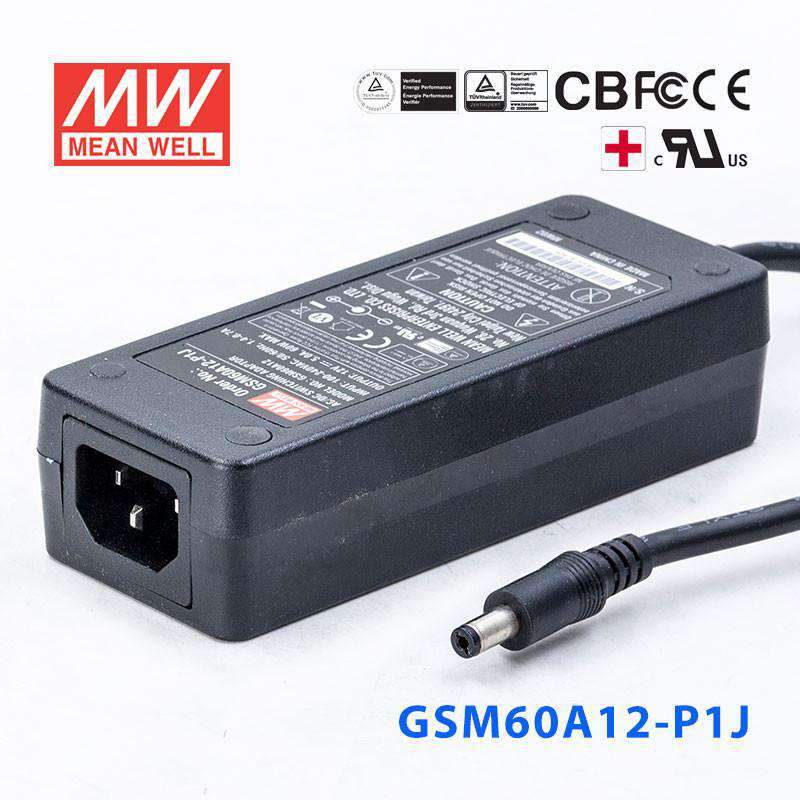

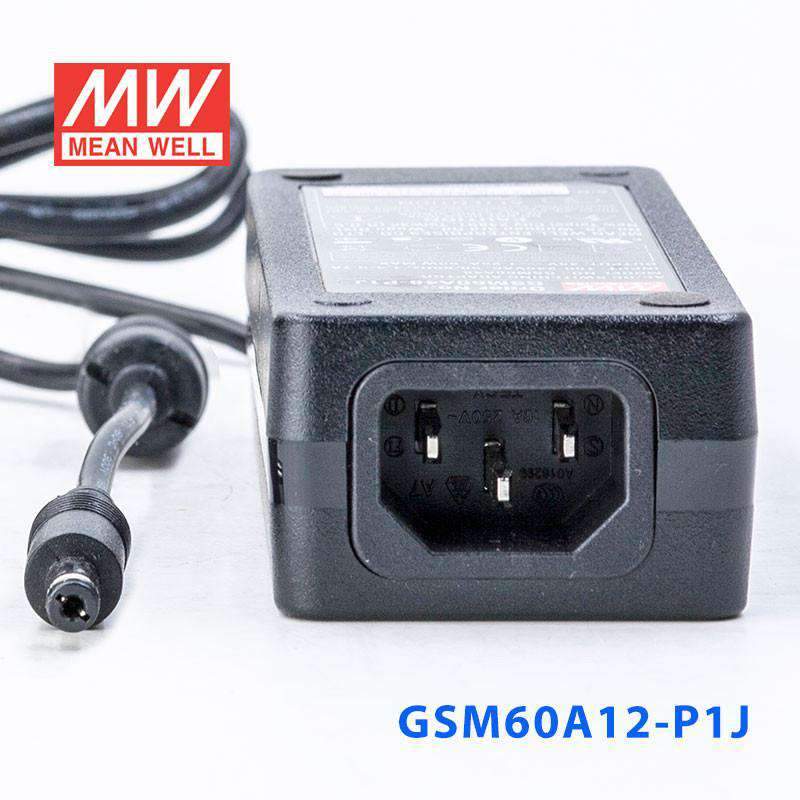

The GSM60A12-P1J has a universal input range of 80 to 264VAC and also supports 120 to 370VDC input. This full-range input makes it suitable for use across different mains power environments. It is built with a 2-pole AC inlet, IEC320-C8.
What protection features are included in this power supply?
This model includes protection against short circuit, overload, over voltage, and over temperature. The overload protection is specified at 105% to 160% of rated output and operates in hiccup mode with auto-recovery. These protections help safeguard the power supply during abnormal operating conditions.
Can the GSM60A12-P1J be used in demanding temperature environments?
The published working temperature range is -30 to +60°C, with reference to the output derating curve. The product data also lists a temperature range up to 70°C, but the operating specification in the description is -30 to +60°C. Buyers should evaluate the application against the stated working-temperature specification.
How efficient is the Mean Well GSM60A12-P1J?
This model is specified with efficiency up to 91.5%. It also has very low no-load power consumption of less than 0.1W. These characteristics make it a strong option where energy efficiency and low standby draw matter.
What are the physical size and warranty for the GSM60A12-P1J?
The housing dimensions are 125 x 50 x 31.5 mm, and the listed weight is 0.320 kg. The unit uses a fully enclosed plastic case and includes an LED power-on indicator. Mean Well specifies this model with a 3-year warranty.
