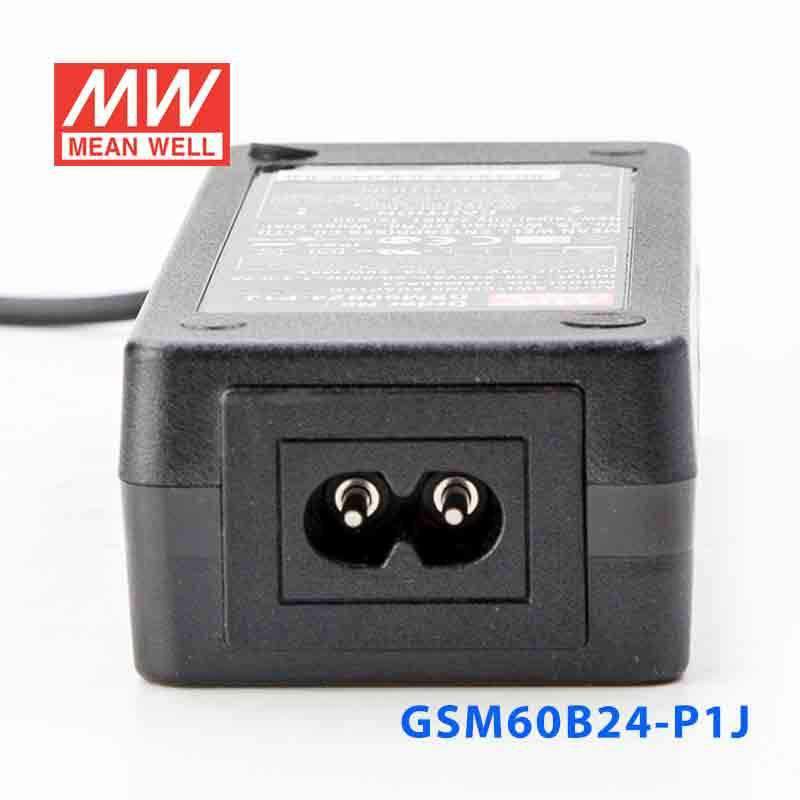

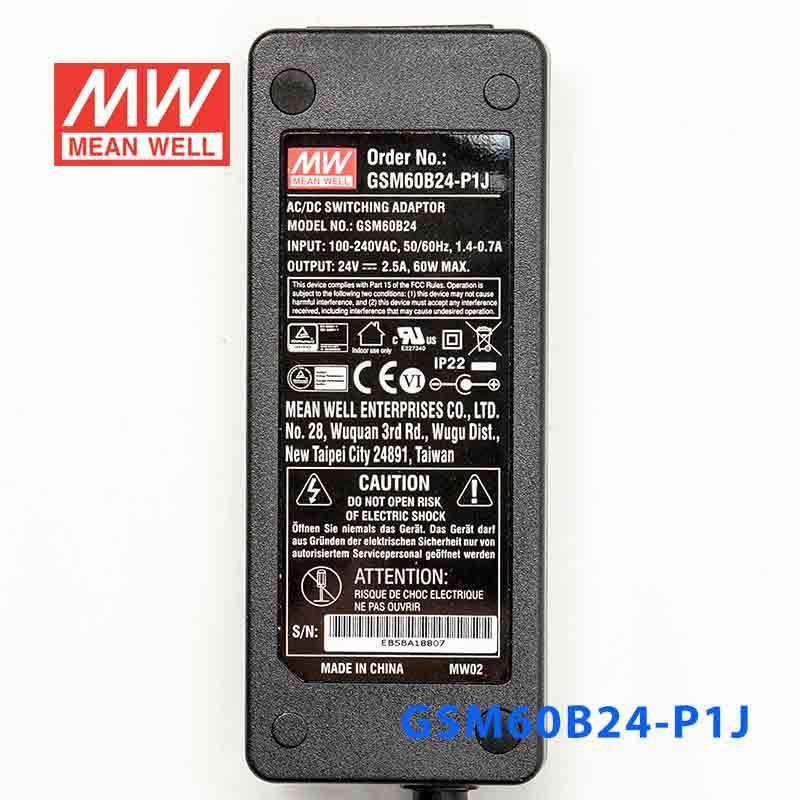

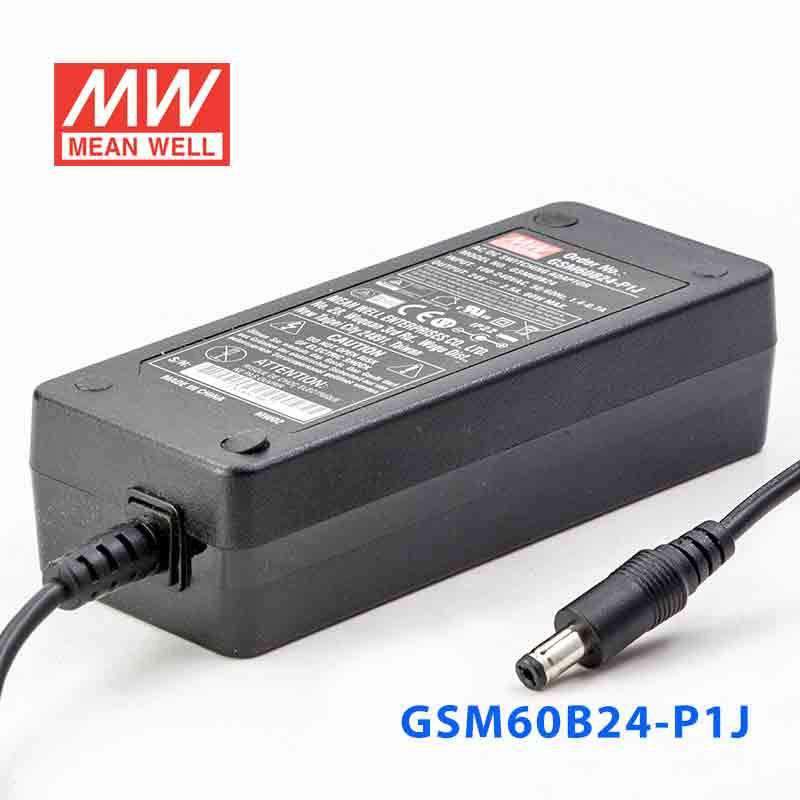

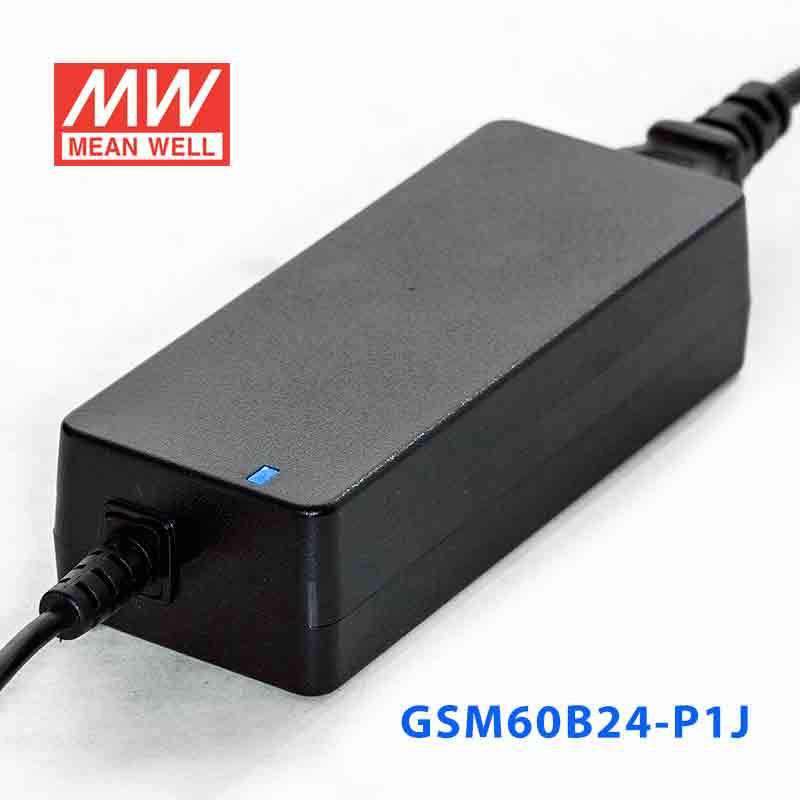

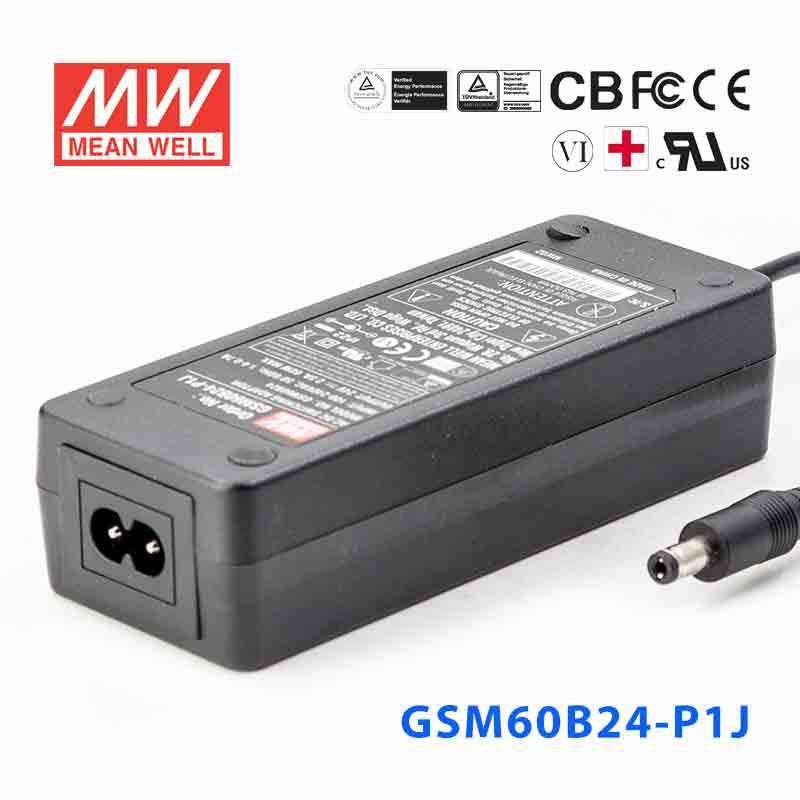

Mean Well GSM60B24-P1J Power Supply 60W 24V
The GSM60B24 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the GSM60B24-P1J to power a 24V PLC accessory or industrial control device?
Yes, if the equipment requires 24V DC constant-voltage input. This supply can provide up to 2.5A with a total output of 60W, so the connected 24V load must stay within those limits.
Is this 24V model suitable for automation sensors, relays, or interface modules?
It can be used with 24V automation hardware that is designed for constant-voltage power. The sizing limits are 24V output, 2.5A maximum current, and 60W maximum power.
Can the GSM60B24-P1J be used for 24V embedded systems or industrial test equipment?
It is a practical option for embedded or test setups that need regulated 24V DC. Its 80-264VAC input range also supports operation across a wide range of AC input conditions.
Will this power supply work for 24V HMI or communications equipment in a control enclosure?
It can power 24V HMI, gateway, or communications devices if their total requirement stays at or below 2.5A and 60W. The output mode is constant voltage, so it should be matched only with equipment specified for 24V DC input.
Is the GSM60B24-P1J appropriate for indoor or outdoor use?
The unit is rated for operation from -30°C to +70°C, which covers a wide ambient temperature range. However, no IP rating is provided in the listed specs, so exposure to rain, washdown, or other outdoor moisture conditions cannot be confirmed from this information.
