Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

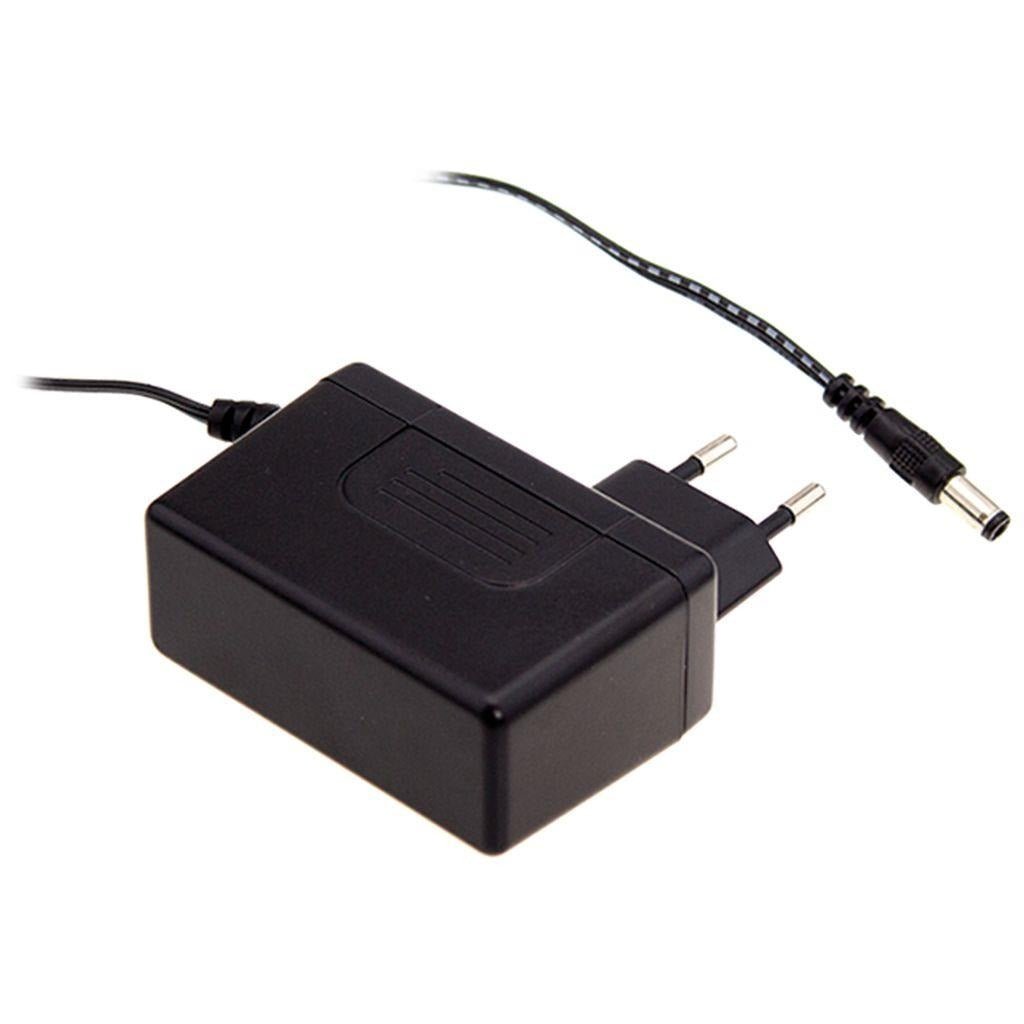

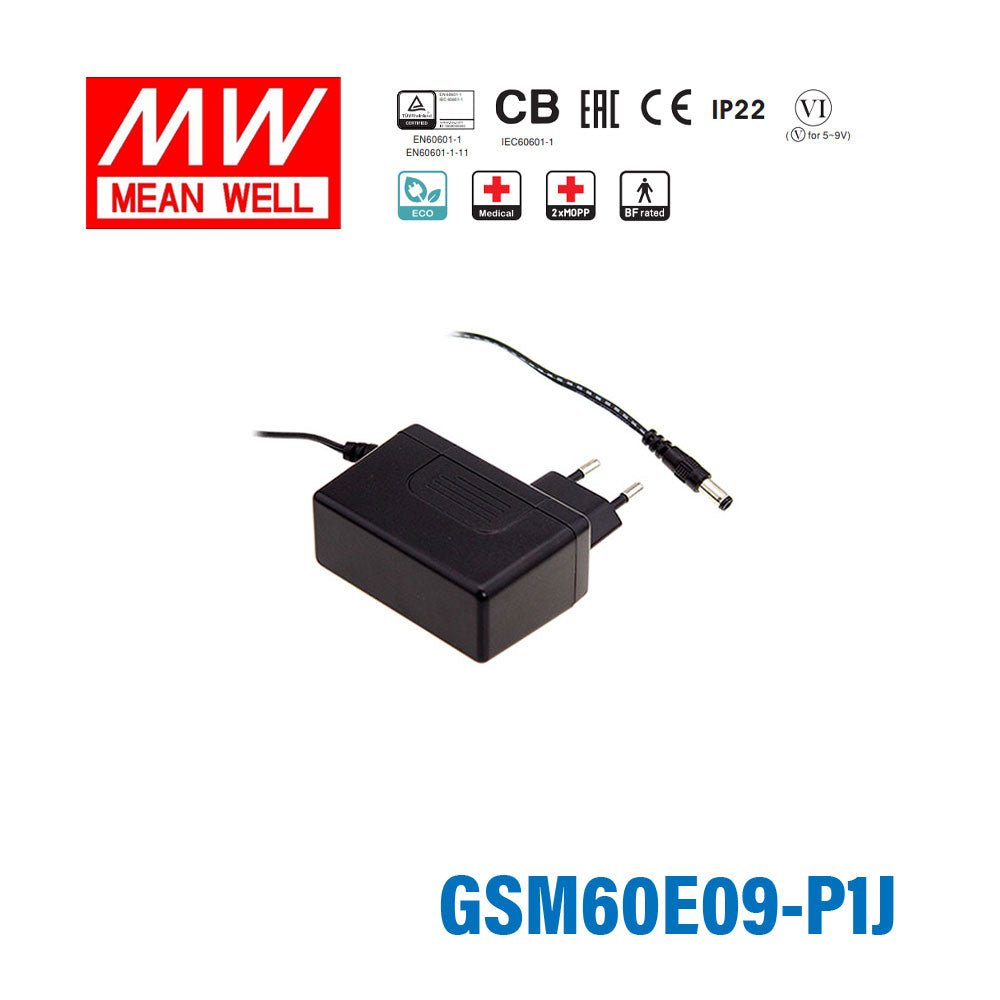

Mean Well GSM60E09-P1J Power 49.5W 9V
The GSM60E09 is a 60W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating49.5 Watt
-
Output Voltage9 Volt
-
Rated Current5.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width1.87 in
-
Height1.26 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the GSM60E09-P1J for a 9V embedded controller or industrial interface?
Yes, this model is a constant voltage 9V power supply rated for up to 49.5W and 5.5A. It fits 9V embedded controllers, operator interfaces, or industrial electronics that need regulated 9V DC and stay within those output limits.
Is the GSM60E09-P1J suitable for 9V test and measurement equipment?
It can be a fit for bench or portable test devices that require a constant 9V DC source. The available output is 49.5W at 5.5A, so the equipment load needs to remain at or below that rating.
Can this 9V power supply run industrial sensors or small automation peripherals?
It is appropriate for 9V sensor groups, control accessories, or embedded automation peripherals that are designed for constant voltage input. The key check is that the total load does not exceed 49.5W or 5.5A at 9V.
Would the GSM60E09-P1J work for legacy 9V IT or communications hardware?
It may be suitable where older IT or communications devices specifically call for regulated 9V DC. Its wide 80-264VAC input also helps in installations that need to accept different AC input conditions while delivering a fixed 9V output.
Is the GSM60E09-P1J suitable for indoor or outdoor use?
The listed operating temperature is -30°C to +70°C, so the temperature range is broad for indoor equipment environments. No IP rating is provided in the product specs, so the listing does not establish suitability for outdoor exposure or washdown conditions.
