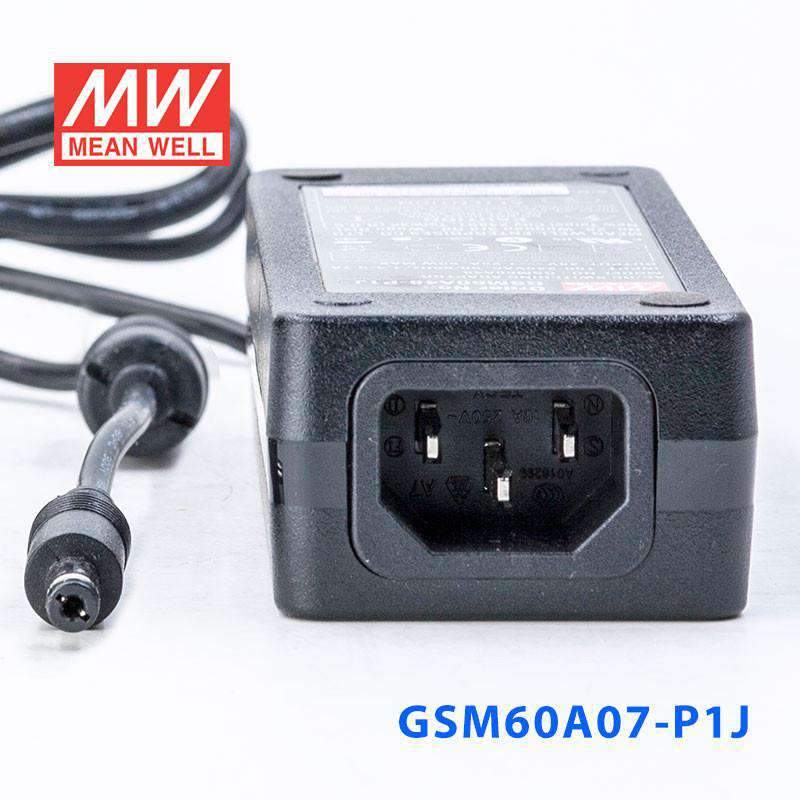

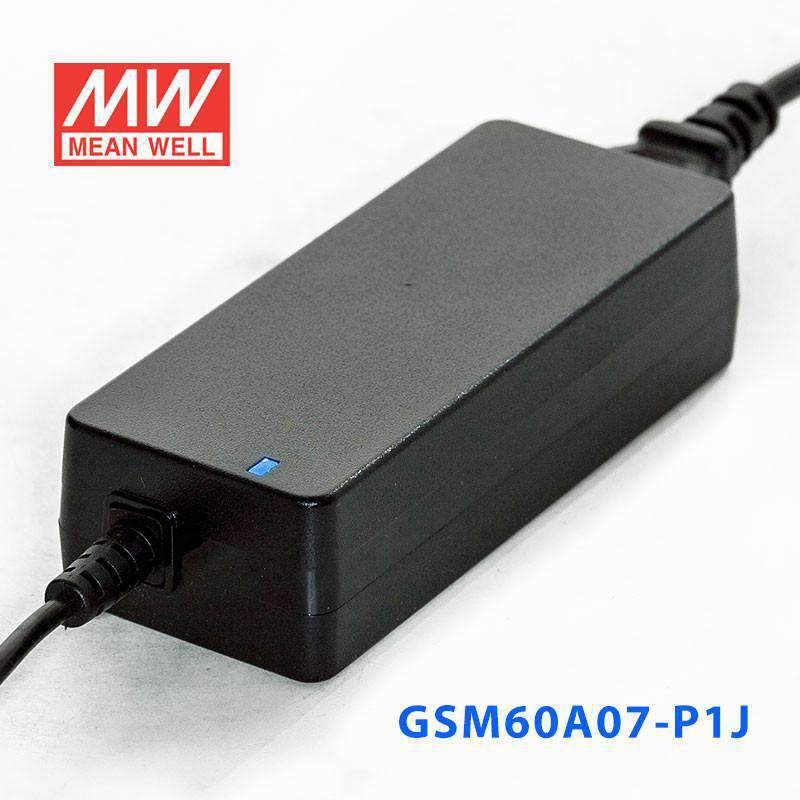

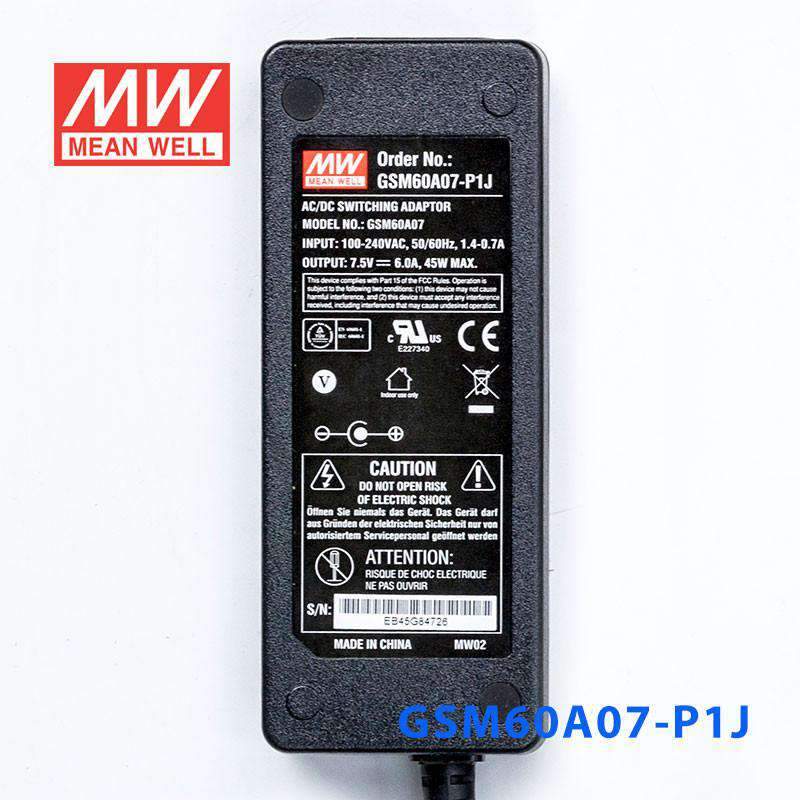

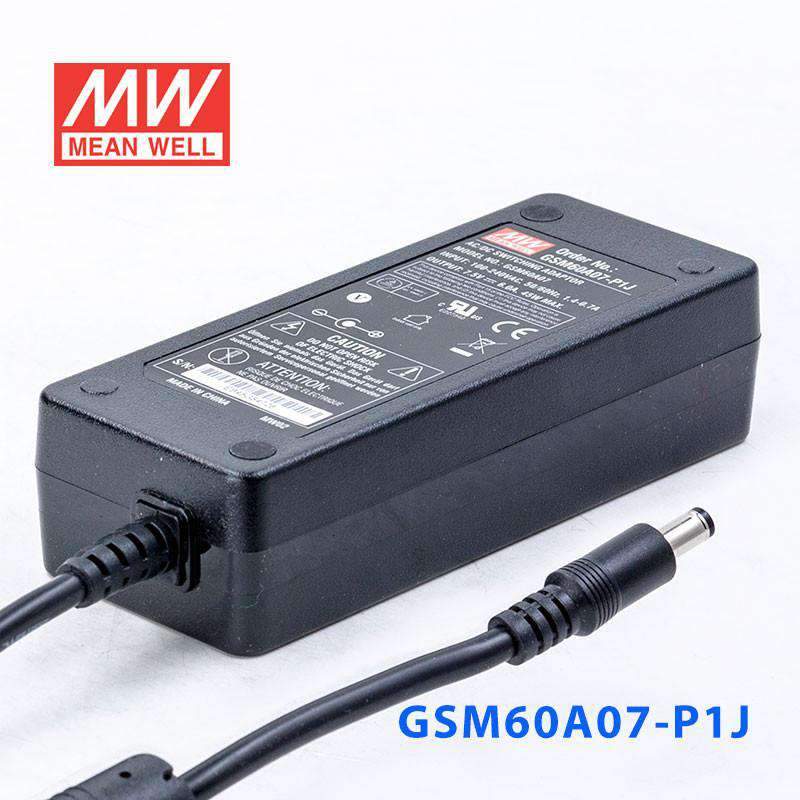

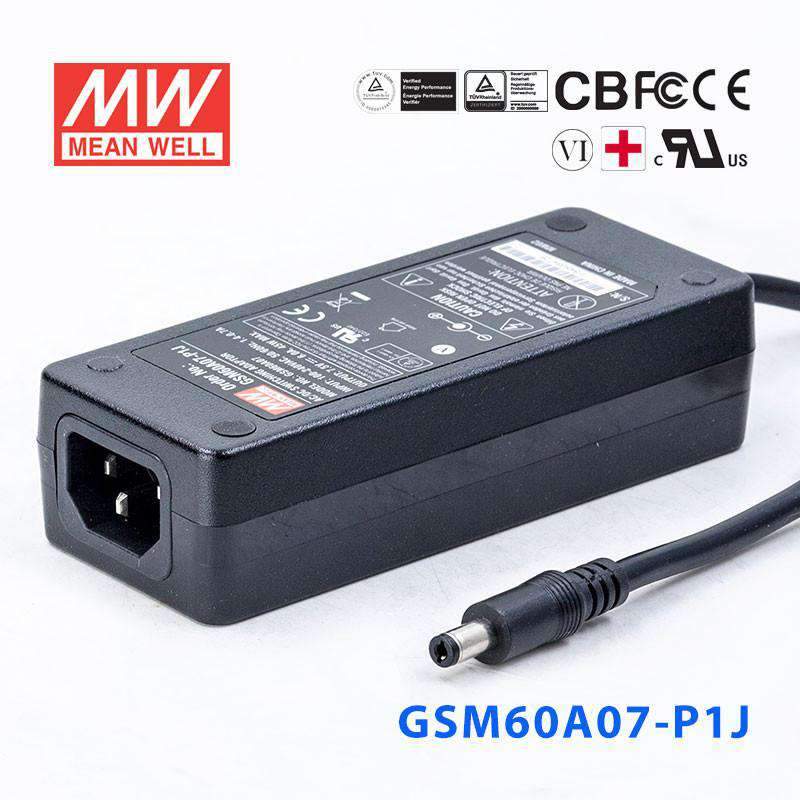

Mean Well GSM60A07-P1J Power Supply 45W 7.5V
The GSM60A07 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating45 Watt
-
Output Voltage7.5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the GSM60A07-P1J for equipment that needs 7.5V DC at higher current?
Yes, this model provides constant voltage 7.5V output at up to 6A, with a total output rating of 45W. It fits equipment designed for 7.5V DC as long as the load stays within those limits.
Is the GSM60A07-P1J suitable for embedded devices or test instruments that require 7.5V?
It can be used for embedded devices or test instruments that specify a constant voltage 7.5V input. The available output is 45W and 6A, so both power and current draw need to be checked against the device requirement.
Can this 7.5V power supply run industrial electronics from a wide AC input range?
Yes, it accepts 80-264VAC input and outputs constant voltage 7.5V DC. That makes it useful for industrial electronics needing 7.5V, provided the load does not exceed 45W or 6A.
Would the GSM60A07-P1J work for legacy or specialized 7.5V control hardware?
It can be a good match for specialized 7.5V hardware because the output is fixed at 7.5V constant voltage and can supply up to 6A. The physical size is 125.0 × 50.0 × 31.5 mm if space planning matters.
Can the GSM60A07-P1J be used in demanding temperature conditions?
The operating temperature range is specified as -30°C to +70°C. However, the provided specs do not list an IP rating, so temperature suitability is defined but wet or outdoor exposure suitability is not.
