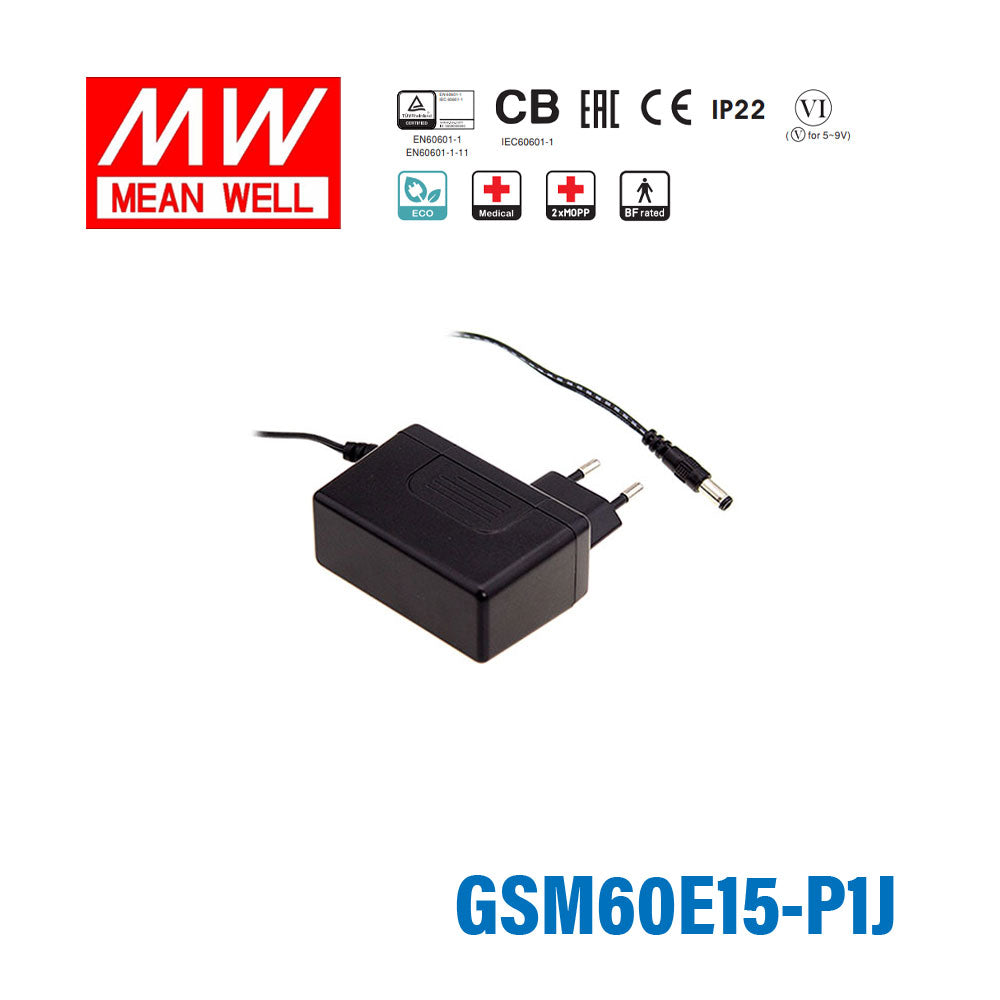

Mean Well GSM60E15-P1J Power Supply 60W 15V
The GSM60E15 is a 60W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width1.87 in
-
Height1.26 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the GSM60E15-P1J for a 15V industrial instrument or analyzer?
Yes, if the equipment is designed for constant voltage 15V DC input. This model provides up to 60W and 4A, which makes it suitable for 15V instruments, analyzers, or lab electronics within that load range.
Is the GSM60E15-P1J suitable for 15V automation modules or control hardware?
It can be used for 15V automation modules, signal processors, or control hardware that require a stable 15V constant voltage source. The total demand needs to stay at or below 60W and 4A.
Would this 15V power supply work for embedded systems with a 15V DC input?
It is intended for loads that specifically call for constant voltage 15V DC rather than a current-regulated output. With 60W available at 4A, it fits embedded systems and electronics assemblies that stay inside those electrical limits.
Can the GSM60E15-P1J power small motion-control or industrial accessory devices that need 15V?
It may be a fit for 15V accessory devices, interface units, or compact industrial electronics when the input requirement is fixed 15V DC. The main sizing check is keeping the load within 60W and 4A.
Is this model appropriate for indoor equipment exposed to temperature swings?
The operating temperature range is -30°C to +70°C, so it covers both cold-start and warm-running equipment environments. No IP rating appears in the specs, so the product listing does not establish outdoor weather exposure capability.
