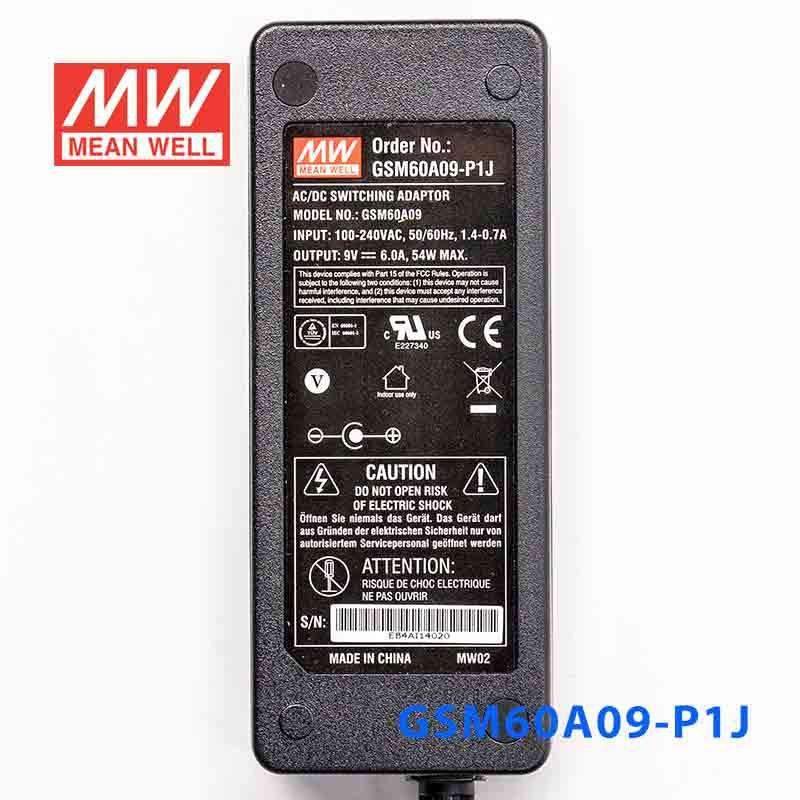

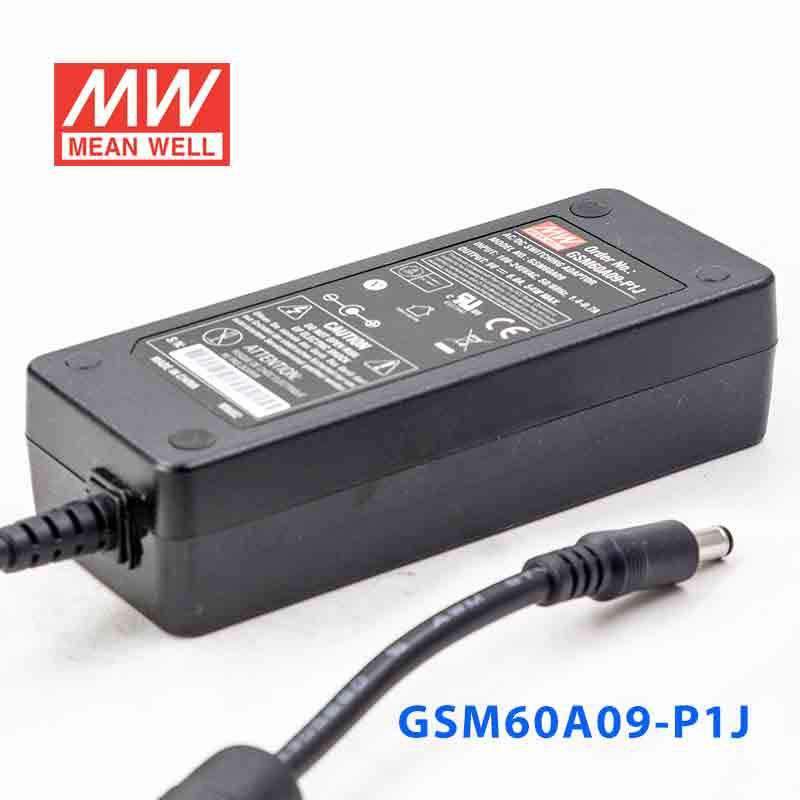

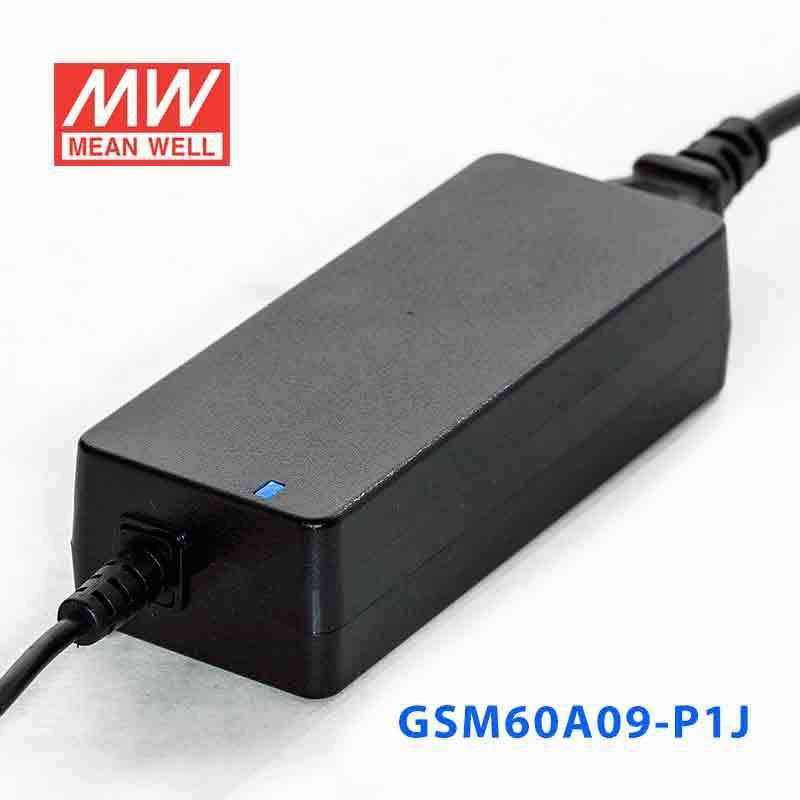

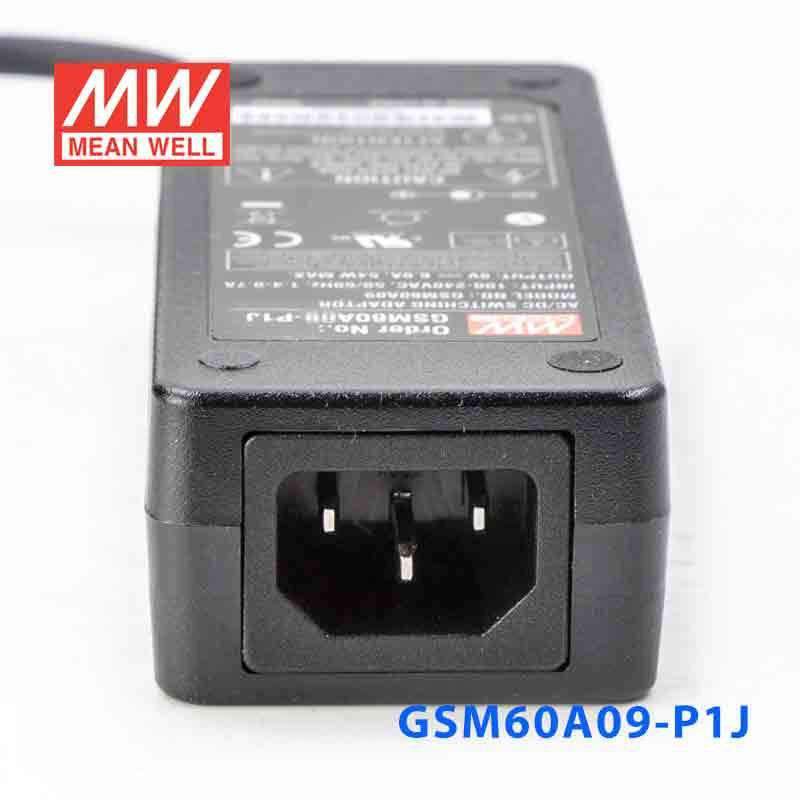

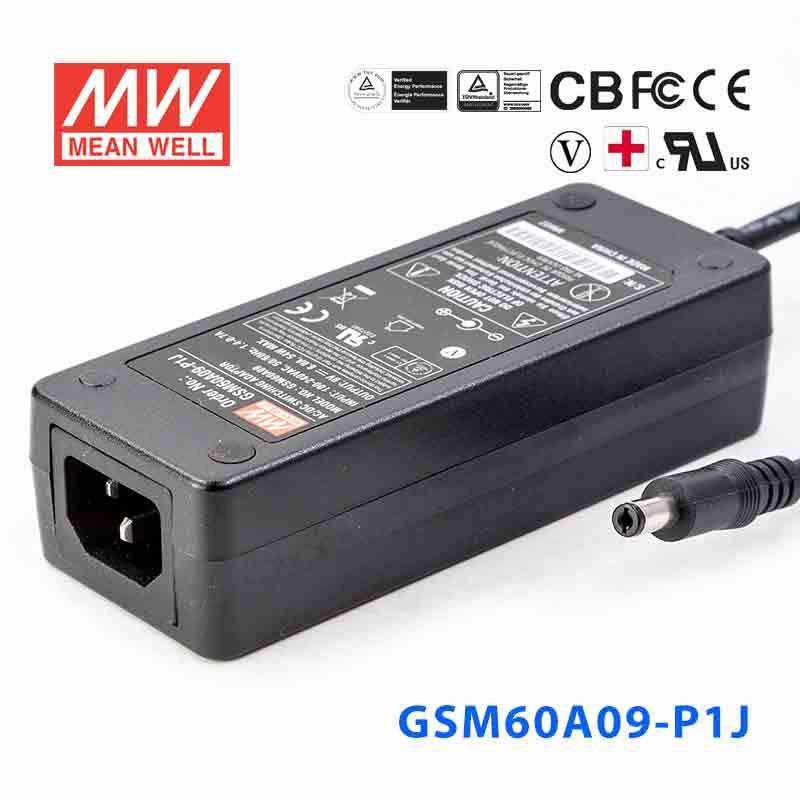

Mean Well GSM60A09-P1J Power Supply 54W 9V
The GSM60A09 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating54 Watt
-
Output Voltage9 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the GSM60A09-P1J for a 9V industrial controller or HMI that needs steady DC output?
Yes, this model is a constant-voltage 9V power supply rated for up to 6A and 54W. It is suited to 9V control equipment as long as the load stays within those output limits and the available input is within 80-264VAC.
Is this power supply suitable for 9V embedded systems or test fixtures in a lab or production setting?
It can fit 9V embedded equipment or bench fixtures that need constant-voltage output and draw no more than 6A. The wide 80-264VAC input range also helps when the same equipment may be used across different AC supply conditions.
Can I use this 9V model for low-voltage automation accessories or sensing equipment?
This unit is appropriate for 9V automation accessories that require constant-voltage power and stay within 54W total load. Its 6A output rating gives more headroom for higher-current 9V devices than lighter-duty adapters.
How do I know if the GSM60A09-P1J is the right size for my 9V device?
Match the device to the output rating of 9V constant voltage, with up to 6A and 54W available. If your equipment needs a different voltage or more than 6A or 54W, this model is not the correct fit.
Is the GSM60A09-P1J suitable for outdoor or harsh-temperature use?
The specified operating temperature is -30°C to +70°C, so the temperature range is broad for demanding environments. However, no IP rating is listed in the provided specs, so the product data does not establish outdoor or wet-location suitability.
