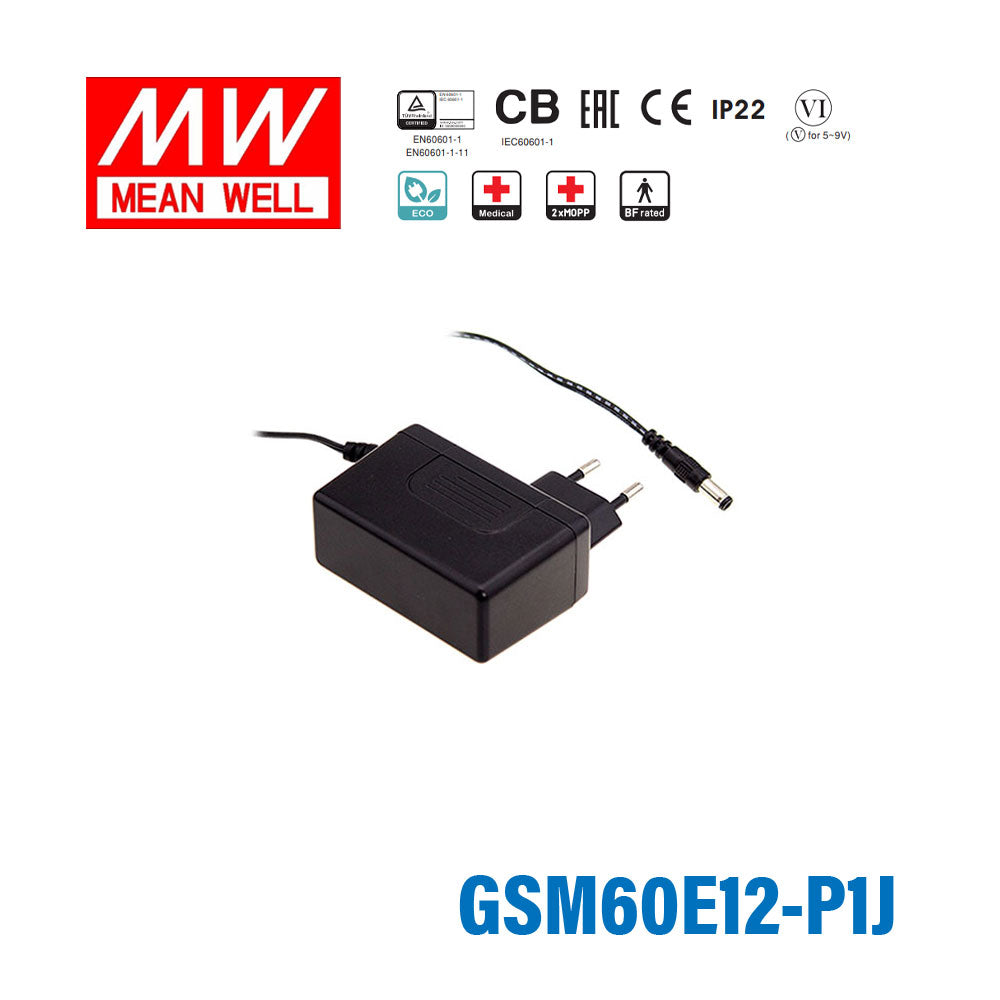

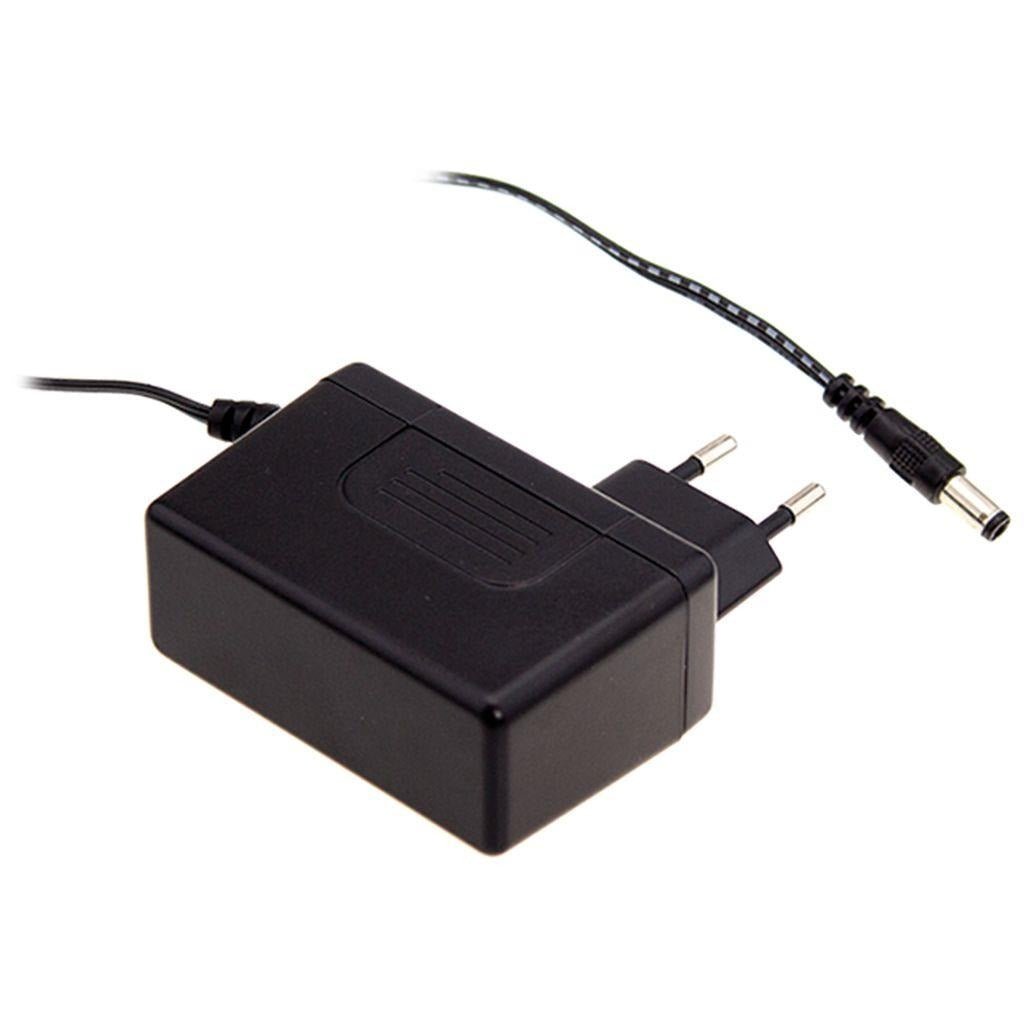

Mean Well GSM60E12-P1J Power Supply 54W 12V
Description
Description
Features
| Ultra slim, compact size |
| Medical safety approved (2 x MOPP) according to BS EN/EN60601-1/BS EN/EN60601-1-11 |
| Extremely low leakage current |
| 2 pole EURO plug, Class II power unit |
| No load power consumption < 0.15W |
| Energy efficiency Level VI (Except 5~9V for Level V) |
| -30~+70°C wide range working temperature |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| Various DC plug quick adapter accessories available |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current (max.) | Cold start 50A / 115VAC 100A / 230VAC |
| Overload protection | 105%~160% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P:5656VDC |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Dimension (LxWxH) | 75.5 x 32 x 47.5 mm |
| Standard DC plug | UL2468 16AWG 1000+150/-0mm for 5~18V | UL2468 18AWG 1500+150/-0mm for 24~48V |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating54 Watt
-
Output Voltage12 Volt
-
Rated Current4.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width1.87 in
-
Height1.26 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM60E12-P1J for a 12V automation controller or HMI accessory?
Yes, if the device requires constant voltage 12V DC and the load stays within 54W and 4.5A. That makes it suitable for many 12V automation control accessories, compact operator panels, and embedded control hardware.
Is this 12V power supply a good match for small industrial cameras or monitoring devices?
It can be used with 12V monitoring or inspection devices that need a regulated 12V output rather than a constant current source. The output limit is 54W at 4.5A, so the connected equipment must fit within that range.
Can the GSM60E12-P1J power 12V embedded systems in kiosks or network cabinets?
It is a reasonable option for 12V embedded systems, compact PCs, or network accessories that use constant voltage input. The 80-264VAC input range is also useful where the AC source may vary across sites.
Would this model work for 12V LED signage or display electronics?
It can fit 12V display or signage electronics when the load expects constant voltage power. The available output is 54W and 4.5A, so the total connected 12V load needs to remain within those limits.
Can the GSM60E12-P1J be used in cold or warm equipment environments?
The specified operating range is -30°C to +70°C, which supports use across a wide temperature span for enclosed equipment applications. Since no IP rating is listed, the product specs do not confirm outdoor or water-exposed use.
