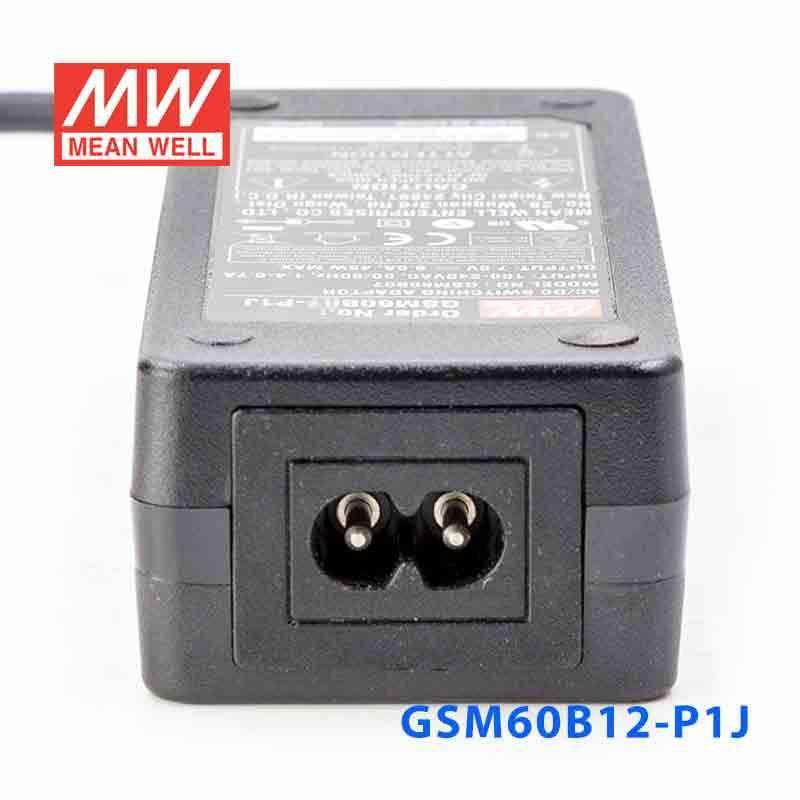

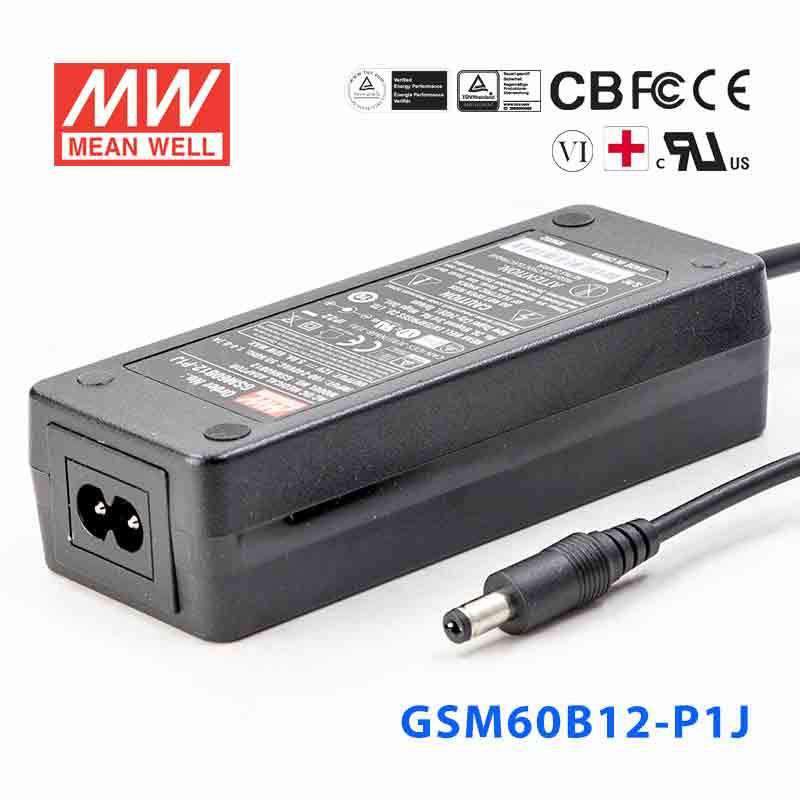

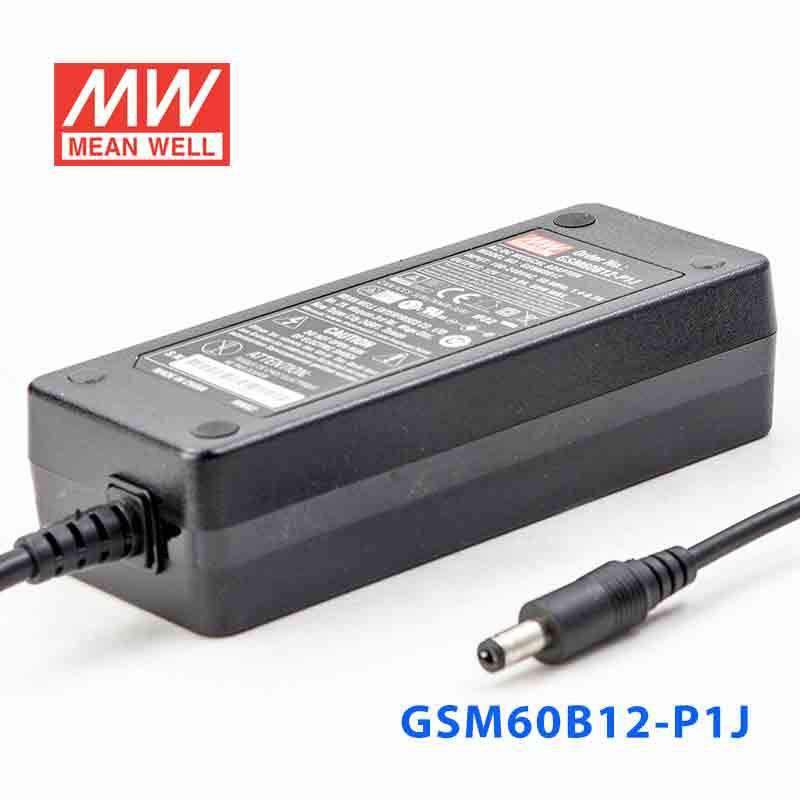

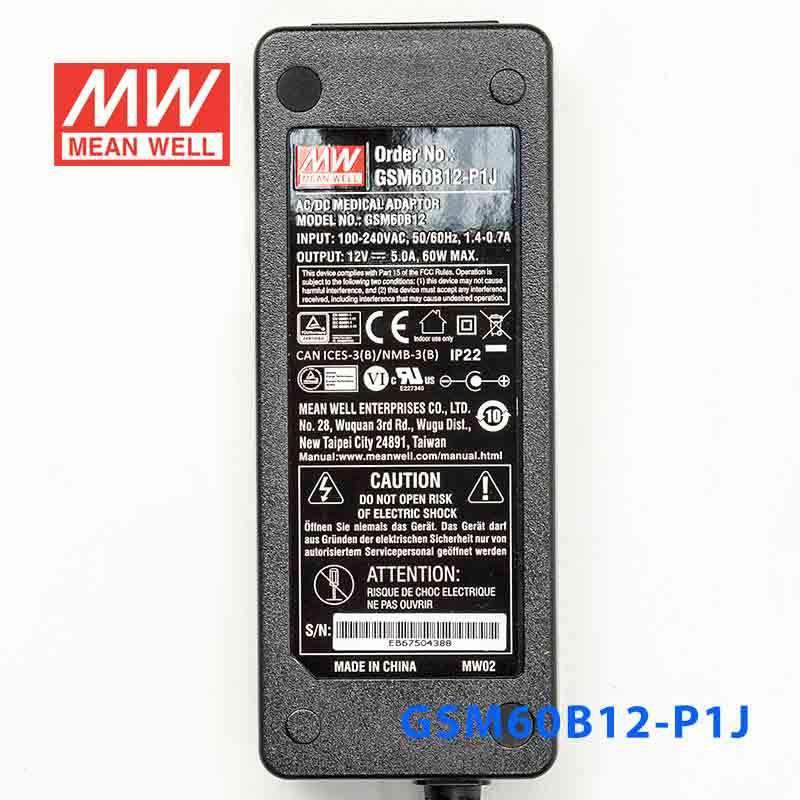

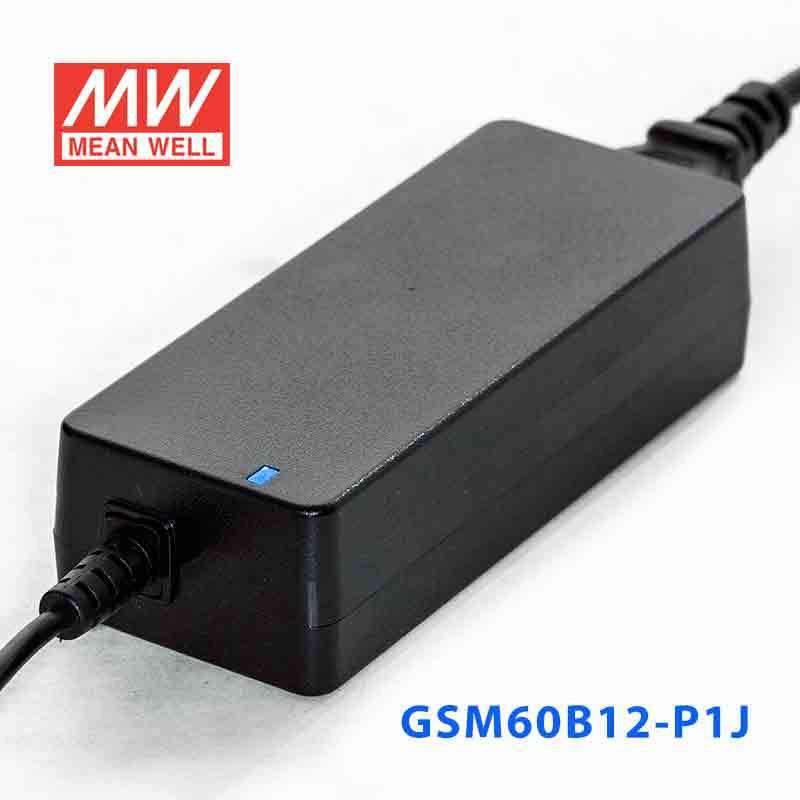

Mean Well GSM60B12-P1J Power Supply 54W 12V
The GSM60B12 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well GSM60B12-P1J?
The GSM60B12-P1J is a 54W desktop power supply with a 12V DC output and a rated current of 5A. It is part of Mean Well's GSM60B medical adaptor series and uses the P1J standard DC plug.
Is the GSM60B12-P1J suitable for medical applications?
Yes. This model is medical safety approved and specifies 2 x MOPP isolation between primary and secondary. It also lists ANSI/AAMI ES60601-1, ES60601-1-11, and TUV EN60601 / EN60601-1-11 approvals, making it relevant for medical equipment purchasing requirements.
What input voltage range does this power supply support?
The GSM60B12-P1J supports a universal AC input range of 80 to 264VAC, and it can also accept 120 to 370VDC. That makes it suitable for procurement across regions where input supply conditions may vary.
What protection features are built into the GSM60B12-P1J?
This model includes short circuit, overload, over voltage, and over temperature protection. Its overload protection is specified at 105% to 160% of rated output and operates in hiccup mode with auto-recovery.
Can this adaptor be used in demanding industrial or healthcare environments?
It is designed for demanding environments, with an operating temperature range of -30°C to +60°C and a fully enclosed plastic case. The unit also meets listed EMC standards including EN55011 Class B, FCC Part 15 Class B, and EN60601-1-2.
What connector and cable details come with the GSM60B12-P1J?
This version uses the P1J standard DC plug, specified as 2.1mm x 5.5mm x 11mm with center positive polarity. For 9V to 12V models, the output cable length is specified as 100cm using UL1185 16AWG cable.
What efficiency and standby power characteristics does this model offer?
The GSM60B12-P1J is specified for efficiency up to 91.5%. Its no-load power consumption is listed as less than 0.1W, which can help reduce standby energy use in always-available equipment.
What are the physical size and warranty of this power supply?
The adaptor measures 125 x 50 x 31.5 mm and weighs 0.32 kg. Mean Well specifies a 3-year warranty for this model.
