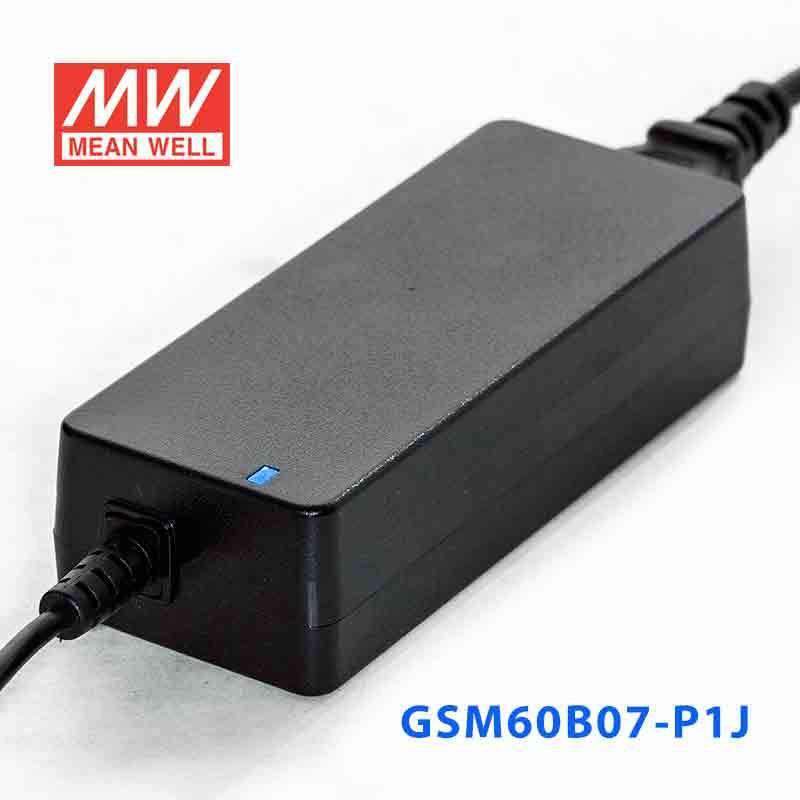

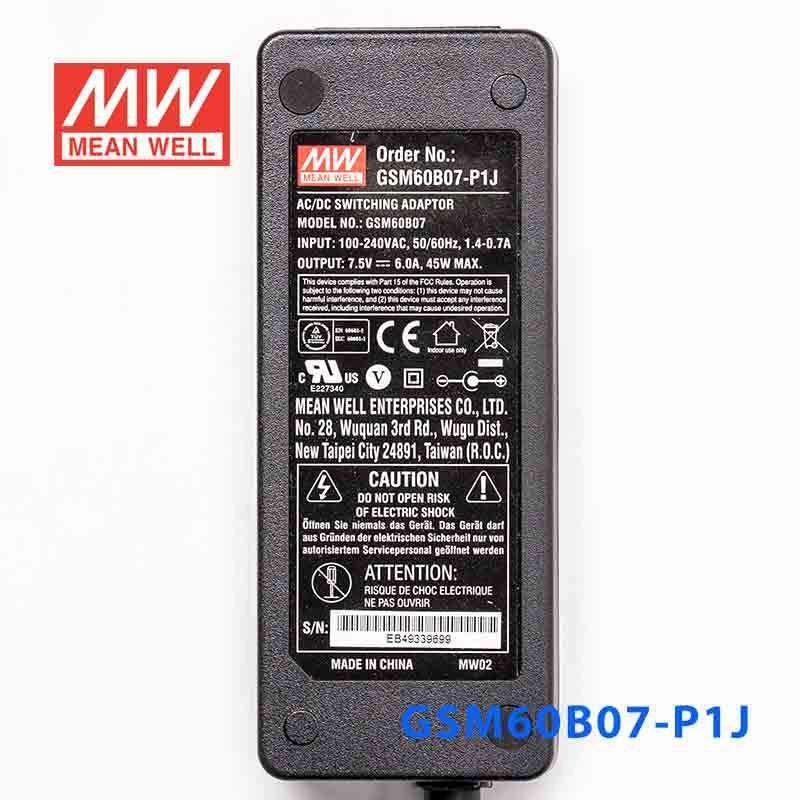

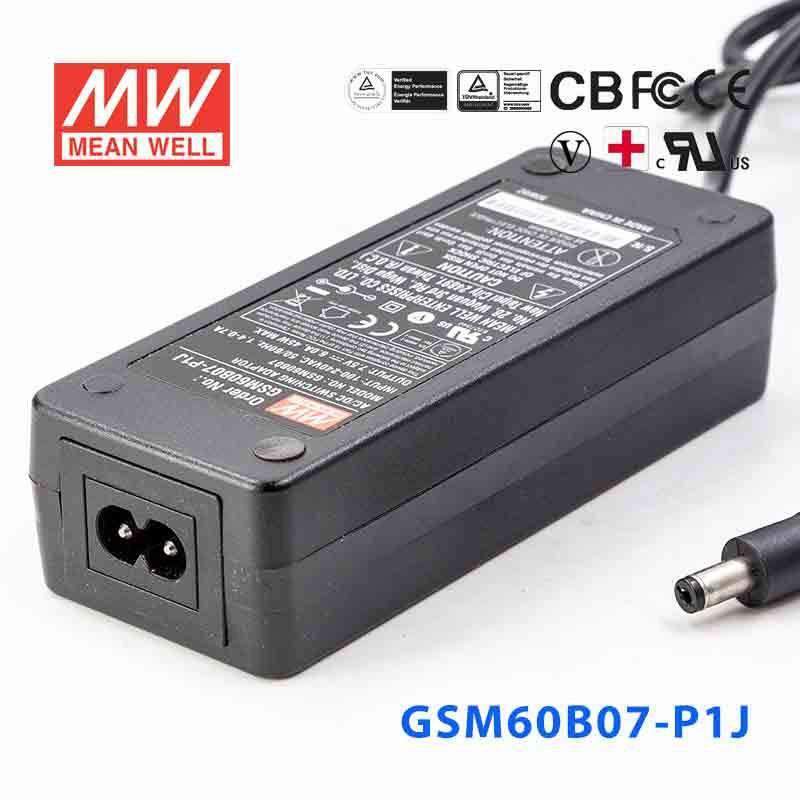

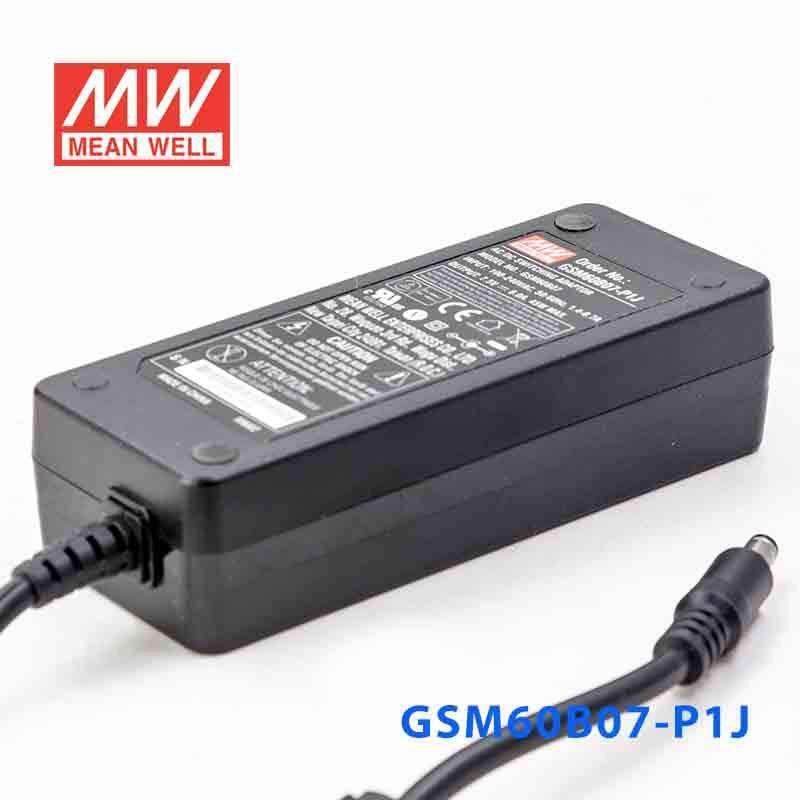

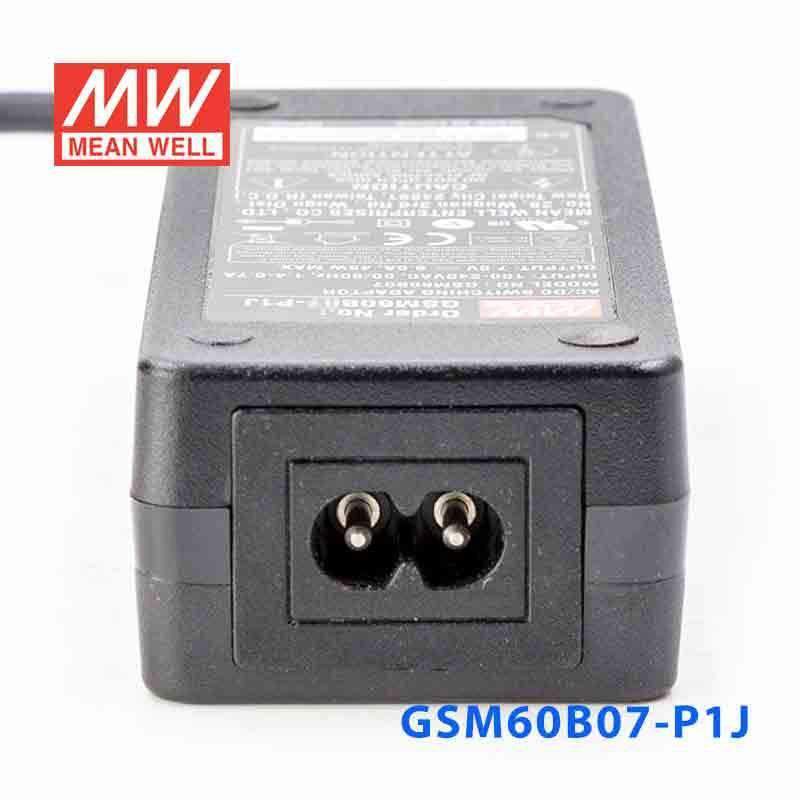

Mean Well GSM60B07-P1J Power Supply 40W 7.5V
The GSM60B07 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating45 Watt
-
Output Voltage7.5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the GSM60B07-P1J for 7.5V control electronics or embedded hardware?
Yes, if the equipment requires constant-voltage 7.5V input and stays within 6A output current. The unit is rated at 45W, so it fits higher-current 7.5V devices better than low-power adapters.
Is this model suitable for 7.5V automation accessories in industrial equipment?
It is designed for constant-voltage output at 7.5V and can supply up to 6A. That makes it appropriate for 7.5V accessories or subsystems whose total load remains within 45W.
Can the GSM60B07-P1J be used for bench testing or service fixtures that run on 7.5V?
It can be used for 7.5V bench or service applications where the connected load needs stable constant-voltage power. Its 80-264VAC input range is useful when the fixture may be operated from different AC sources.
How can I tell whether this 7.5V supply is compatible with my equipment?
Check that your equipment is specified for 7.5V constant-voltage operation and draws no more than 6A, with total power not exceeding 45W. If the load needs a different voltage, this is not the correct model.
Is the GSM60B07-P1J rated for outdoor locations or wide temperature swings?
The operating temperature range is -30°C to +70°C, so the temperature specification is broad. No IP rating is provided in the listed specs, so the product data does not confirm outdoor or water-exposed use.
