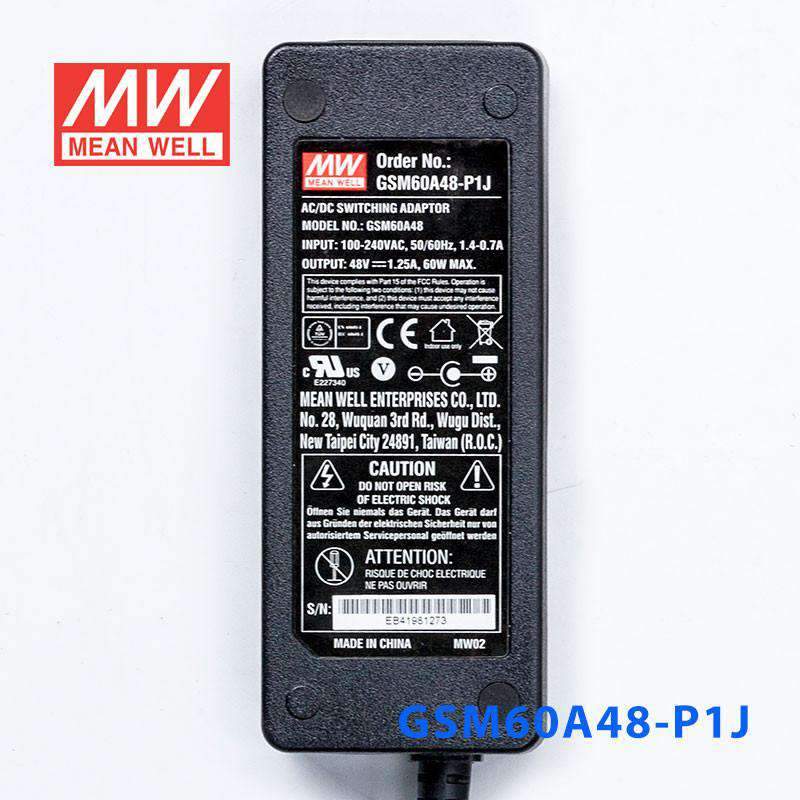

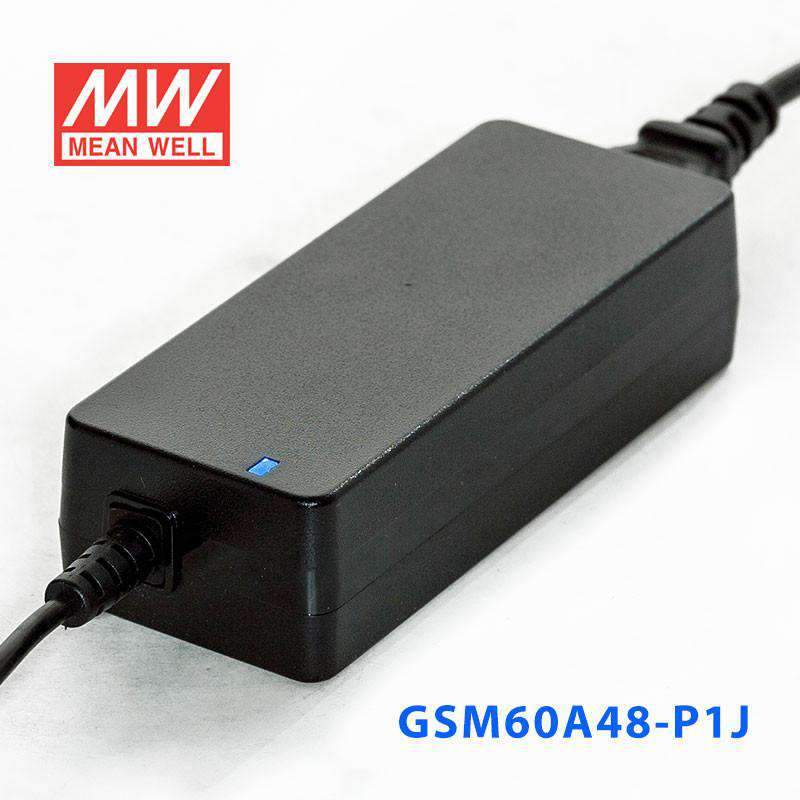

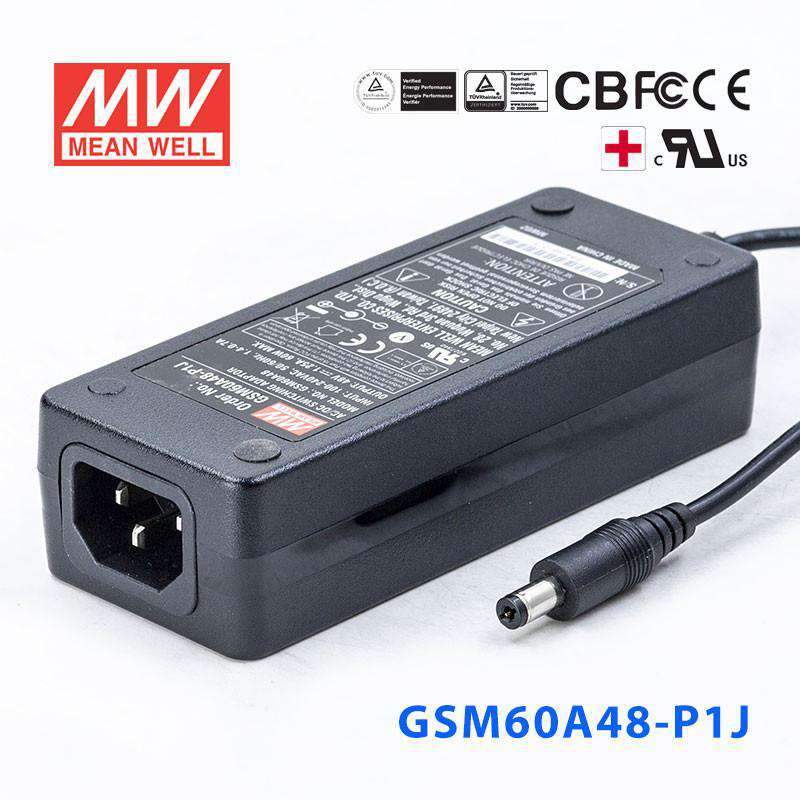

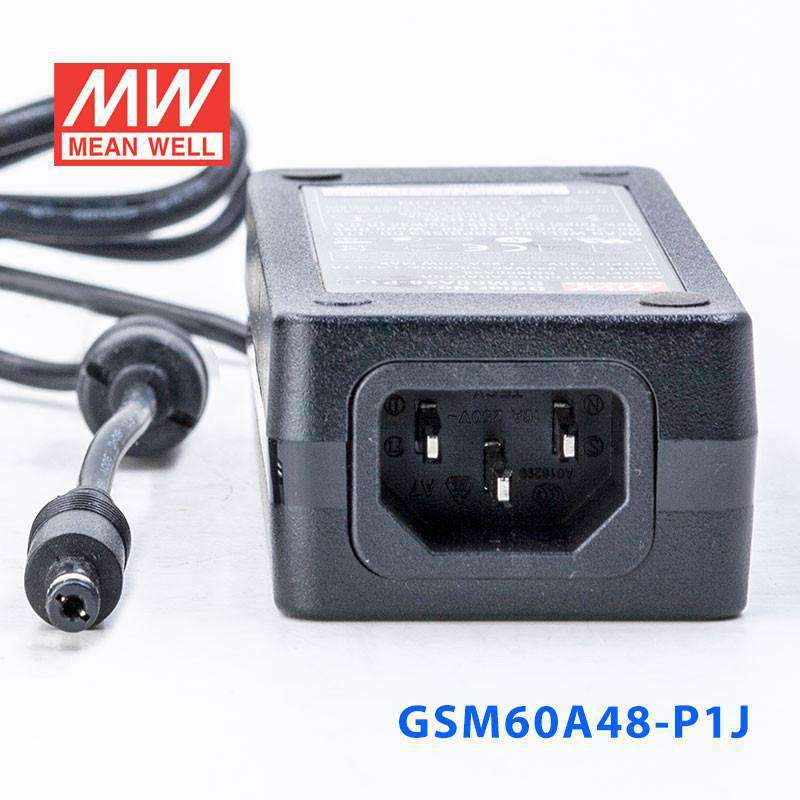

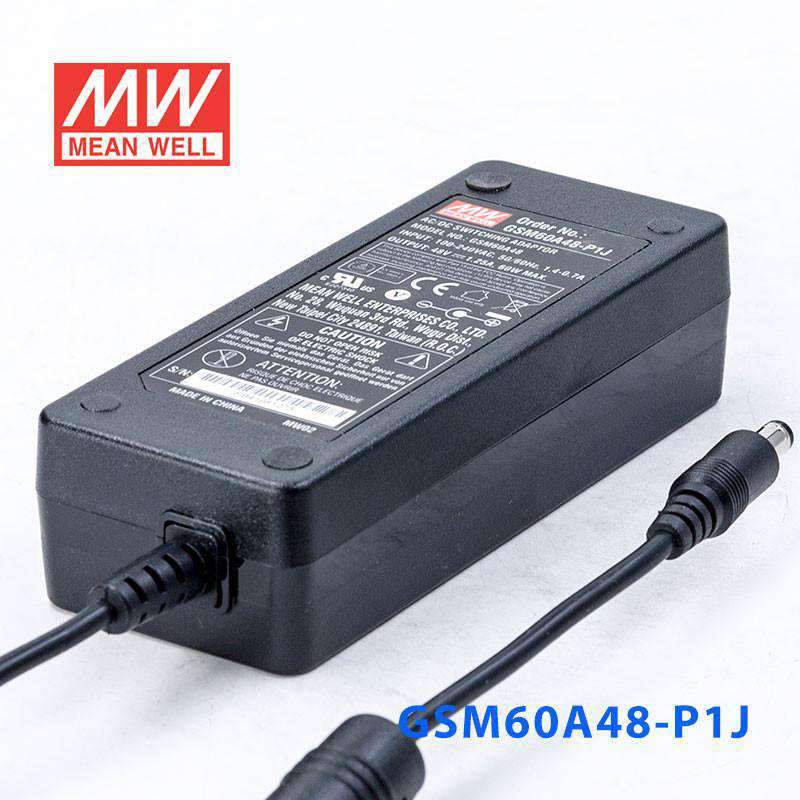

Mean Well GSM60A48-P1J Power Supply 60W 48V
The GSM60A48 is a 60W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.92 in
-
Width1.97 in
-
Height1.24 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well GSM60A48-P1J?
This model is a 60W desktop AC/DC power supply with a 48V DC output. Its rated output current is 1.25A. It is designed for applications that need a regulated 48V supply in a compact enclosed adaptor format.
What type of applications is the GSM60A48-P1J intended for?
The GSM60A48-P1J is part of Mean Well's medical approved power supply range. It is suited to equipment that benefits from low leakage current, 2 x MOPP isolation, and Class B EMC performance. Buyers commonly consider this type of adaptor for medical and other professional electronic equipment requiring a 48V external power source.
Does the GSM60A48-P1J support worldwide AC input?
Yes. It accepts a universal input range of 80 to 264VAC, and it also supports 120 to 370VDC input. That makes it suitable for use across regions with different mains standards, subject to the correct detachable AC cord for the local market.
What safety and protection features does this power supply include?
This model includes short circuit, overload, over voltage, and over temperature protection. It is medically approved with 2 x MOPP between primary and secondary, and the listed leakage current is below 50uA. Mean Well also specifies 100% full load burn-in testing for this series.
Is the GSM60A48-P1J suitable for demanding operating environments?
It is rated for operation from -30°C to +60°C, with reference to the output derating curve in the product documentation. The unit is fully enclosed in a plastic case and is built as an external desktop adaptor. Buyers should still confirm that their enclosure temperature and load conditions stay within the product's rated operating limits.
What connector style does the GSM60A48-P1J use on the DC output?
This version uses the P1J standard DC plug. The listed plug dimensions are 2.1 mm inner diameter by 5.5 mm outer diameter by 11 mm length, with center positive polarity. That plug style is an important compatibility point when matching this adaptor to equipment.
How efficient is the Mean Well GSM60A48-P1J, and does it waste much power at no load?
Mean Well lists efficiency of up to 91.5% for this model. No-load power consumption is specified at less than 0.1W. Those figures make it a strong option for applications where energy efficiency and standby consumption matter.
