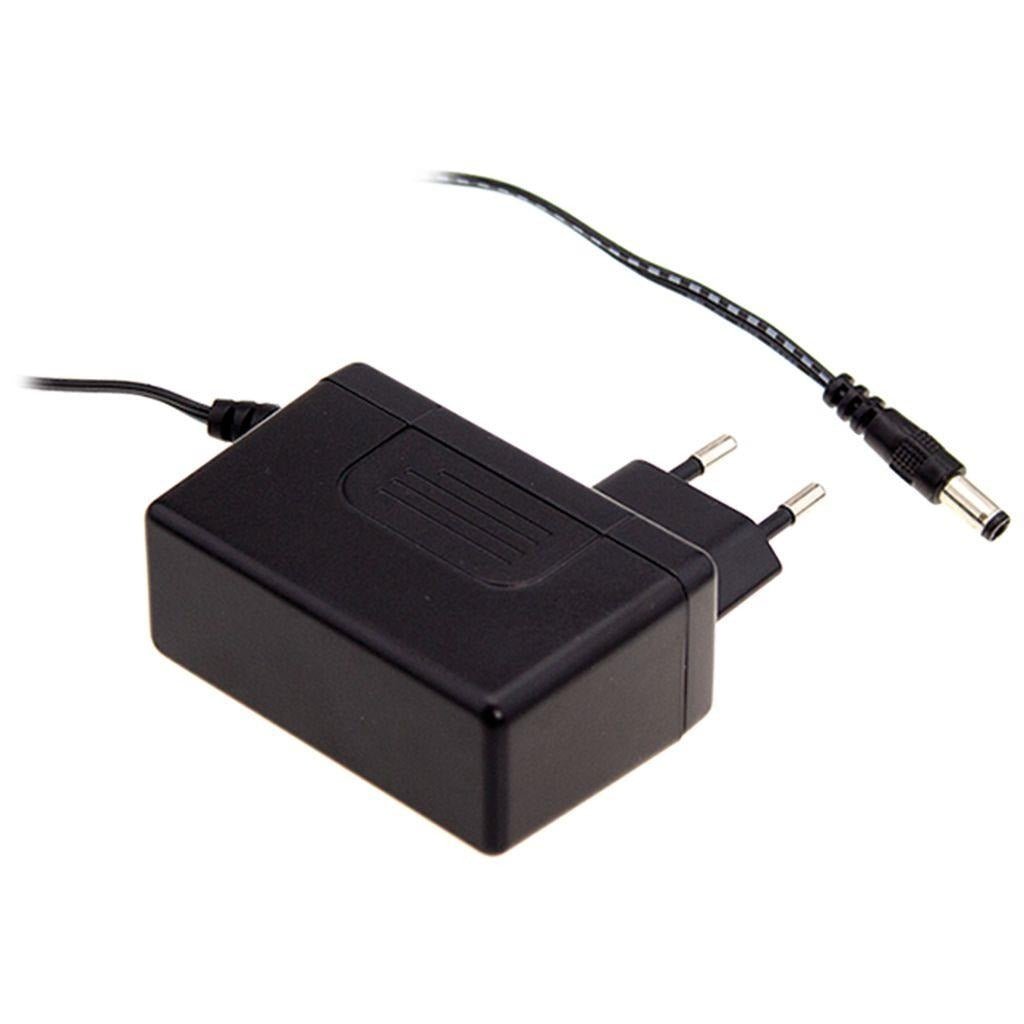

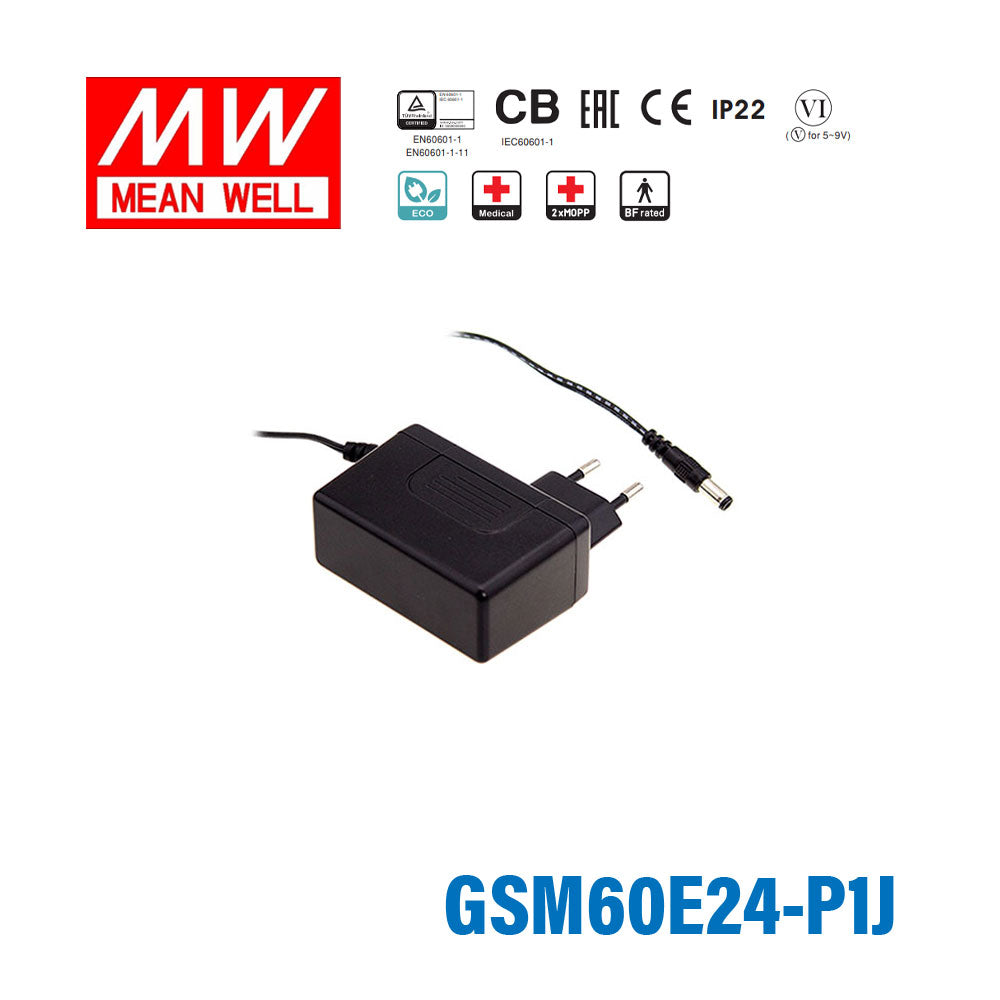

Mean Well GSM60E24-P1J Power Supply 60W 24V 2.5A
Overview
GSM60E24-P1J is the 24V output model of this series: rated current 2.5A, typical efficiency 88%.
GSM60E is a 60W ultra slim wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. GSM60E is a class Ⅱ power unit (no FG) equipped with the standard 2-Pin European plug, accepting the input range from 80VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various types of medical electronic devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 90% and the extremely low no-load power consumption below 0.15W, GSM60E is compliant with EU ErP and meet CoC version 5 (5~9V for Level Ⅴ). The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electrical hazards.
Features
- Ultra slim, compact size
- Medical safety approved (2 x MOPP) according to BS EN/EN60601-1/BS EN/EN60601-1-11
- Extremely Low leakage current
- 2 pole EURO plug, Class Ⅱ power unit
- No load power consumption <0.15W
- Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
- -30~+70℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM60E24
- DC VOLTAGENote.2
- 24V
- RATED CURRENT
- 2.5A
- CURRENT RANGE
- 0 ~ 2.5A
- RATED POWER (max.)
- 60W
- RIPPLE & NOISE (max.)Note.3
- 120mVp-p
- VOLTAGE TOLERANCENote.4
- ±3.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATIONNote.6
- ±2.0%
- SETUP, RISE, HOLD UP TIME
- 1000ms, 100ms, 10ms/230VAC 1000ms, 100ms, 10ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 88%
- AC CURRENT
- 1.5A / 115VAC 0.8A / 230VAC
- INRUSH CURRENT (max.)
- Cold start 50A / 115VAC 100A / 230VAC
- LEAKAGE CURRENT(max.)
- Touch current < 100μA/264VAC
PROTECTION
- OVERLOAD
- 105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- IP rating
- IP22
SAFETY & EMC
- SAFETY STANDARDS
- TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
- ISOLATION LEVEL
- Pimary - Secondary: 2 x MOPP
- WITHSTAND VOLTAGE
- I/P-O/P:5656VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11) Class B Radiated emission BS EN/EN55011 (CISPR11) Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/ EN55011, BS EN/ EN60601-1-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~6GHz) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Line-Line,1KV ineterconnect Lines at 100KHz rate Surge susceptibility BS EN/EN61000-4-5 Level 3, 2KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- LIFE
- 3 years : 100% load 40℃, 8hours / day
- MTBF
- 400Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 75.5*32*47.5mm (L*W*H)
- PACKING
- 200g ; 60pcs / 13kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; other type available by customer requested
- CABLE
- See page 4~5 ; other type available by customer requested
Test conditions and notes8
- 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 4.Tolerance: includes set up tolerance, line regulation, load regulation.
- 5.Line regulation is measured from low line to high line at rated load.
- 6.Load regulation is measured from 10% to 100% rated load.
- 7.Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
- Sleep apnea devices
Downloads
FAQ
Can I use the GSM60E24-P1J for 24V PLC accessories or automation components?
Yes, this model is well suited to 24V automation accessories, PLC-related peripherals, and industrial control devices that require constant voltage input. It provides 24V DC with up to 60W and 2.5A available.
Is the GSM60E24-P1J a fit for 24V sensors, relays, or control interfaces?
It can be used for 24V sensor groups, relay interfaces, and control electronics that are designed for constant voltage 24V DC power. The total connected load needs to stay within 60W and 2.5A.
Would this 24V power supply work for industrial networking or communications hardware?
It may be a good fit for industrial networking, gateway, or communications hardware that specifies a regulated 24V DC input. The wide 80-264VAC input range is also useful when the AC supply conditions vary between sites.
Can the GSM60E24-P1J power 24V LED strips or display systems?
Yes, it can support 24V LED strips or display electronics when the load requires constant voltage power rather than constant current. The sizing limit is 60W total output and 2.5A at 24V.
Is the GSM60E24-P1J suitable for harsh indoor environments?
The specified operating temperature range is -30°C to +70°C, with load derating at higher temperatures per the derating curve, so it covers a broad range of indoor conditions. It is rated IP22, so the spec sheet does not support direct outdoor or wet-location use.
