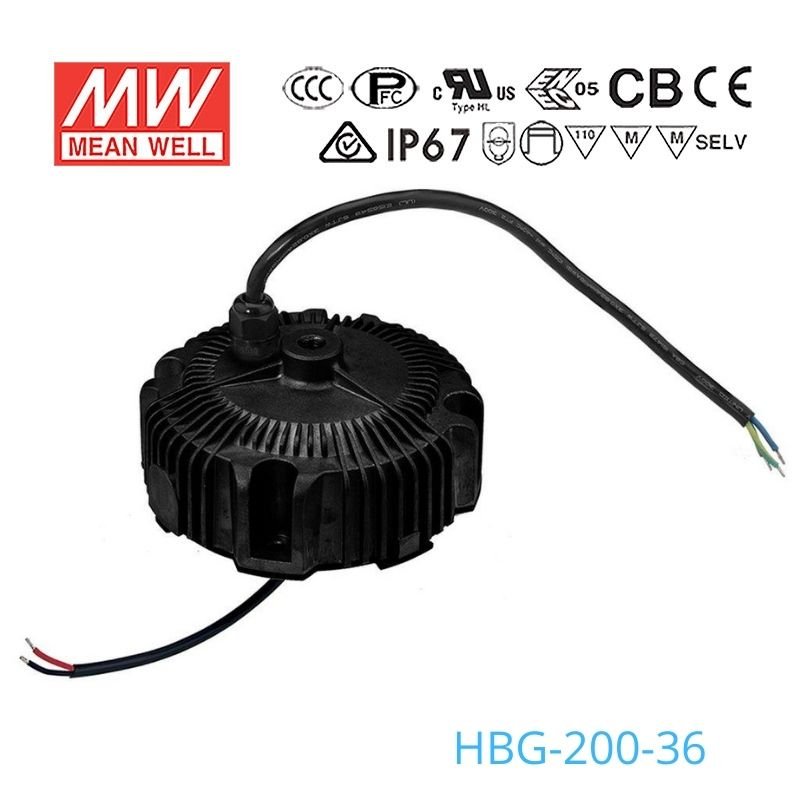

Mean Well HBG-200-36 Power Supply 200W 36V
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage36 Volt
-
Rated Current5.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-200-36 for a 36V LED strip?
It can work with a 36V LED strip only if the strip or lighting load is designed for constant current operation at 5.5A and falls within the 21-36V constant current range. Many 36V LED strips are not constant current, so you need to match the load type as well as the 36V output.
Is the HBG-200-36 suitable for high bay or low bay LED lighting?
Yes. This model is specified for high or low bay light use and provides up to 198W at 36V in constant current mode. Its circular shape and metal case are intended for this class of lighting application.
Can I use this LED driver for outdoor signage or wet-location lighting?
Yes, this driver is IP67 waterproof, so it is suited to outdoor or wet-location LED lighting applications where the rest of the system is rated appropriately. It also supports a wide operating temperature range of -40°C to +85°C.
Can this power supply handle LED lighting in hot or cold environments?
It is designed for demanding conditions, with an operating temperature range of -40°C to +85°C. Combined with its IP67 waterproof rating, that makes it suitable for indoor or outdoor lighting environments where moisture and temperature swings are a concern.
How much 36V LED strip can the HBG-200-36 support?
This model provides up to 198W total output. To estimate maximum strip length, divide 198W by your strip's rated power per meter, then verify that the load is compatible with 36V output and constant current operation in the 21-36V range.
What is the difference between the HBG-100-36, HBG-160-36, HBG-200-36, and HBG-240-36 models?
These 36V models mainly differ by output power within the same series. HBG-100-36 is 97.2W, HBG-160-36 is 158.4W, HBG-200-36 is 198W, and HBG-240-36 is 240W; the listed constant current range for these models is 21-36V.
