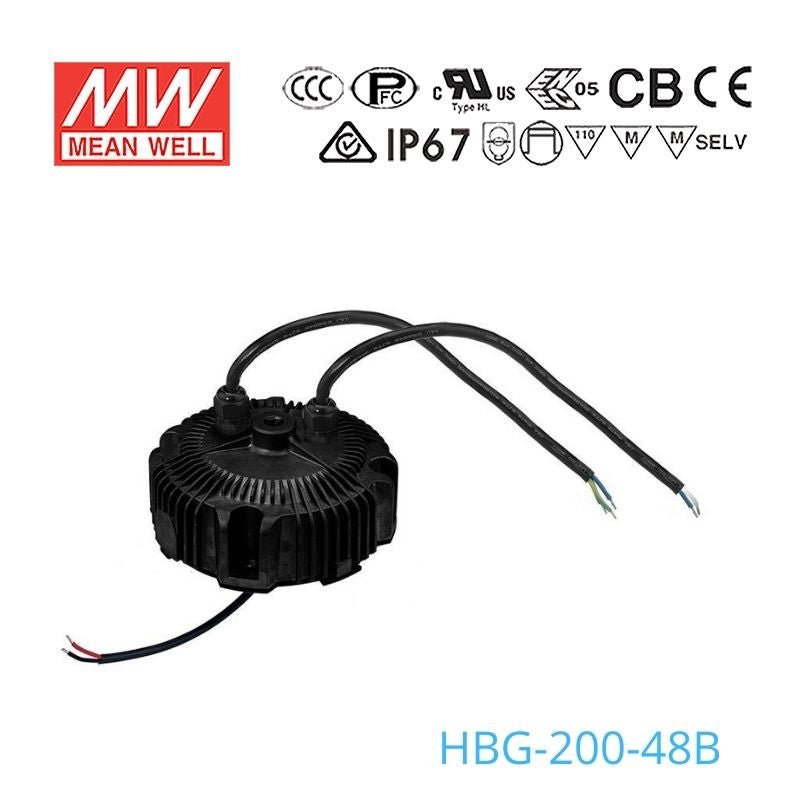

Mean Well HBG-200-48B Power Supply 200W 48V - Dimmable
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating196.8 Watt
-
Output Voltage48 Volt
-
Rated Current4.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-200-48B for a 48V high bay LED fixture?
Yes, if the fixture is designed for constant current operation within the 28-48V CC range. This driver provides up to 4.1A and 196.8W, and the circular housing is intended for high and low bay light use.
Is this driver suitable for 48V signage lighting?
It can be used for signage lighting when the LED load is a 48V-class constant current system that stays within 28-48V, 4.1A, and 196.8W. It is not a match for loads that require a different operating mode.
Can this power 48V architectural or linear lighting?
Yes, for 48V constant current linear lighting systems that operate inside the 28-48V CC range. With 196.8W available, it fits larger lighting assemblies than the lower wattage HBG 48V models.
How much 48V LED strip can the HBG-200-48B run?
The maximum load is 196.8W. The math is: maximum strip length = 196.8W divided by your strip's rated watts per meter, and you should also confirm the strip is designed for 48V constant current operation within the 28-48V CC range.
Can I use the HBG-200-48B outdoors or in wet locations?
Yes, its IP67 waterproof rating makes it suitable for outdoor and wet-location lighting systems. The operating temperature range is -40°C to +85°C, which supports use in very cold and very hot environments.
How does the HBG-200-48B compare with other 48V HBG drivers?
Within the 48V family, HBG-160-48 models are 158.4W at 3.3A, HBG-200-48B is 196.8W at 4.1A, and HBG-240-48 models are 240W at 5A. All of those versions share a 28-48V constant current range, so the main difference is output capacity.
