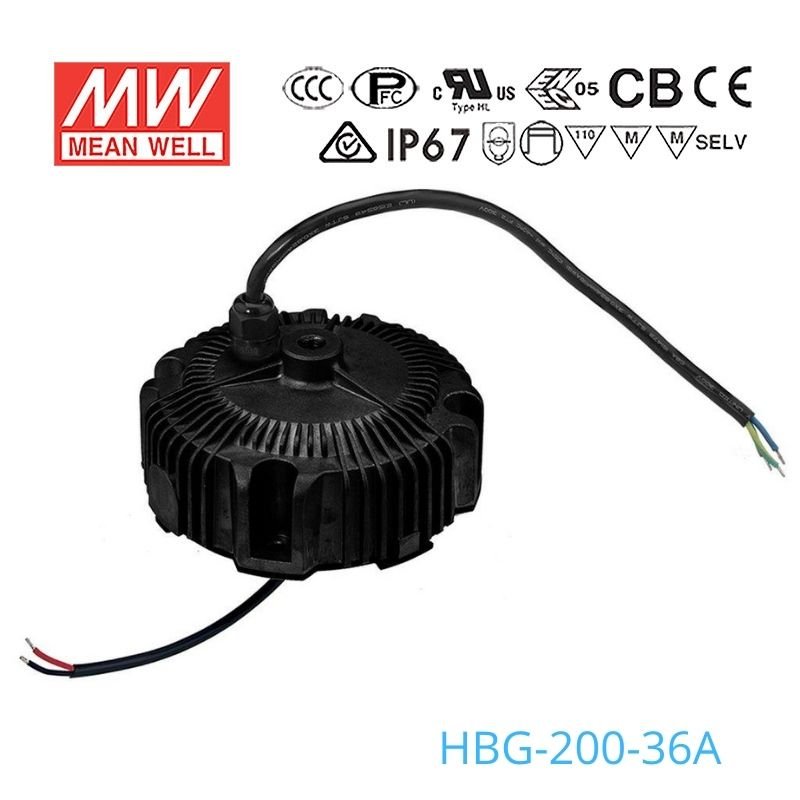

Mean Well HBG-200-36A Power Supply 200W 36V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HBG-200-36A Power Supply 200W 36V - Adjustable
Description
Description
Features
| Constant Voltage + Constant current mode output |
| Circular plastic housing with class I design |
| Built-in active PFC function |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~417VDC |
| AC inrush current (max.) | Cold start, 85A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | Refer to mechanical specification |
| Packing | 1.53Kg; 8pcs/13.8Kg/1.61CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage36 Volt
-
Rated Current5.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-200-36A for a 36V high bay or low bay LED light?
Yes, this model is designed for high bay and low bay lighting and uses a constant current output. It provides up to 198W at 36V with 5.5A output current, and its constant current range is 21-36V, so the LED load needs to match that range.
Is the HBG-200-36A suitable for outdoor LED signage or wet-location lighting?
It can be used in outdoor or damp lighting applications where an IP65 water-resistant driver is appropriate. The metal case and operating temperature range of -40°C to +85°C also make it suitable for demanding environmental conditions, but the full fixture still needs to be rated for the same environment.
Can this LED driver power a 36V LED strip?
Only if the LED strip is designed for constant current operation within 21-36V and 5.5A. This is not a general-purpose constant voltage power supply, so you should check whether the strip requires a constant current LED driver rather than a fixed 36V output supply.
Can I use the HBG-200-36A for a circular high bay fixture or round industrial light?
Yes, the circular shape makes it a practical fit for round high bay and low bay fixture designs. Its 151.68 × 151.68 × 66.5 mm housing, 198W output, and 36V constant current operation suit higher-power LED lighting assemblies that are built around this driver format.
How do I estimate whether this driver has enough power for my LED load?
Use the load's rated power and compare it to this driver's 198W maximum output. For LED strip calculations, maximum supported length = 198W divided by the strip's rated power per meter, and you should also confirm the load stays within the 21-36V constant current range and 5.5A output current.
Is the HBG-200-36A OK for cold, hot, or outdoor industrial environments?
This model is built for wide operating conditions, with a rated operating temperature of -40°C to +85°C and an IP65 water-resistant enclosure. That makes it suitable for many indoor, outdoor, and industrial lighting environments where the rest of the system is also rated appropriately.
How does the HBG-200-36A compare with other 36V models in the HBG series?
Within the 36V branch of the series, HBG-100-36A is 97.2W at 2.7A with a 21-36V constant current range, HBG-160-36A is 158.4W at 4.4A with a 21-36V range, and HBG-200-36A is 198W at 5.5A with a 21-36V range. The HBG-240-36A steps up to 240W at 6.7A with the same 21-36V constant current range.
