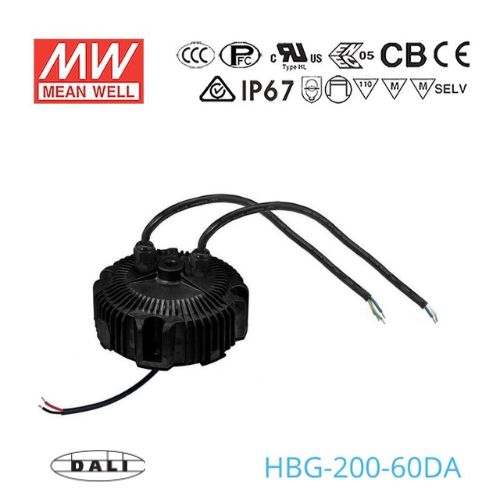

Mean Well HBG-200-60DA Power Supply 200W 60V - DALI
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-200-60DA for a 60V LED high bay light?
Yes, this LED driver is a fit for a 60V constant-current high bay light if the load operates within the 36-60V constant-current range and draws up to 3.3A. It is rated for 198W and the HBG series is noted for high/low bay light use. The DA version also adds DALI control support.
Can this driver be used for a 60V low bay LED fixture?
Yes, if the low bay fixture requires a constant-current driver in the 36-60V range at up to 3.3A. This model delivers 198W and is part of the HBG series intended for high/low bay lighting. Its circular housing may also suit round fixture designs.
Can I use this power supply for LED signage or architectural lighting?
It can be used for signage or architectural lighting only when the LED load is a constant-current load that operates between 36V and 60V and does not exceed 3.3A or 198W. The wide 90-305VAC input range can help in commercial lighting environments. Confirm the fixture's electrical requirements match this driver's constant-current output mode.
Can this run 60V LED strip lighting, and how much strip can it support?
It can only be used if the LED strip is designed for constant-current operation within 36-60V and up to 3.3A. The maximum load is 198W, so the length estimate is 198W divided by your strip's rated watts per meter. Check your strip rated power per meter before sizing the run length.
Is the HBG-200-60DA suitable for outdoor or wet-location lighting?
Yes, the IP67 rating means it is suited for wet and outdoor environments when the rest of the fixture system is rated appropriately. It also has an operating temperature range of -40°C to +85°C for demanding conditions. The metal case is used on 100W+ models in this series.
What is the difference between the HBG-200-36DA, HBG-200-48DA, and HBG-200-60DA?
The HBG-200-36DA is rated 198W with a 21-36V constant-current range at 5.5A. The HBG-200-48DA is rated 196.8W with a 28-48V constant-current range at 4.1A, while the HBG-200-60DA is rated 198W with a 36-60V constant-current range at 3.3A. The main differences are output current and supported constant-current voltage range.
