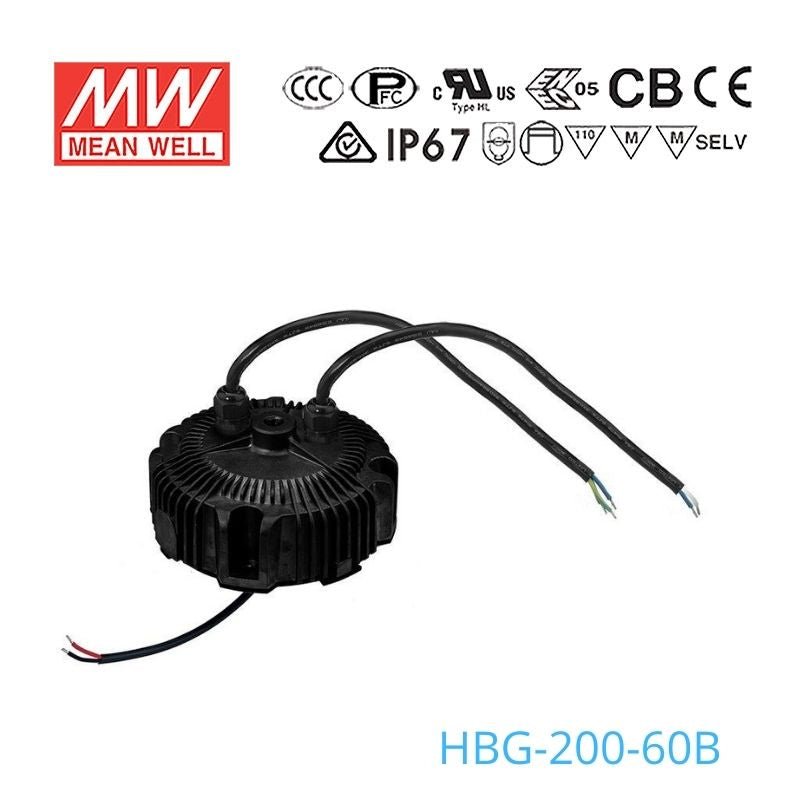

Mean Well HBG-200-60B Power Supply 200W 60V - Dimmable
Description
Description
Features
| Constant Voltage + Constant current mode output |
| Circular plastic housing with class I design |
| Built-in active PFC function |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC 127~417VDC |
| AC inrush current (max.) | Cold start, 85A at 230VAC |
| DC adjustment range | 65%~100% rated current |
| Over current protection | 95 ~ 108%; Constant current limiting, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+85°C |
| Safety standards | UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11, |
| Connection | SJTW 18AWG/SVT 18AWG |
| Dimension (DxH) | Refer to mechanical specification |
| Packing | 1.53Kg; 8pcs/13.8Kg/1.61CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-200-60B for a 60V high bay or low bay LED light?
Yes. The HBG-200-60B is a constant current LED driver rated for 198W with 60V output, 3.3A output current, and a 36-60V constant current range, which matches 60V-class high bay and low bay lighting systems built for constant current operation. Its circular housing is part of the HBG series design for high/low bay light use.
Is the HBG-200-60B suitable for outdoor LED lighting or wet locations?
It is suitable for outdoor or wet environments where an IP67 waterproof LED driver is required. The unit is rated IP67 and has an operating temperature range of -40°C to +85°C, so it fits demanding indoor or outdoor lighting conditions. Final suitability still depends on the rest of the fixture system meeting the same environmental requirements.
Can this LED driver be used for 60V LED signage or architectural lighting?
Yes, if the load is a constant current 60V lighting system operating within the 36-60V range and up to 3.3A. With 198W available output power and 90-305VAC input, it is suited to higher-power 60V LED signage or architectural lighting assemblies that need a dimmable constant current driver. It should not be used for loads outside that voltage and current window.
Can I use the HBG-200-60B with 60V LED strips?
It can be used only with 60V LED strips or linear lighting products that are designed for constant current operation within 36-60V at up to 3.3A. The driver provides up to 198W, so the sizing math is maximum strip power = 198W, then divide 198W by your strip rated power per meter to estimate maximum length. Check your strip rated power per meter and confirm it is a constant current product, not a constant voltage strip.
What is the difference between the HBG-200-36, HBG-200-48, and HBG-200-60 versions in the same series?
The HBG-200-36 models are rated 198W with a 21-36V constant current range, the HBG-200-48 models are rated 196.8W with a 28-48V constant current range, and the HBG-200-60 models are rated 198W with a 36-60V constant current range. Within the 60V group, the listed versions are HBG-200-60, HBG-200-60A, HBG-200-60AB, HBG-200-60B, and HBG-200-60DA. This product is the HBG-200-60B, the 60V dimmable version in that family.
Will the HBG-200-60B fit applications that need a wide AC input range?
Yes. It accepts 90-305VAC input, which makes it suitable for lighting systems used across a wide AC supply range. Buyers usually choose this when they need one constant current 60V LED driver platform for varied mains environments.
