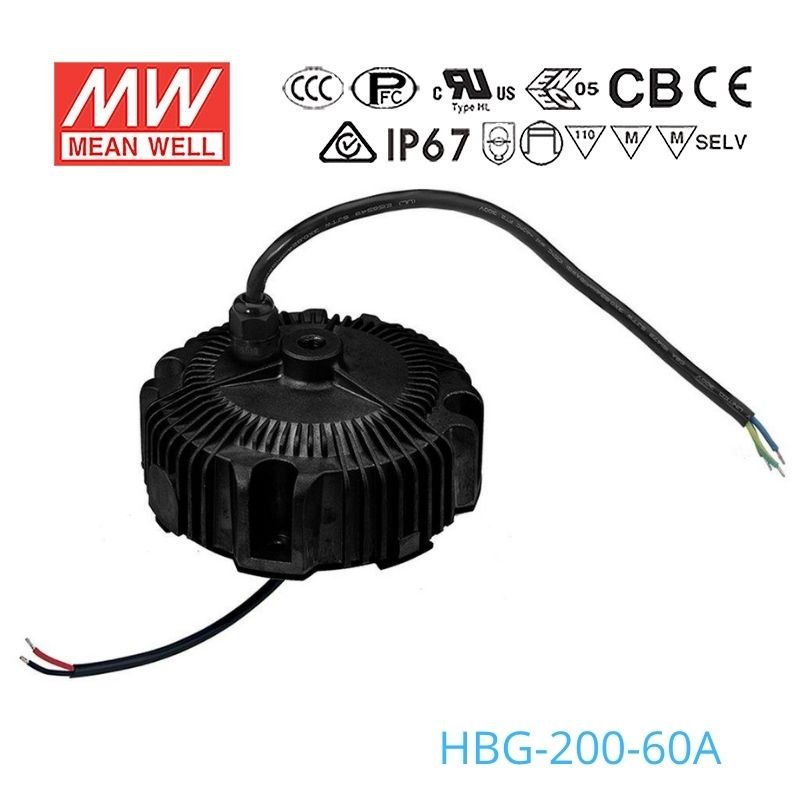

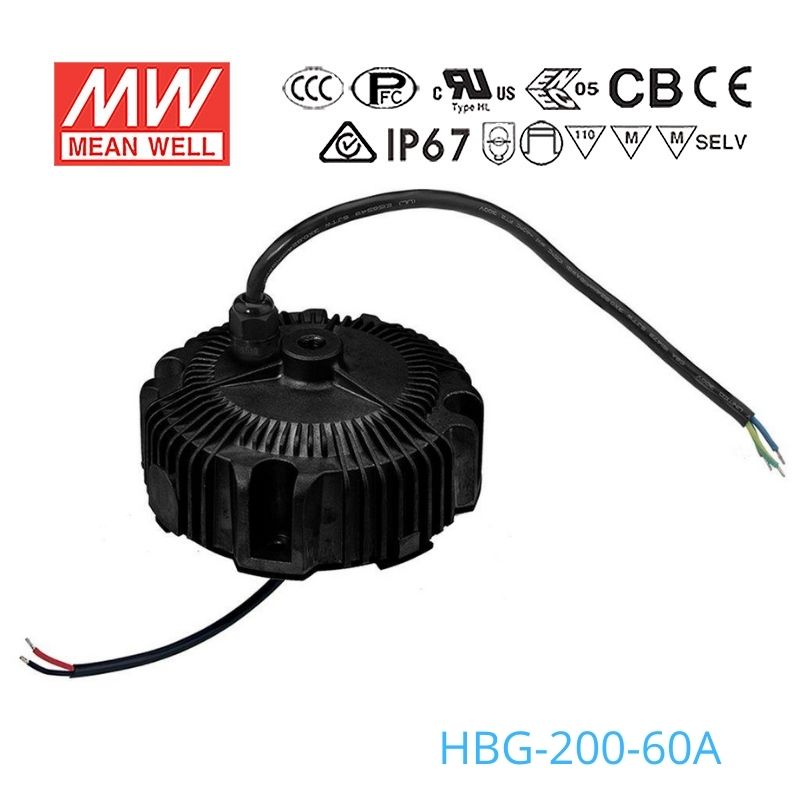

Mean Well HBG-200-60A Power Supply 200W 60V - Adjustable
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-200-60A for a 60V high bay fixture?
Yes, if the LED load is a constant current design that operates within 36-60V. This model delivers up to 3.3A and 198W, which fits 60V-class high and low bay lighting loads in that range.
Is this a good fit for 60V linear lighting in commercial or industrial spaces?
It can be used for 60V constant current linear lighting systems that stay within 36-60V and do not exceed 198W. That makes it suitable for higher-output linear fixtures compared with the 96W and 156W 60V HBG versions.
Can the HBG-200-60A be used for signage lighting in covered outdoor areas?
Yes, for 60V constant current signage lighting loads that stay within the 36-60V range and below 3.3A and 198W. Its IP65 rating supports water-resistant use, so it is better suited to covered or protected outdoor locations than full immersion or direct submersion exposure.
How much 60V LED strip can this driver handle?
The maximum power is 198W. The math is: maximum strip length = 198W divided by the strip's rated watts per meter, and you should confirm the strip is a 60V constant current product operating within 36-60V.
Is the HBG-200-60A suitable for wet or dusty environments?
It is rated IP65 water-resistant, which means it is suited to environments where dust and water exposure are expected but a fully waterproof rating is not required. The operating temperature range is -40°C to +85°C.
How does the HBG-200-60A compare with other 60V A-version HBG drivers?
Within the 60V A range, HBG-100-60A is 96W at 1.6A, HBG-160-60A is 156W at 2.6A, HBG-200-60A is 198W at 3.3A, and HBG-240-60A is 240W at 4A. All use the same 36-60V constant current range, so the selection mainly comes down to output power and current.
