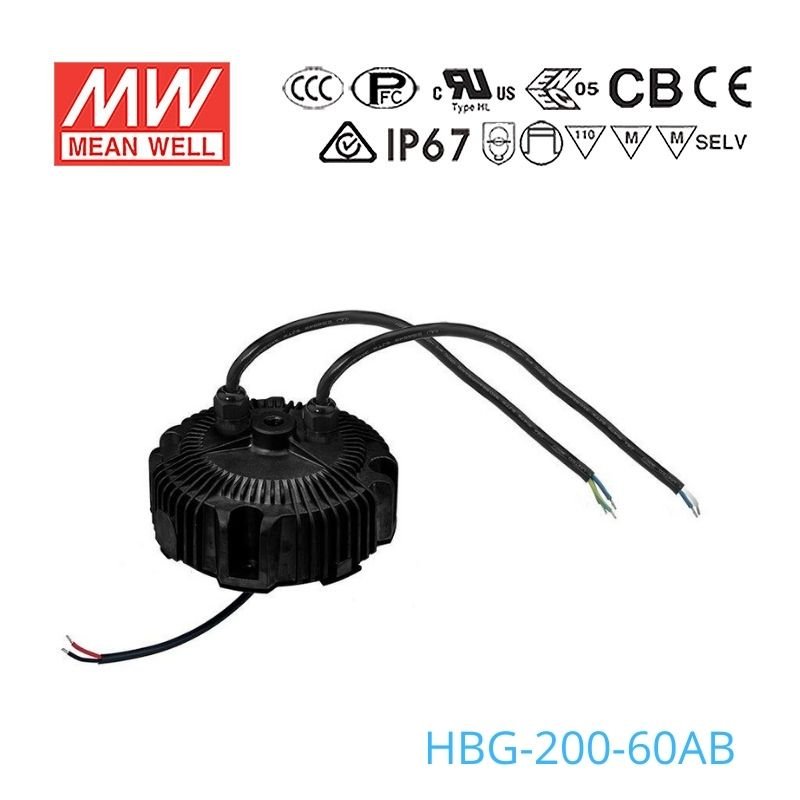

Mean Well HBG-200-60AB Power Supply 200W 60V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HBG-200-60AB Power Supply 200W 60V - Adjustable and Dimmable
The HBG-200 is a 200W Mean Well power converter (input range: 21.6~36V).
Key Features
- ✓ Input voltage range: 21.6~36V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: DALI STANDARDS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the HBG-200-60AB for a 60V commercial high bay fixture?
Yes, if the fixture uses a constant current LED load in the 36-60V range. This driver provides up to 3.3A and 198W, which fits higher-output 60V-class high bay assemblies.
Is this driver suitable for 60V linear lighting where dimming is required?
It can be used for 60V constant current linear lighting systems that operate within 36-60V and stay under 198W. The AB version is intended for applications where adjustable and dimmable operation is part of the product requirement.
Can the HBG-200-60AB work for covered outdoor signage lighting?
Yes, when the signage load is a 60V constant current system that stays within 36-60V, 3.3A, and 198W. Because this version is IP65 water-resistant, it is better suited to protected outdoor use than locations needing an IP67 waterproof rating.
How much 60V LED strip can the HBG-200-60AB run?
Its maximum output power is 198W. The math is: maximum strip length = 198W divided by your strip's watts per meter, and you should check that the strip is rated for 60V constant current operation within the 36-60V CC range.
Is the HBG-200-60AB OK for outdoor or damp environments?
It is rated IP65 water-resistant, so it can be used where dust and water exposure are expected but a fully waterproof enclosure is not required. The specified operating temperature range is -40°C to +85°C.
How does the HBG-200-60AB compare with other 60V AB models in the HBG series?
In the 60V AB group, HBG-100-60AB is 96W at 1.6A, HBG-160-60AB is 156W at 2.6A, HBG-200-60AB is 198W at 3.3A, and HBG-240-60AB is 240W at 4A. They all share the same 36-60V constant current range, with the main difference being output capacity.
